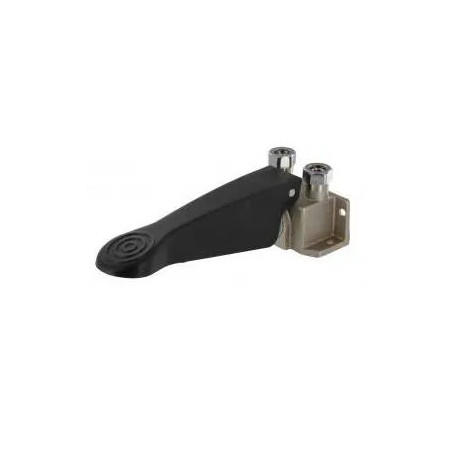

Foot switch Mono Presto sol 520
€118.38
Tax Included
(98.65 €HT + Ecotaxe €0.02HT)
Référence PRESTO : 23614
Emplacement magasin : B4-G-082
Washbasin PRESTO. Foot switch Mono Presto sol 520 reference 23614.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)

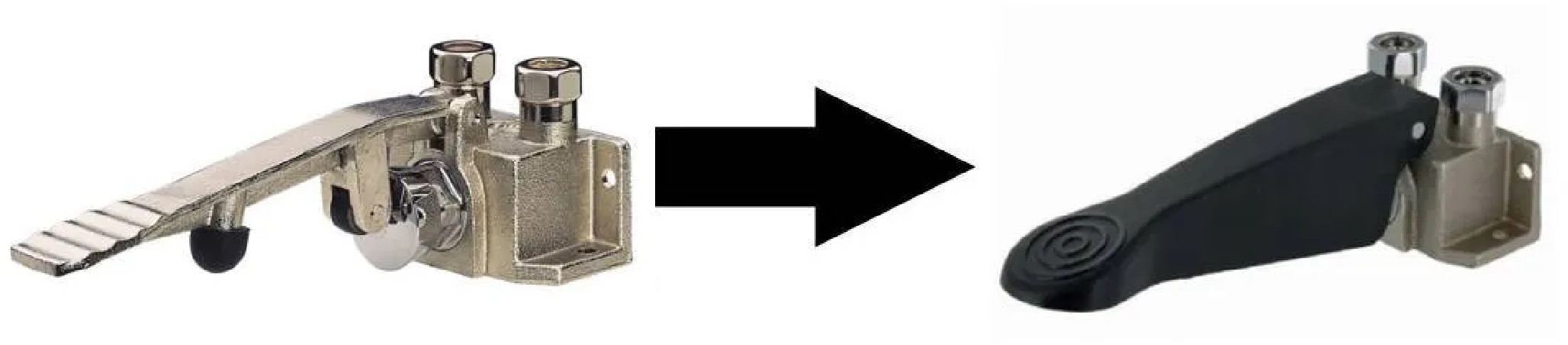

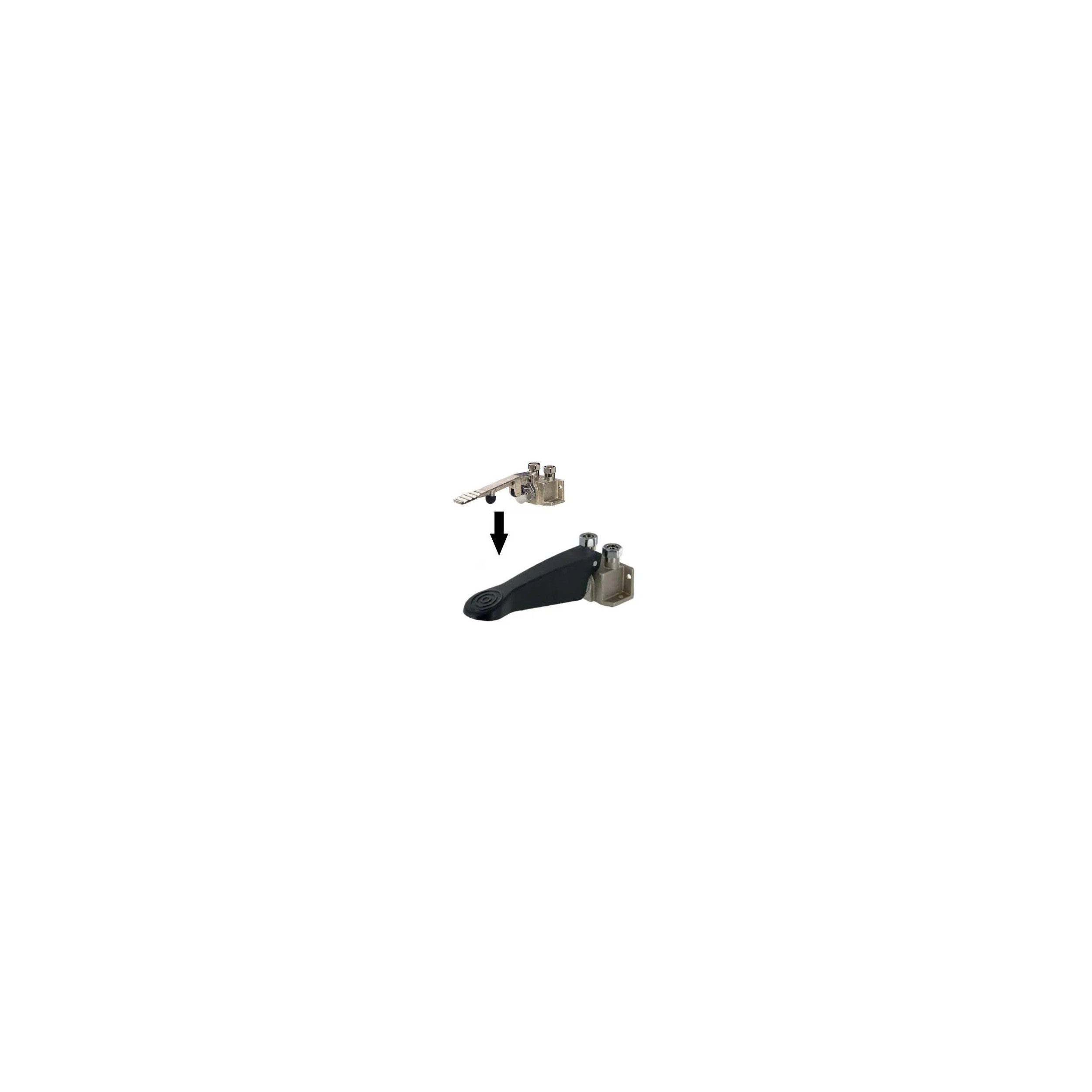

New Version !
Recommended operating pressure :
- 1 to 5 bar
Flow :
- 3 l/mn at 3 bars - 4 position adjustment
- Anti-water hammer device
Flow time :
- 3 to 5 seconds
Operation :
- By pressing the pedal
Hydraulic supply :
- G 1/2'' (15x21) male inlet in cold, hot or premixed water
Material and finish colour :
- Brass body and components with nickel-chromium treatment
- Technical polymer
Thermal resistance :
- This valve resists a temperature of 75°C for 30 minutes in thermal shocks
Delivered with :
- 1 Nut seal
- 1 Connection nut
- 1 Nut for 12x14 mm tube
- Installation instructions
Standards / Approvals :
- Acoustic class II
- Chrome plated brass body conforming to NF EN1982 / NF EN12164 / NF EN12165 standards
- Nickel-Chromium surface treatment according to NF EN12540
- Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
4 Items
Data sheet
- Weight (kg) :
- 1,2
- Warranty:
- 2 years
Specific References
- EAN13
- 3535770236146
- EAN-13
- 3535770236146
- Location
- B4-G-082
- Reference to display
- PRT23600
- Supplier reference
- 23614
