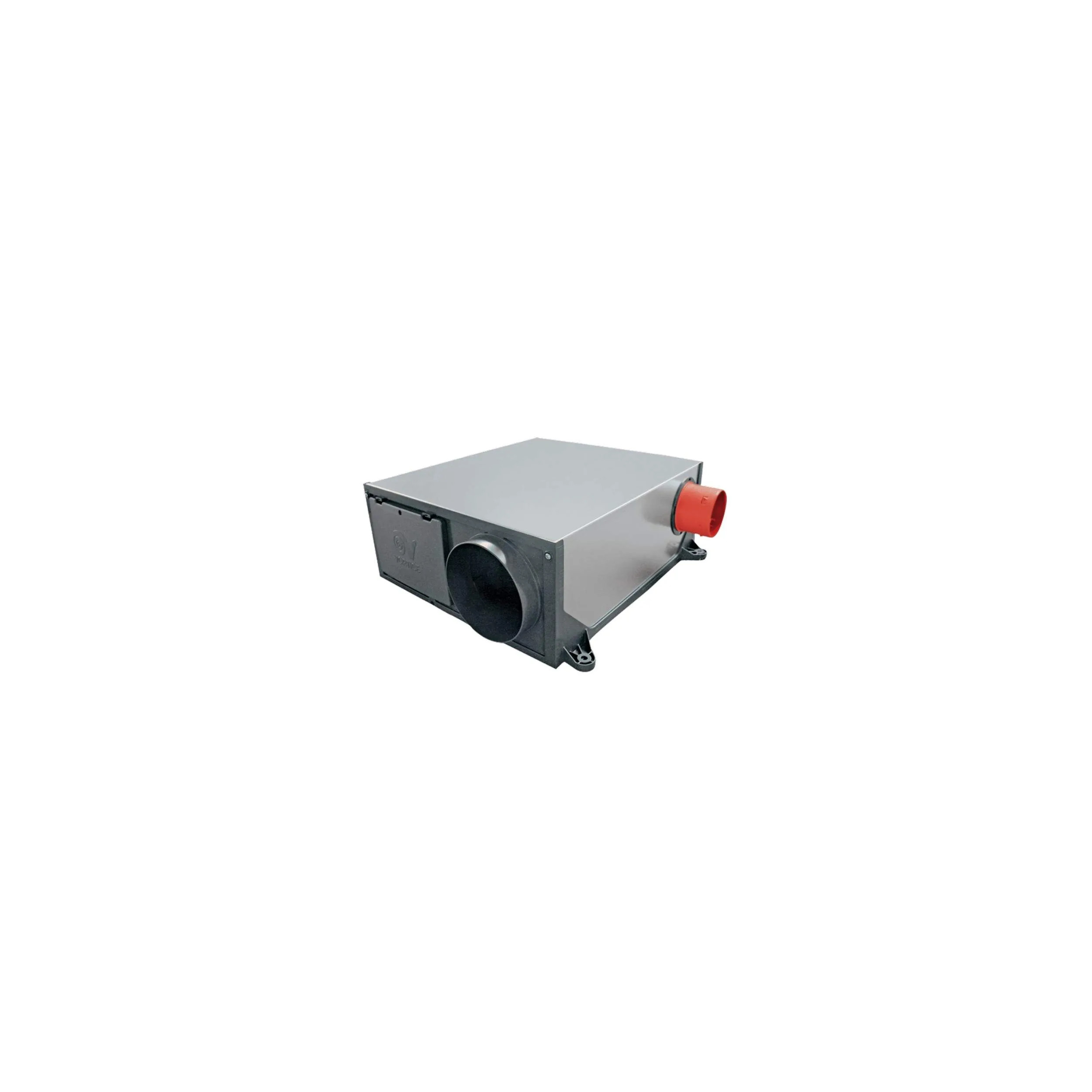

Variable hygro ventilation, 2 outlets, 2 plugs, extra-flat, VORT PLATT HCS
€280.16
Tax Included
(233.47 €HT + Ecotaxe €1.00HT)
Prix public: 279.17 € TTC (232.64 € HT)
Référence Vortice : 12108 - VVPL
Emplacement magasin : B1-G-060
Variable hygro ventilation, 2 outlets, 2 plugs, extra-flat, VORT PLATT HCS
VORTICE : 12108
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
| Frequency (Hz) | 50 |
| Insulation class | II. |
| IP | X4 |
| Max current absorbed at max speed (A) | 0,25 |
| Max current absorbed at min speed (A) | 0,21 |
| Maximum power input at maximum speed (W) | 56 |
| Maximum ambient temperature for continuous operation (°C) | 60 |
| Nominal diameter (mm) | 80-125 |
| Number of speeds | 3 |
| Power consumption at 1st speed (W) | 23 |
| Voltage (V) | 230 |
| Weight (Kg) | 5,4 |
| Airflow at 1st speed (l/s) | 48.8 |
| Airflow at 1st speed (m³/h) | 176 |
| Maximum air flow at maximum speed (l/s) | 95.2 |
| Max. air flow at max. speed (m³/h) | 343 |
| Maximum pressure at maximum speed (mmH20) | 41.9 |
| Maximum pressure at maximum speed (Pa) | 411.7 |
| RPM Max | 2610 Min |
| RPM Min | 1300 |
| Pressure at 1st speed (mmH20) | 26.6 |
| Pressure at 1st speed (Pa) | 261 |
| Sound power level Lw [dB(A) | 34.9 |
Data sheet
- Weight (kg) :
- 6.6
- Packaging:
- 1
- Warranty:
- 2 ans
- Origin:
- made in europe
Specific References
- EAN13
- 8010300121086
- EAN-13
- 8010300121086
- Location
- B1-G-060
- Reference to display
- AXEVMVVPL
- Supplier reference
- 12108 - VVPL
