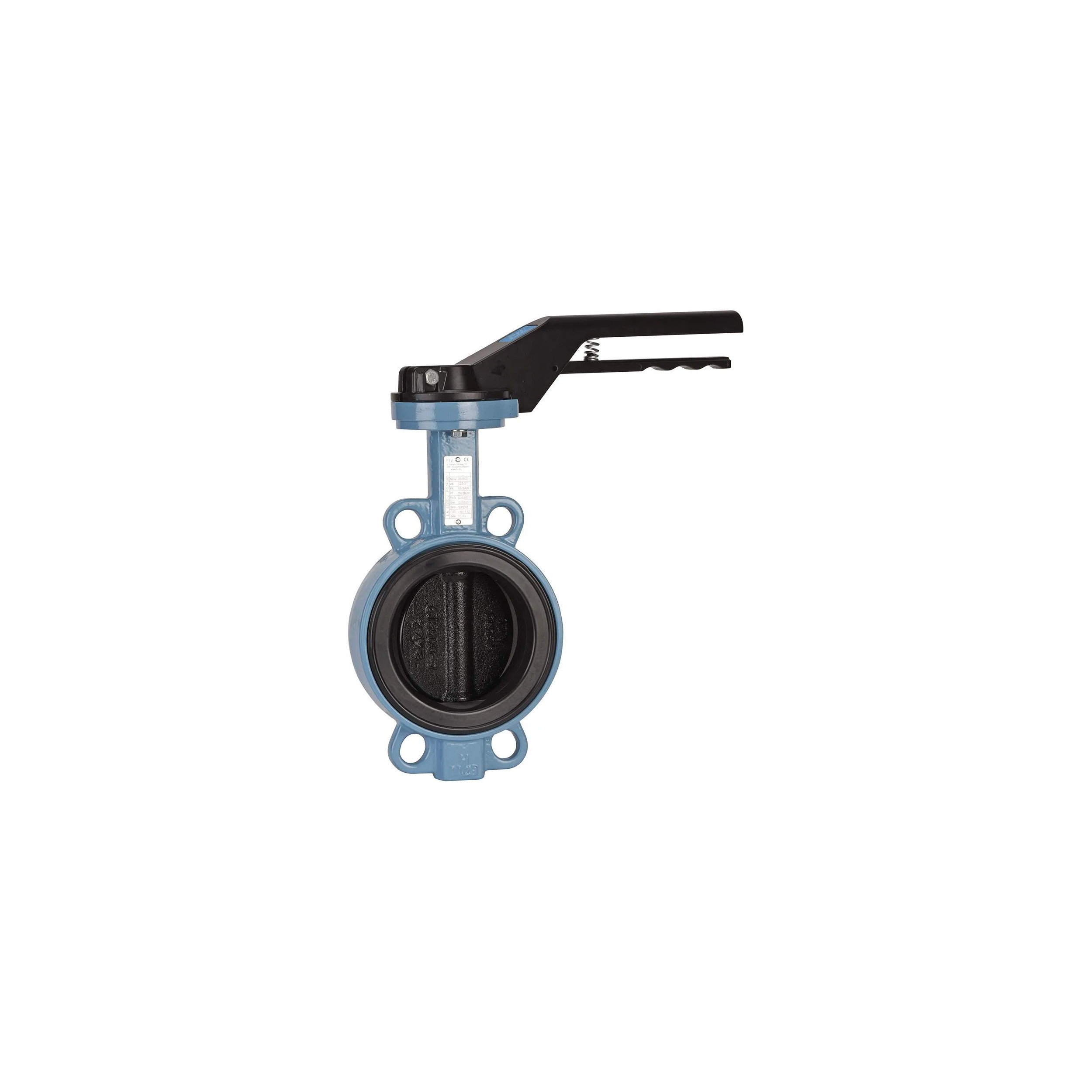

Butterfly valve with centering lugs DN 80mm FT/I/E - 1150 SFERACO reference 1150080.

Product type: Butterfly valve.

Description: Wafer butterfly valve TTV excellence range for shutting off or regulating drinking, cold or hot water systems.

Valve with Bureau Veritas Marine certification, 5-year warranty.

Body in ductile cast iron EN GJS-500-7, butterfly in stainless steel and liner in EPDM ACS. Can be fitted between PN10, PN16 or Class 150 flanges, depending on DN. Compatible with hazardous atmospheres, ATEX Zone 1&21 and Zone 2&22 on request up to DN100. Operated by stainless steel lever, handwheel reducer, chain reducer or with extension. The valve can be controlled by an actuator mounted directly on the ISO 5211 plate thanks to the square spindle (up to DN400).

FEATURES :

- Long neck for thermal insulation - Motorizable (ISO 5211 plate with direct mounting) - Centering lugs - Flange mounting PN10/16 from DN32 to DN400 and CLASS 150 (PN20) from DN40 to DN400 inclusive (beyond on request) - Flange mounting PN10 from DN450 - Through shaft - Dovetail sleeve from DN50, removable - Stainless steel butterfly up to DN100 inclusive - Cast iron butterfly coated with black rilsan +/- 300 microns from DN125 - 9-position handle, padlockable up to DN200, lockable in all positions and not padlockable from DN250 to 300 - Rilsan paint RAL 5024 thickness 250-300 microns - 75 mm neck extension ( option ) - 30x30 mm square for fountain key ( option ) USE : - Applications: cold water, hot water, drinking water - Not recommended for: Hydrocarbons, steam, gases, acids, oils, freon - Min. and max. permissible temperature Ts : - 20°C to + 110°C - Max. allowable pressure Ps: 16 bar up to DN300, 10 bar beyond RANGE: - Lever operated from DN 32 to DN 300 - Bare shaft from DN 350 to DN1400 - Can be operated by IP65 handwheel reducer ( Ref. 1197 ) from DN 32 to DN 1400 - Can be operated by IP65 chain reducer ( Ref. 1194 ) from DN 32 to DN 500 - On request, extension with special length ( Ref. 98665 ) - On request, CF8M stainless steel handle and stainless steel screws ( Ref. 9831250-9831264 ) CONNECTION: - Between flanges PN10-PN16 from DN 32 to DN400 and CLASS 150 (PN20) from DN40 to DN400 inclusive - Between flanges PN10 from DN 450 upwards

Supplier: SFERACO

Supplier number: 1150080
