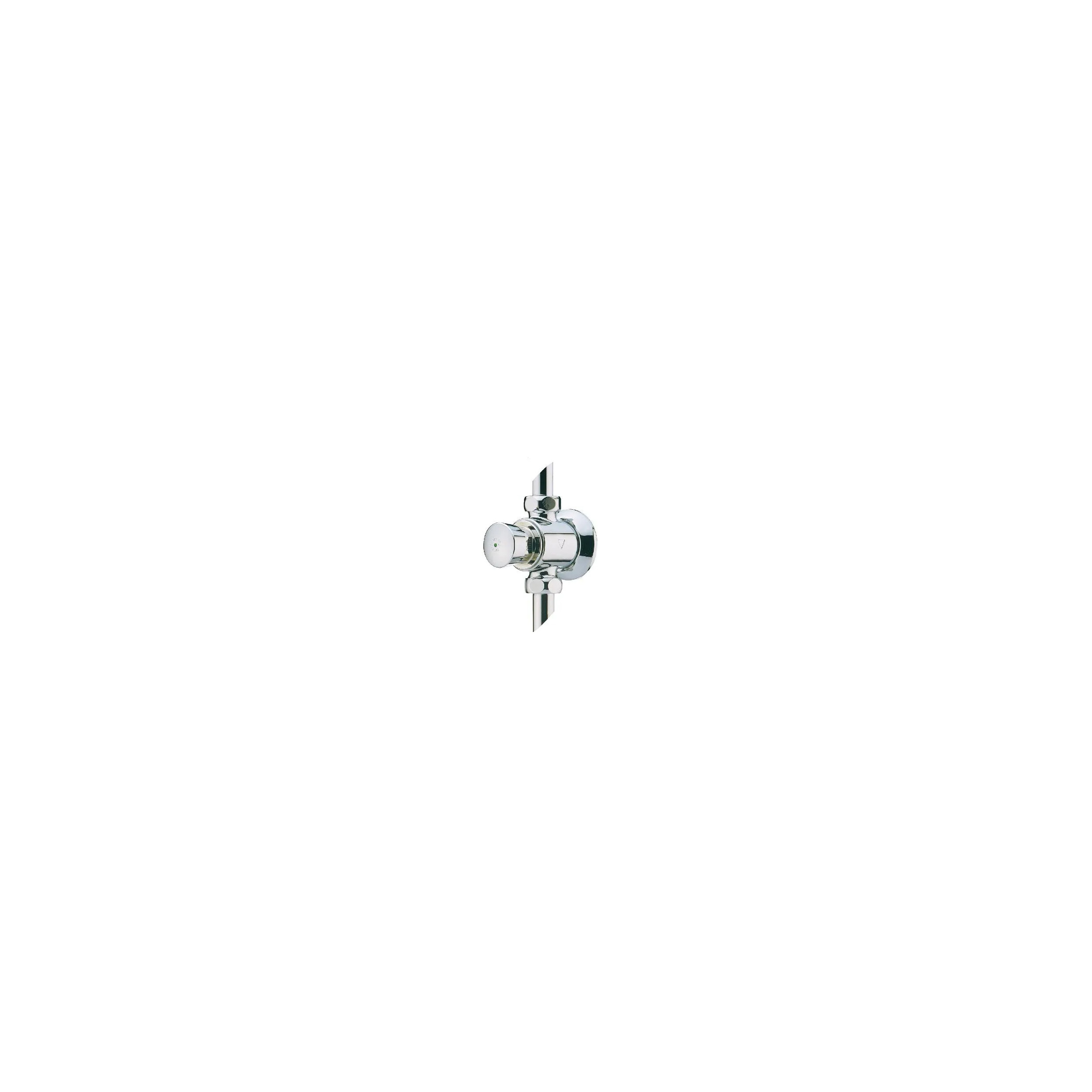

MM20x27 Presto 60 valve
€88.10
Tax Included
(73.42 € HT)
Référence PRESTO : 15000
Emplacement magasin : B4-G-084
Urinoir PRESTO. MM20x27 Presto 60 valve reference 15000.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
|
MM20x27 Presto 60 valve
OPERATION
The urinal faucet with siphonic action, large siphon or low-pressure installation, enables water flow at the push of a button. It closes automatically with a constant time delay. ADVANTAGESDesigned for intensive use |
|
|
Technical aspects :
Function:
This PRESTO 60 pushbutton valve for high-flow siphonic urinals or low-pressure systems triggers the flow of water by simply pressing the pushbutton, and closes automatically thanks to a pre-set constant time delay
Flow duration: 6 seconds (± 2s.) Flow rate :
30 l/min at 1 bar
Flow adjustment by ring (inaccessible to the user, avoiding splashing during rinsing)
Finish material and color :
Brass body and components with nickel-chromium treatment - Rosette integral with the faucet
Mechanism components made of polyacetal technopolymer (POM) for resistance to corrosion and scaling.
Nitrile/EPDM elastomer sealing
Standards / Approvals :
PRESTO 60 valve NF certified
Brass body and components in compliance with NF EN1982/CC754S, NF EN 12164 / CW614N, NF EN 12165 / CW617N
Nickel-Chromium surface treatment to NF EN12540 / Neutral salt spray resistance (NSS): 200 h to NF ISO 9227
Recommended operating pressure :
Minimum recommended: 1 bar / maximum recommended: 5 bar
Hydraulic supply :
Male inlet ¾ '' (20x27)
Male outlet ¾ '' (20x27)
Safety :
Non-rotating knob avoids any risk of premature wear
|
10 Items
Data sheet
- Main color :
- White
- Weight (kg) :
- 0.5
- Packaging:
- 1
- Main materials :
- Brass
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3535770150008
- EAN-13
- 3535770150008
- Location
- B4-G-084
- Reference to display
- PRT15000
- Supplier reference
- 15000
