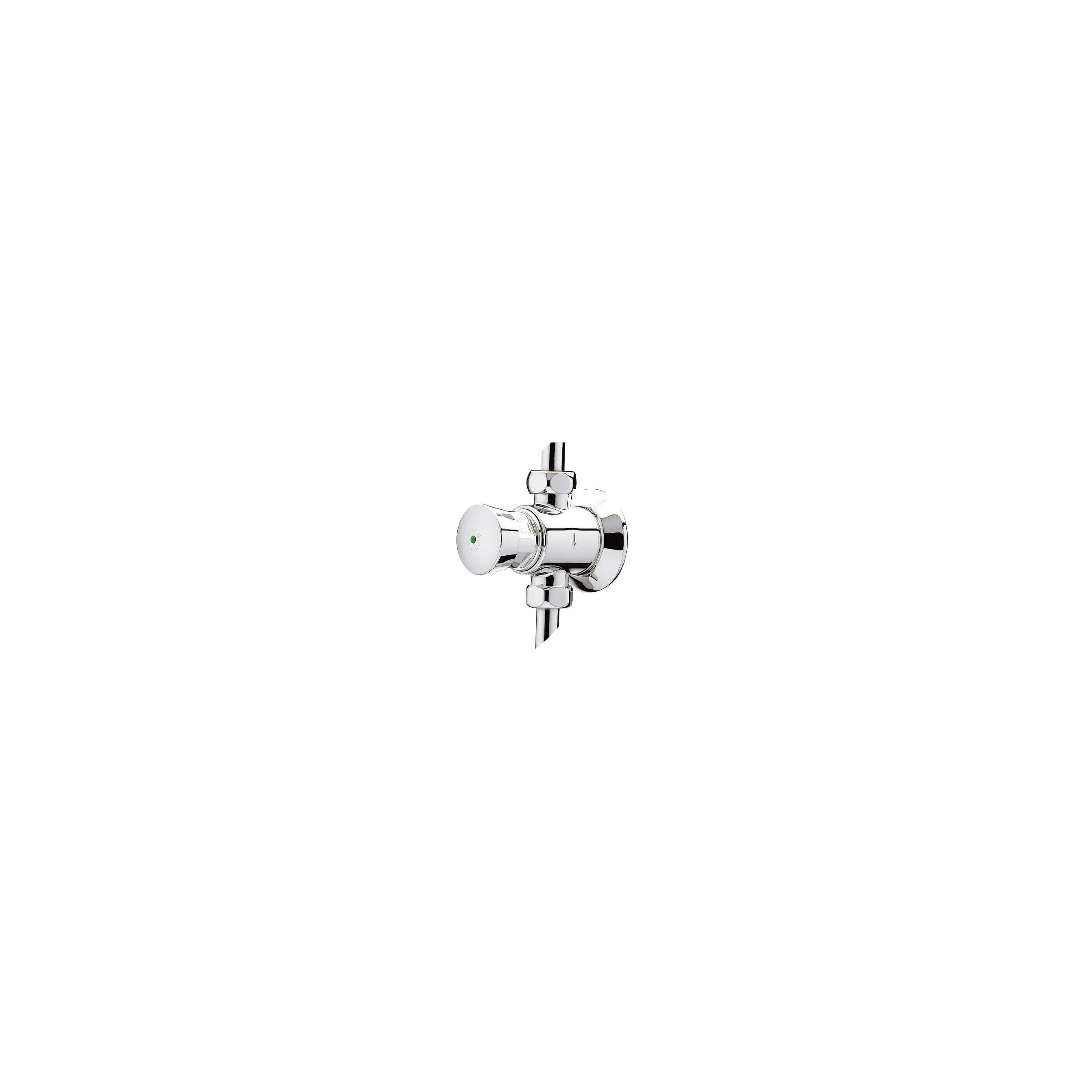

Valve MM15x21 Presto 12
€54.71
Tax Included
(45.59 €HT + Ecotaxe €0.02HT)
Référence PRESTO : 31001
Emplacement magasin : B4-G-084
Urinoir PRESTO. Valve MM15x21 Presto 12 reference 31001.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
| Valve MM15x21 Presto 12 OPERATION The urinal faucet allows water to flow at the push of a button. It closes automatically with a constant time delay. BENEFITSDesigned for heavy duty use | |
| Technical aspects : Function: This push valve for ordinary urinals or siphonic action and stalls allows the flow of water to be started by simply pressing the push button and closes automatically thanks to a factory-set time delay Flow time : 6 seconds (± 2 seconds) Flow : 9 l/mn at 1 bar (adjustable by the installer depending on the pressure) 4-position flow rate adjustment Material and finish colour : Brass body and components with nickel-chromium treatment Mechanism components made of polyacetal technopolymer (POM) ensuring resistance to corrosion and scaling. Sealing made of Nitrile/EPDM elastomers Standards / Approvals : Brass body and components according to NF EN1982/CC754S, NF EN 12164 / CW614N, NF EN 12165 / CW617N Nickel-Chromium surface treatment according to NF EN12540 Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227 Recommended operating pressure : Minimum recommended: 0.8 bar / maximum recommended: 5 bar Hydraulic supply : In-line power supply Male inlet ½'' (15x21) Straight outlet or ½'' male angle (15x21) |
6 Items
Data sheet
- Weight (kg) :
- 0,4
- Warranty:
- 2 years
Specific References
- EAN13
- 3535770310013
- EAN-13
- 3535770310013
- Location
- B4-G-084
- Reference to display
- PRT31001
- Supplier reference
- 31001
