Mechanical or electronic mixing valve on range
Solid, perforated or elbow control
Flow rate: Between 4l/min and 6l/min at 3 bar (flow rate in accordance with NF Medical 077-15)
Hydraulic supply: G 3/8".
Flow rate and temperature stop on the cartridge with 7 dual flow rate settings. Flow rate modification possible by removing the limiters
Height under spout 100 mm, 200 mm or 300 mm
Projection 150 mm, 200 mm or 250 mm
Equipped with star jetbreaker
The "plus" products
- Certified NF E.C.A.U.M medical classification: E00 Ch2 A1 U3
- Modul'Mix range: modularity of rooms and adaptability to needs Retrofitable and customizable
- Ergonomics: easy grip of the elbow control (for patients and technical staff) Hand hygiene: avoids manual contact
- Comfortable spout height and protrusion for the washbasin toilet
- Multifunctional cartridge: temperature limitation stop with 7 adjustment positions, double flow (hard point at 50% of opening).
- Flow rate between 4 and 6L/min at 3 bar - complies with the NF "Milieu Médical" standard; flow rate modification possible, in case of removal of the limiters, by adjusting screw between 4 and 20L/min.
- Fixed or swivel spout (as desired), removable with smooth interior: facilitates cleaning and disinfection, limits biofilm deposit. Star jet breaker: limits water spraying, no water retention.
- Easy and quick maintenance.
Model
- Hospital single lever mixers on range Elbow control
- Fixed or swivel spout, according to the technician's choice Height under spout: 200 mm
- Projection: 150 mm
- Multifunction ceramic cartridge Ø 40 : temperature limitation stop with 7 adjustment positions, double flow (hard point at 50% opening) Star breaker M24 X 100.
Flow rate
- Flow rate between 4 and 6L/min at 3 bar - complies with the NF "Milieu Médical" standard
- The flow rate can be changed by adjusting the screw between 4 and 20L/min when the limiters are removed.
Recommended pressure
- 3 bar - avoid pressure differences greater than 1 bar between the ECS and EFS. Minimum pressure: 1 bar.
- Maximum pressure: 5 bar.
Materials
- Smooth body, spout and operating element in polished chrome-plated brass.
Connection
- Hoses with SPEX stainless steel braided sheath M10X1, G'3/8 lock nut, Lg 650mm, with filter gasket
- baskets mounted in the hoses, limiting clogging. Flow rate limiter.
- Reinforced by a stainless steel rod

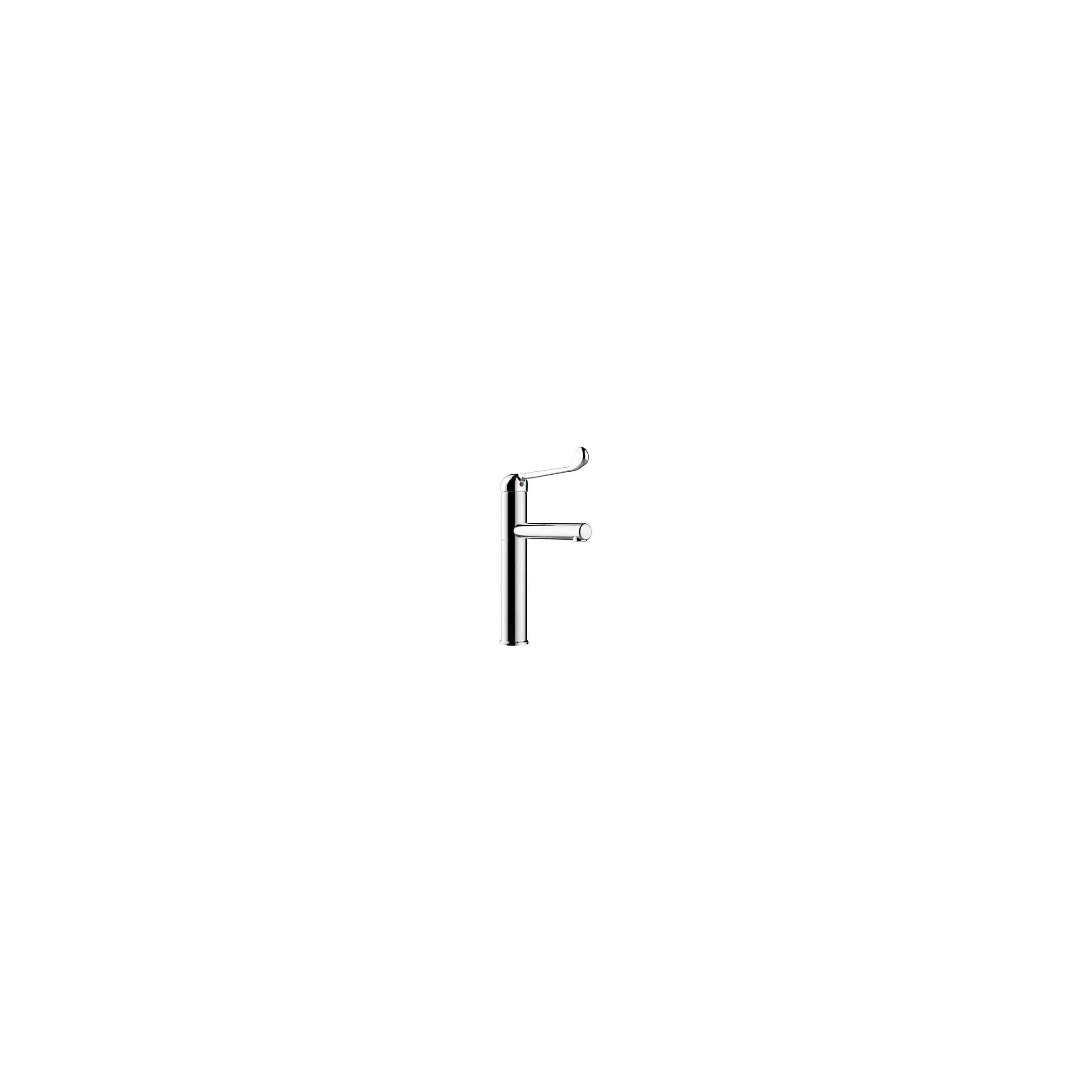

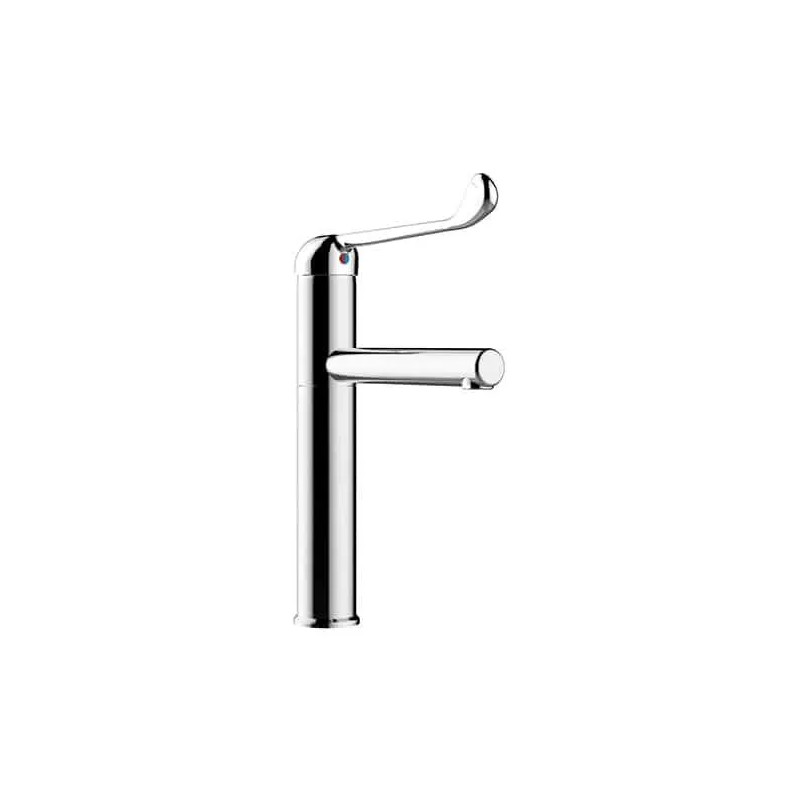

Presto single lever faucet with fixed spout
