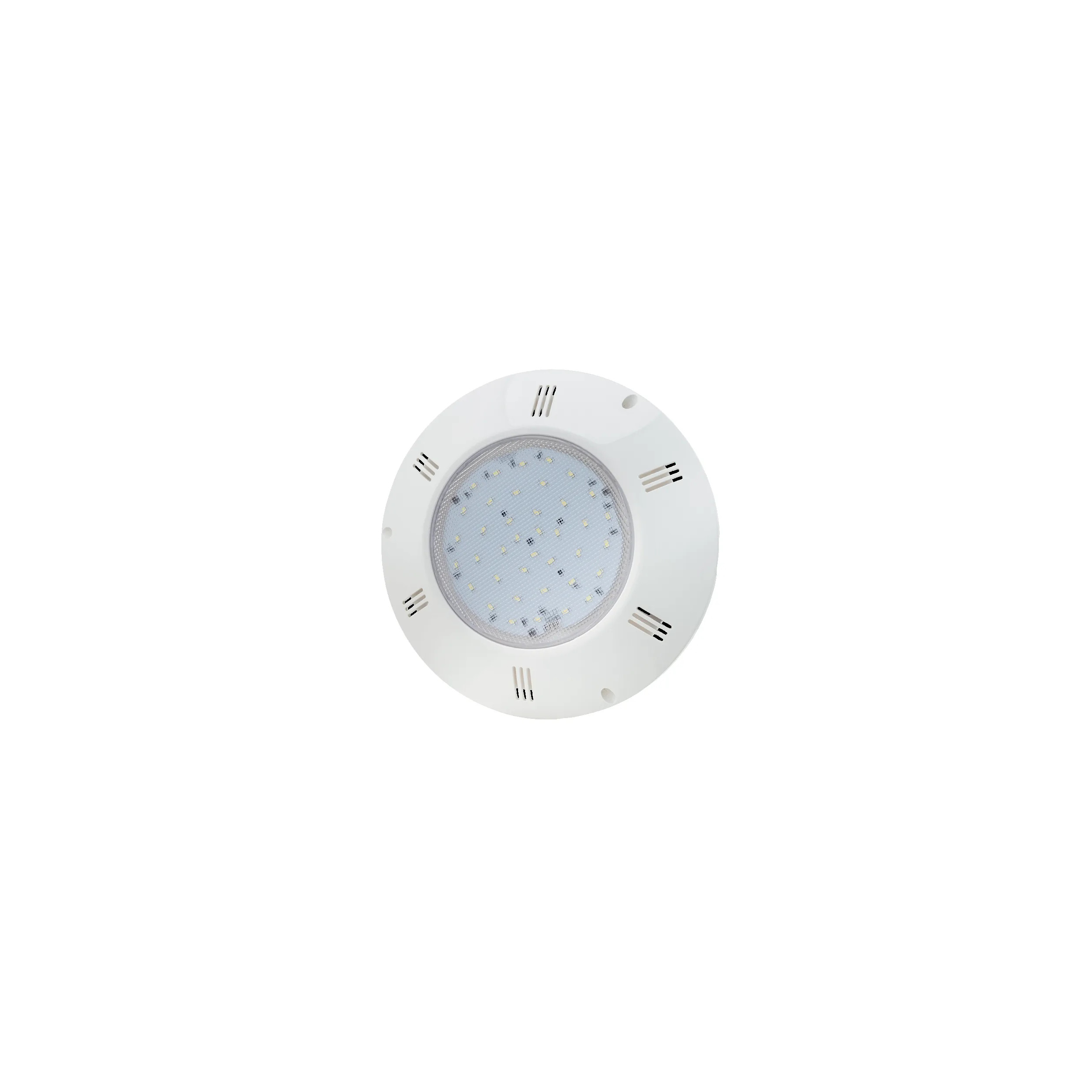

FLAT LED POOL LIGHT - COLOR LIGHT

Model: 502877
Type: 90 LED 3528 / 120°.
Color: 30R, 30V, 30B
Controller: On/Off and 433Mhz radio tel
Functions: 11 colors and 5 programs
Materials: support and optics in
polycarbonate (PC), ASA cover
Screwed into 1.5" brush socket
Connection: 2 metal screw terminals
H07RNF cable 2m, 2x1.5mm2

Contents of the package :

- Flat Led Projector
- 1 white crown
- 2 thermo connectors
- 2 joints
- 1 cable 2m H07RNF 2x1,5mm2
- Installation kit for inground pool
- 5 nylon screws (PA)
- Remote control
- 1 CR2032 battery
- Installation and Operating Instructions

Electricalparameter:

- Max instantaneous power: 16W*.
- Stabilized power >1h : N/A
- Supply voltage: ~12V(AC) 50/60Hz or ⎓20V(DC)
- PF max : 0,7 if ~12V(AC)
- PF max: 1 if ⎓20V(DC)
- Minimum power supply ~12V(AC) [(Pi /PF)+20%] : 28VA
- Electrical class: III
- EEI: N/A

Otherparameters:

- Protection class: IP68*.
- Product lifetime : 15 000h
- Switching cycles: > 100,000
- Use: for immersion in water only

Use a connection cable with a minimum cross-section of 2 x 1mm² to be adapted according to the distance between the connection box of the projector and the transformer as well as the absorbed power.
