(12.00 € HT)

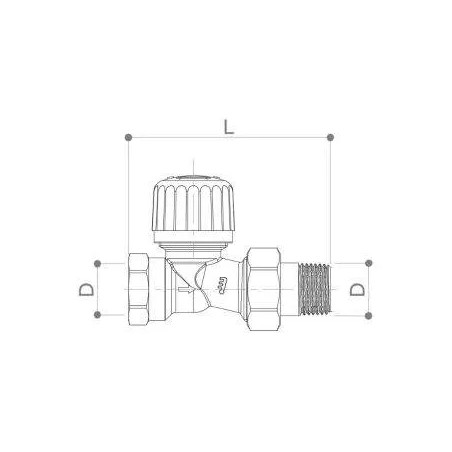

Straight thermostatic body PETTINAROLI. Straight thermostatic valve to screw 15x21 (1/2") reference 761P1/2.
Straight thermostatic valve for thermostatic heads or thermoelectric motors.
Thread diameter: 15x21 (1/2").
Length : 81 mm.
Tube connection: female thread.
Radiator connection: socket with coating.
Cable gland and O-ring can be changed without emptying the system.
Motor connection: M28 x 1.5 mm.
Pressure limit: 10 bar.
Max. differential pressure: 0.8 bar.
Recommended temperatures: 5°C - 110°C.
Nickel-plated.
O-Rings: EPDM-X.
ABS cap.
Max glycol : 30%.
Data sheet
