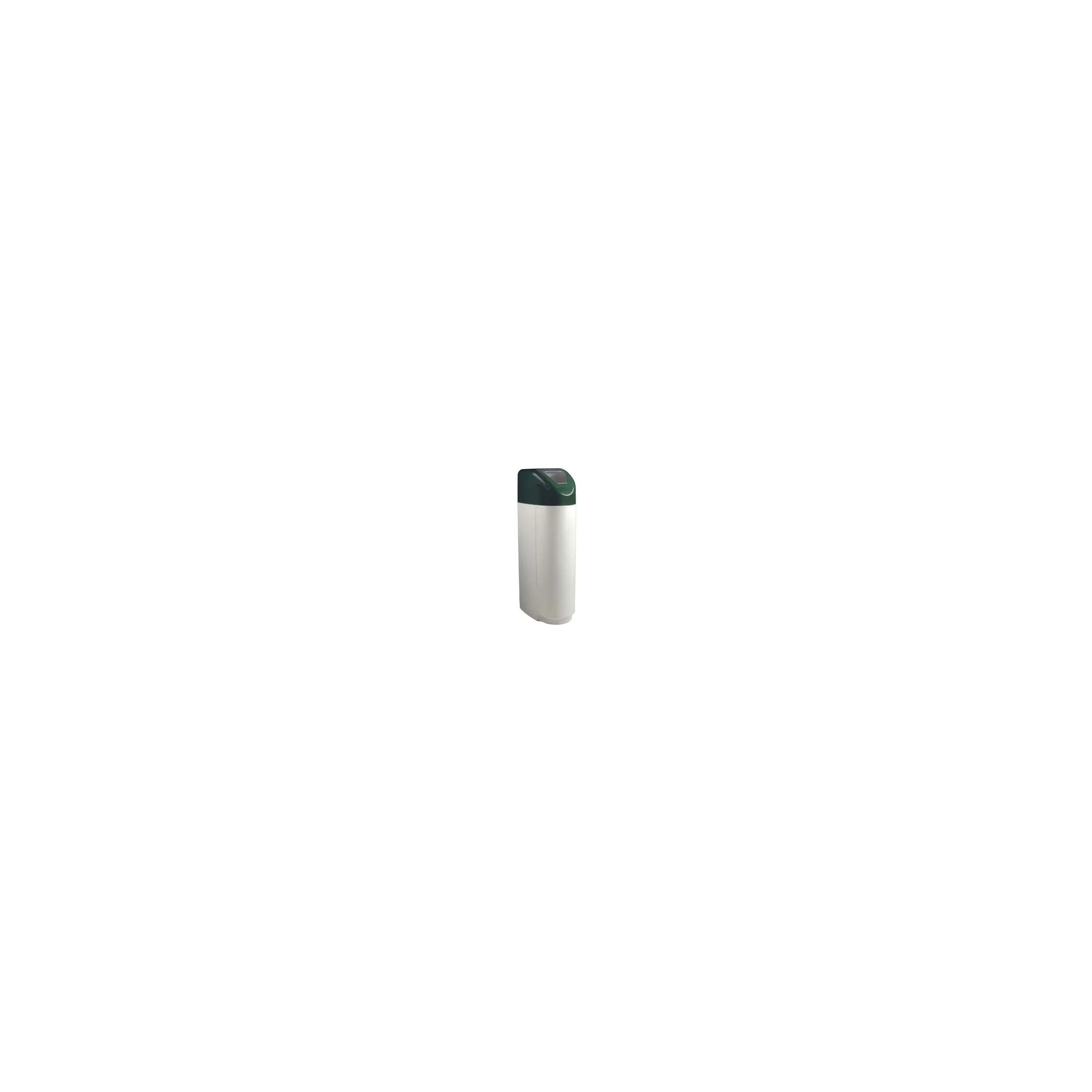

SNT10-5600 monobloc volumetric softener, 20 liters with bronze by-pass:
- Monobloc tank body in blown synthetic resin
- Removable cover with smoked translucent flap.
- Inspection and salt filling hatch.
- Salt capacity: ± 80 kg
- Brine suction and water filling regulator.
- Glass-fiber reinforced polyester bottle 8 x 35.
- Food-grade softening resin charge: 20 liters.
- Brine suction pipe with high and low strainer.

- Exchange capacity for 20L: 100°F TH/m³

- Volume of water treated between each regeneration according to hardness
TH20°F TH30°F TH40°F TH50°F TH60°F TH70°F
20L :5,00 m³ 3,30m 3 2,50 m³ 2,00 m³ 1,70 m³ 1,40 m³

- Maximum flow rate 20 L: 2.40 m³/h.

- Salt consumption per 20 L regeneration: 3.0 kg.

- 5600 volumetric valve - Resin regeneration cycle activated according to actual system water consumption.
- Minimum working pressure: 2 bar.
- Maximum working pressure: 7 bar.
- Operating temperature: 2 to 35°C.
- Bronze bypass: Ø 3/4" (20/27).
