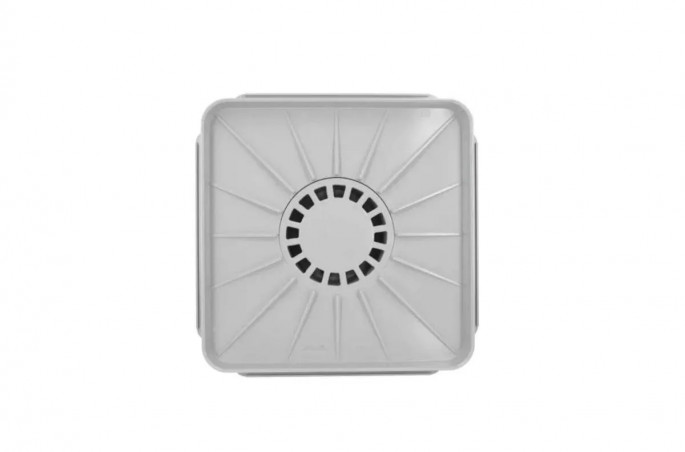

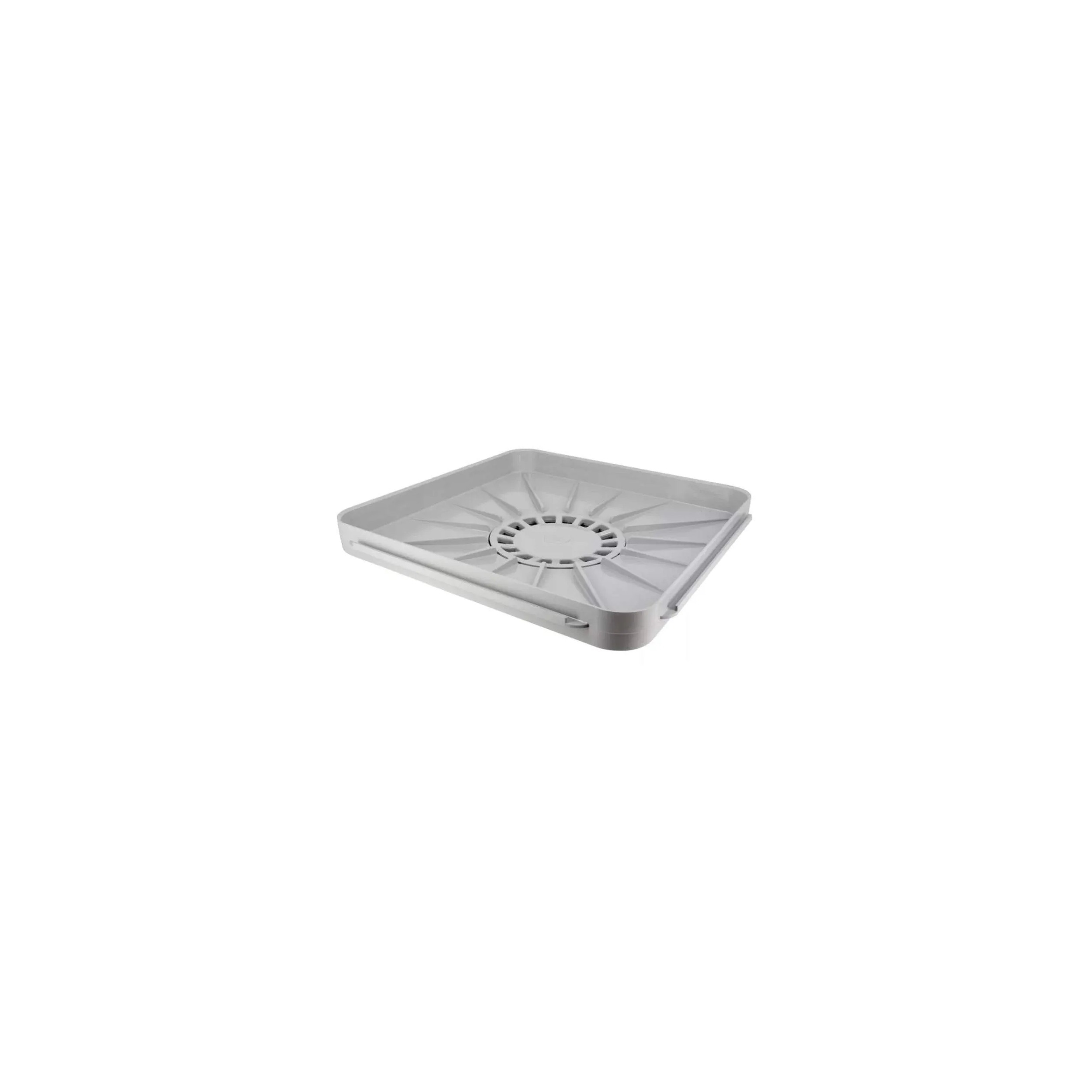

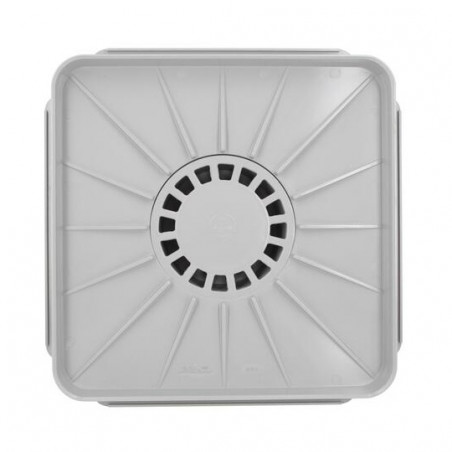

Siphon PVC 40 x 40 cm with adapter, light grey NICOLL reference REL

- Type of product: drain trap, drain tray.

- Description:

PVC 40 x 40 cm siphon tray with adapter, light gray.

Provides a solution to the problem of taps (basements, garages, etc.).

Avoids the water splashes inevitable with cement grooves or floor drains flush with paving.

Injected in rigid PVC, the shower tray consists of: a receptacle with a ribbed bottom that provides a firm footing for objects resting on it while ensuring central drainage, a bell grid ensuring siphoning and an adapter for Ø 80-100 male and 63/90 female outlets.

- Installation:

Depending on the pipe layout, connect to a vertical pipe or Ø 63 elbow (although the adapter allows connection to Ø 80-90 and 100).

Glue in place, carefully lining the underside of the shower tray to ensure a firm footing.

Pull the screed or slab flush with the top edges of the tray, whose lateral ribs ensure a perfect grip.

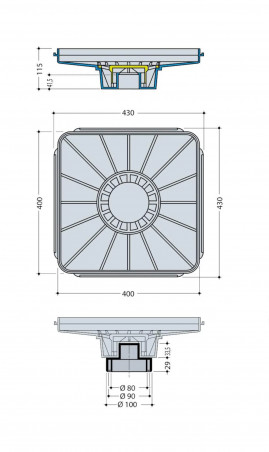

- Technical specifications:

Male diameter: 80 - 100mm.

Female diameter: 63 - 90 mm.

Height: 115 mm.

Length: 400 mm.

Width: 400 mm.

Type of assembly: adhesive.

Material : PVC.

Color: light gray.

Shape: square.

ACS - Contact Eau Potable : without.

- Supplier : NICOLL.

- Reference : REL.
