LIBERTY 140 sink unit, 3 doors

Technical specifications

- Finish: White, 4 edges
- Length: 1400 mm
- Height: 600 mm
- Overall depth: 586 mm
- Useful internal depth: 406 mm
- Height of the bottom: 270 mm

- Assembly: by self-tapping screws
- The shelf: (thickness 12 mm) is fixed in the side by 2 pins and rests at the back on a steel cleat
- Hinges: invisible with leaf spring return
- Opening: 90°, metal hinges, zinc-plated, 3 settings

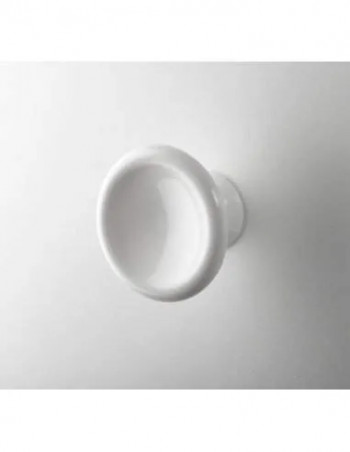

- Handle: White PVC knob, screw fixing
- Crawl space: 151 mm
- Door height: 600 mm
- Total height (cabinet + sink): 850 mm
- Headband: 22 mm thick, white melamine, edged in 2 lengths
- Skirting board : thickness 16 mm, white melamine, edged 1 length
- Bottom, shelf and floor: 12 mm thick, white melamine, 1-length edging
- Stabilization and adjustment: 4 or 5 cylinders, maximum adjustment height: 15 mm

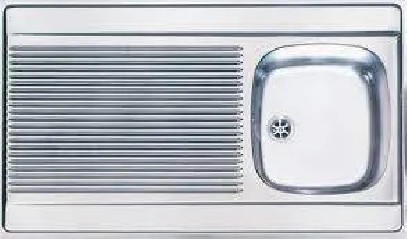

Sink sold separately.
