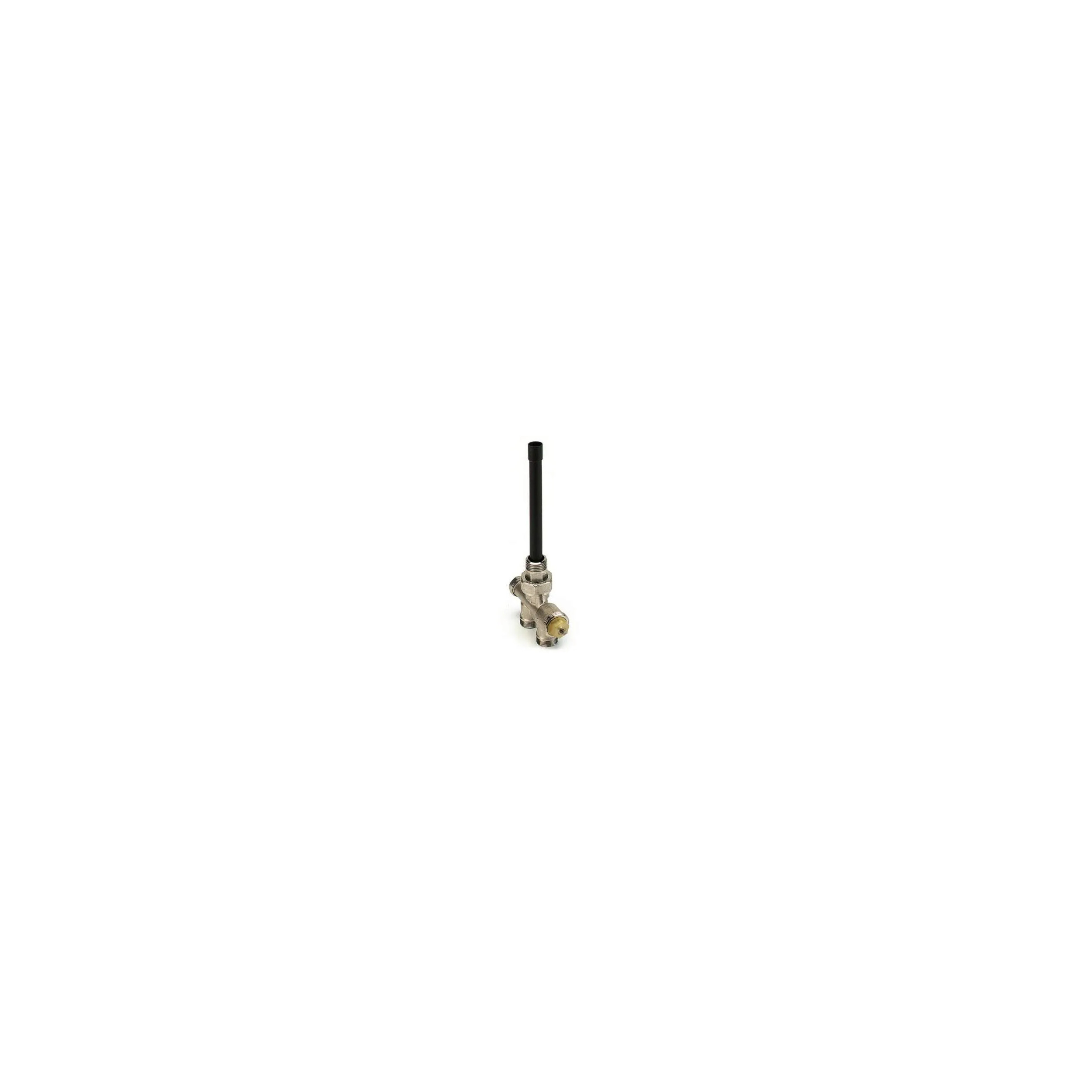

M28 single-pipe vertical supply valve, 35mm centre distance
€99.62
Tax Included
(83.02 €HT + Ecotaxe €0.01HT)
Référence COMAP : 445422
Emplacement magasin : B1-G-037
Comap single-tube dispenser only COMAP. M28 single-pipe vertical supply valve, 35mm centre distance reference 445422.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
4-way valve, single-pipe, thermostatically controlled, vertical, to supply towel radiators.
Benefits:
- Isolation allowing the removal of the radiator with the key ref. 334.
- Marking "0.5" on the body designating the alpha coefficient of supply of the 50° radiator channel%factory preset
- Thermostatic mechanism (Kv 0,95)
- Interchangeability of thermostatic mechanisms without draining the system by means of the COMAP tool ref. 5831
Materials Body: Brass
Seals : Ethylene propylene
RTH mechanism
Axis: Stainless steel
Cap : ABS
Valve: EPDM
Specifications For standard water heating applications under the following conditions. Maximum pressure 10 bar. Delta pressure 0.6 bar. Maximum temperature 110°C. Vertical feed valve M28. Centre distance 35mm.
4 Items
Data sheet
- Weight (kg) :
- 0,5
- Threads :
- 1/2" - 5" (15x21 - 125x137)
- Main materials :
- ABS
Inox
Laiton - Warranty:
- 2 years
Specific References
- EAN13
- 3430650058583
- EAN-13
- 3430650058583
- Location
- B1-G-037
- Reference to display
- COMRO445422
- Supplier reference
- 445422
