5-way shower fitting for thin walls of full shower enclosures, totems or shower columns.
Also suitable for boats, campers, chalets, mobile homes.
Access to wear parts (mechanical cartridge and reversing cartridge) from the front of the valve without removing the valve.

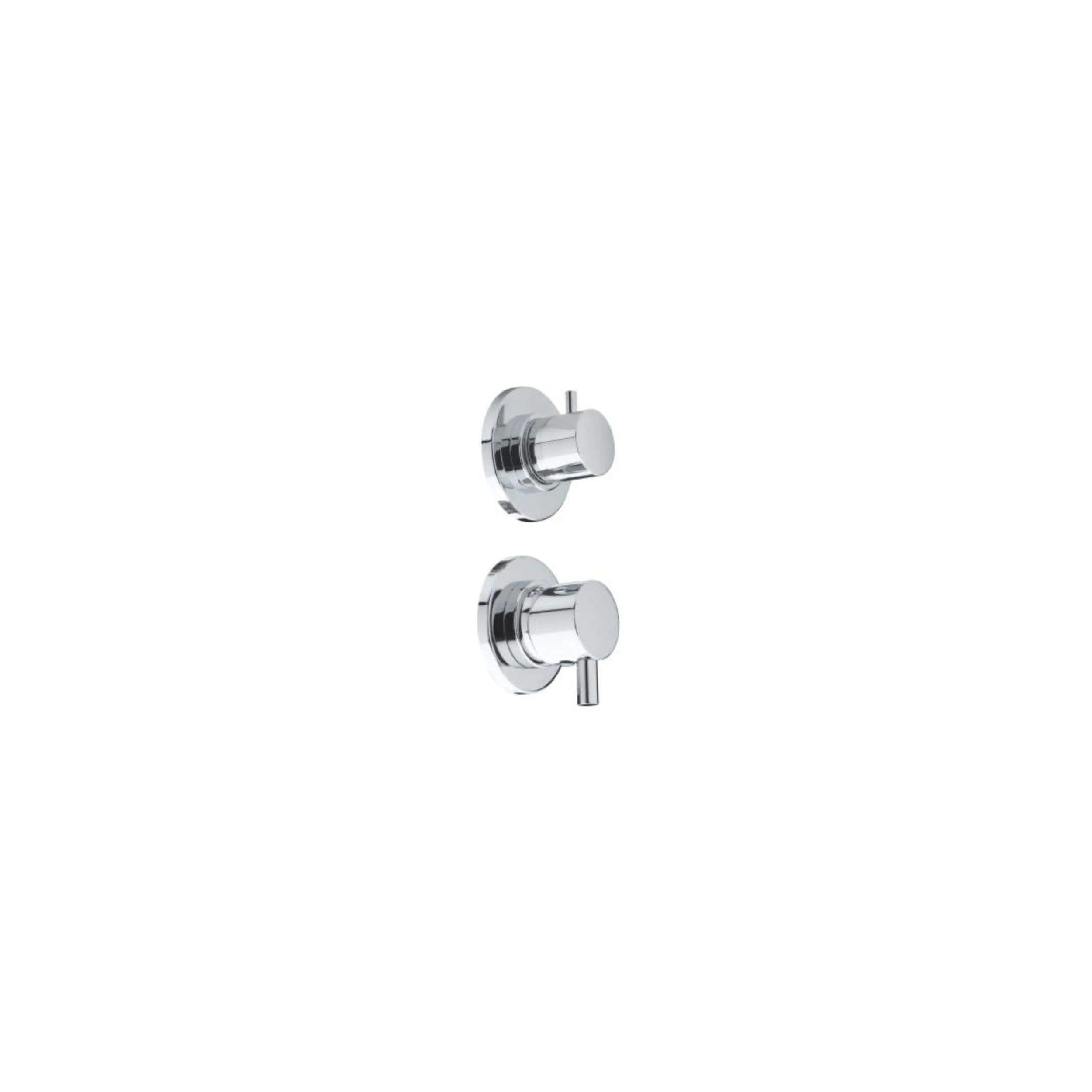

Chrome plated single lever shower enclosure mixer with 5 outlets.
- Five output changeover switch, with 10 positions (5 main and 5 mixed).
- Chrome finish.
- Short metal Lotto shifters.
- Cartridge for ceramic disc mixer.
- Reversing cartridge with ceramic discs.

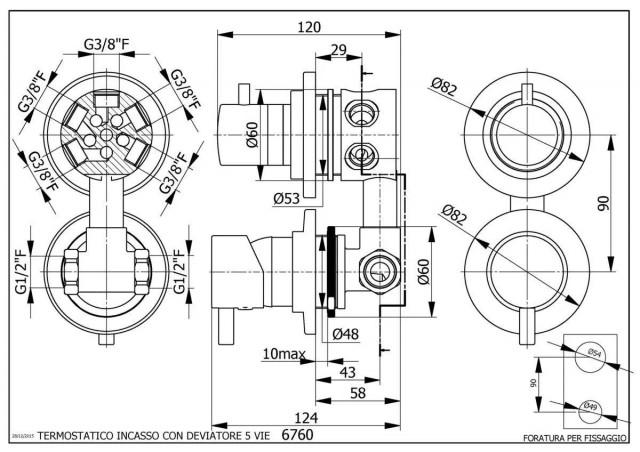

- Two 1/2" (15/21) female side feeds.
- Five 3/8" (12/17) female outlets ideal for head, hand, side, lumbar and back showers.
- Fixed centre distance of 90 mm.
- Fixing supplied for thin wall max. thickness 10 mm.
- Clamping nut ring in brass, for the reversing valve external diameter 60 mm.
- Brass ring nut, for the mixing valve external diameter 60 mm.
- Two chrome-plated rosettes in ABS.
- Reversing rose without pictograms.
Cartridge diameter (mm) | 40 |
Functions | 5 functions |
Type of drilling | 2 holes |
Type of installation | built-in |
Finish | Chrome |
Manufacturing | ITALY |
Material | Brass + Abs |
Fitting type | Mechanical mixing valve |
