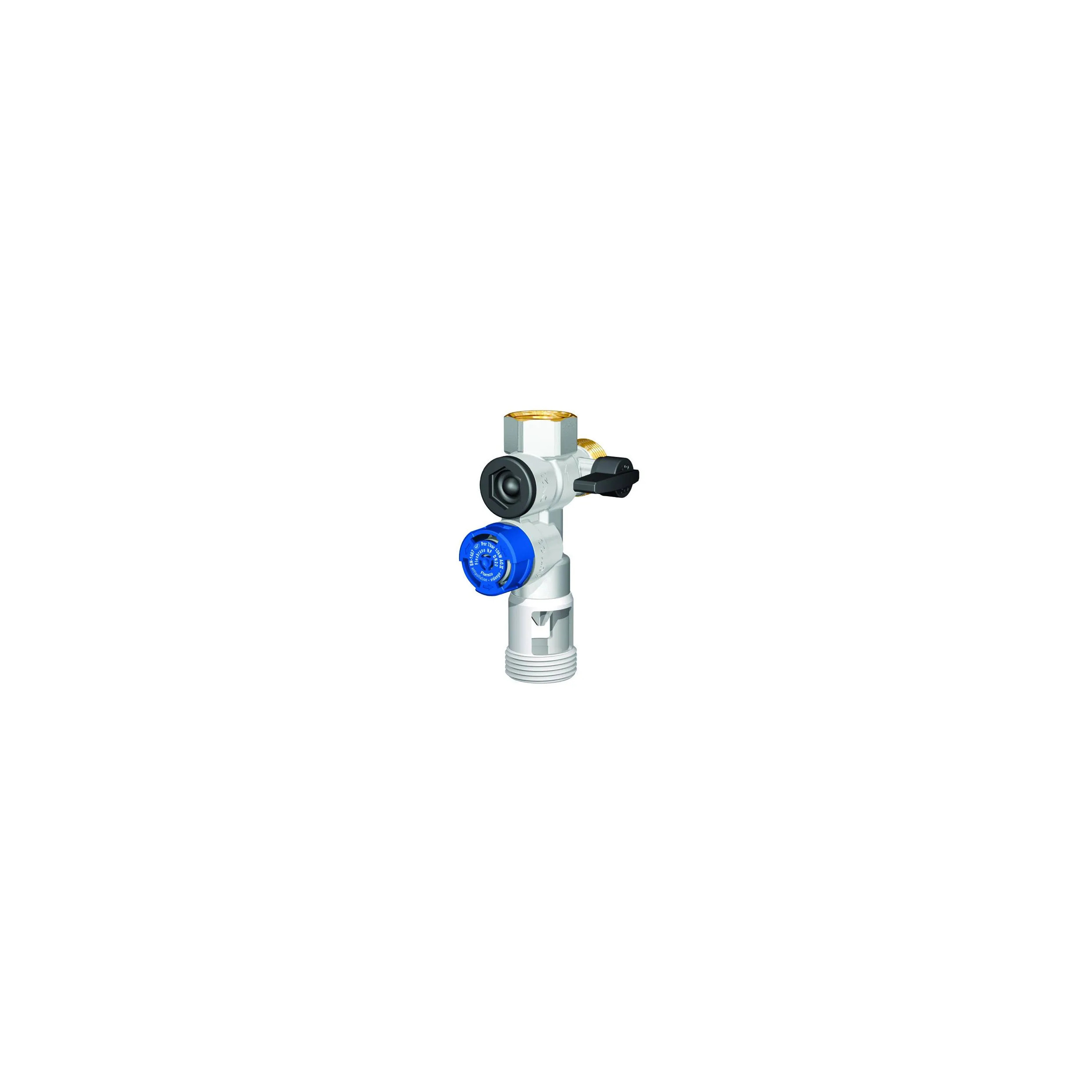

FLAMCO 20x27 safety group: Straight flow, vertical connection

Safety group: Straight flow, vertical connection

FLAMCON FLEXCON - 28360

General :

This kit includes a Flexbrane safety group and instructions (optional fitting only).

Application:

• 20x27
• Can be mounted on any water heater (For maximum capacity, see the KW marking on the button)
• Flexbrane is used to prevent excessive pressure in the water heater
• Flexbrane is recommended in situations where de-zincing or de-leading may occur

Security:

Installation :

• Maximum system pressure: 5.25 bar
• Minimum system pressure: 0.2 bar
• The Flexbrane must be mounted directly on the cold water supply line of the water heater, possibly via a dielectric insulation fitting, with the device always pointing vertically downwards.
• The water supply line must be connected to the supply connection according to the arrow

• The drain line:

1/2 " : minimum diameter 20 mm

3/4": minimum diameter 25 mm

1": minimum diameter 25 mm

-> can be connected directly to the Flexbrane:

• Thanks to the integrated cut-off device
• Or on the siphon directly connected to the safety group

• Apply sealing tape to the Flexbrane and to the reduction fitting

First use:
