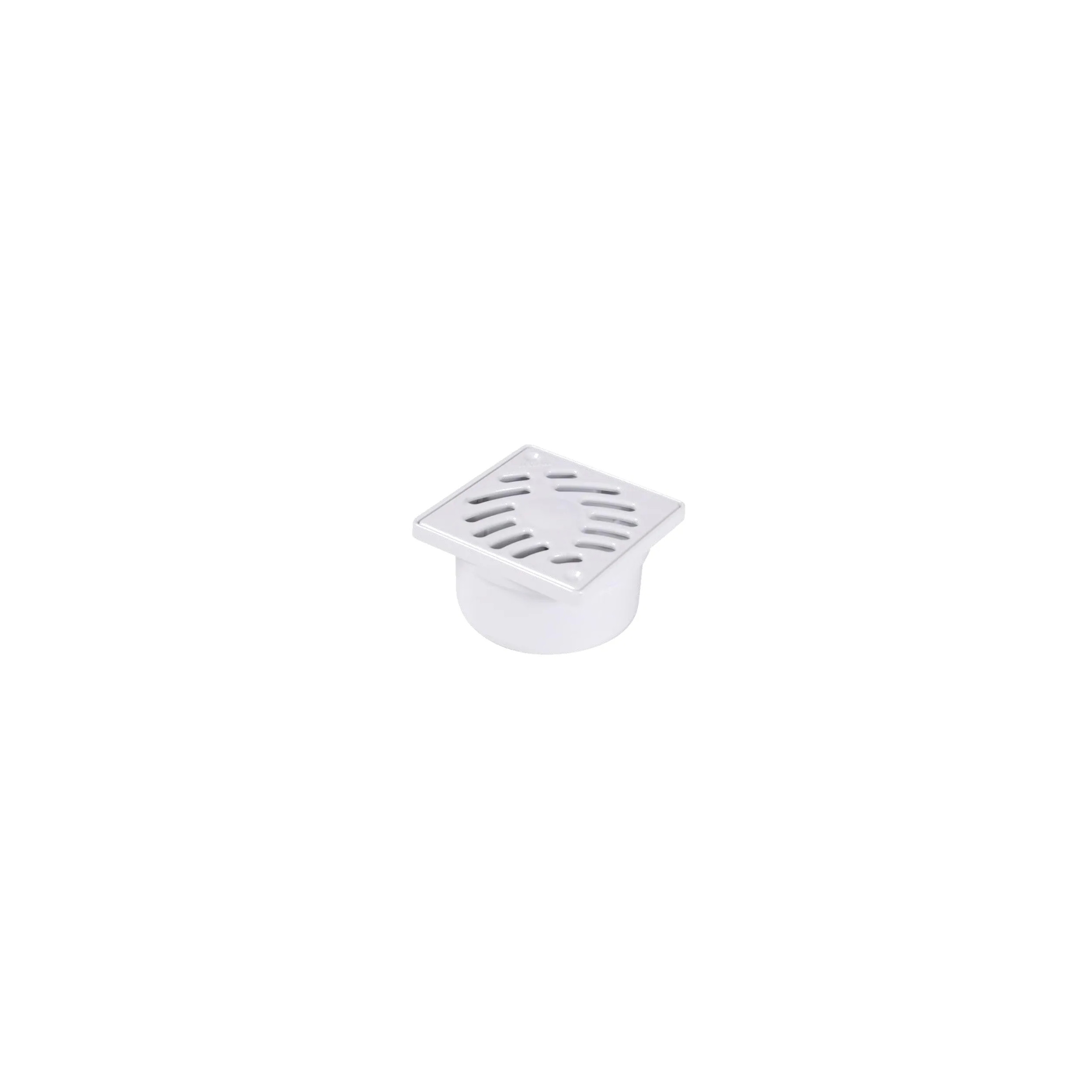

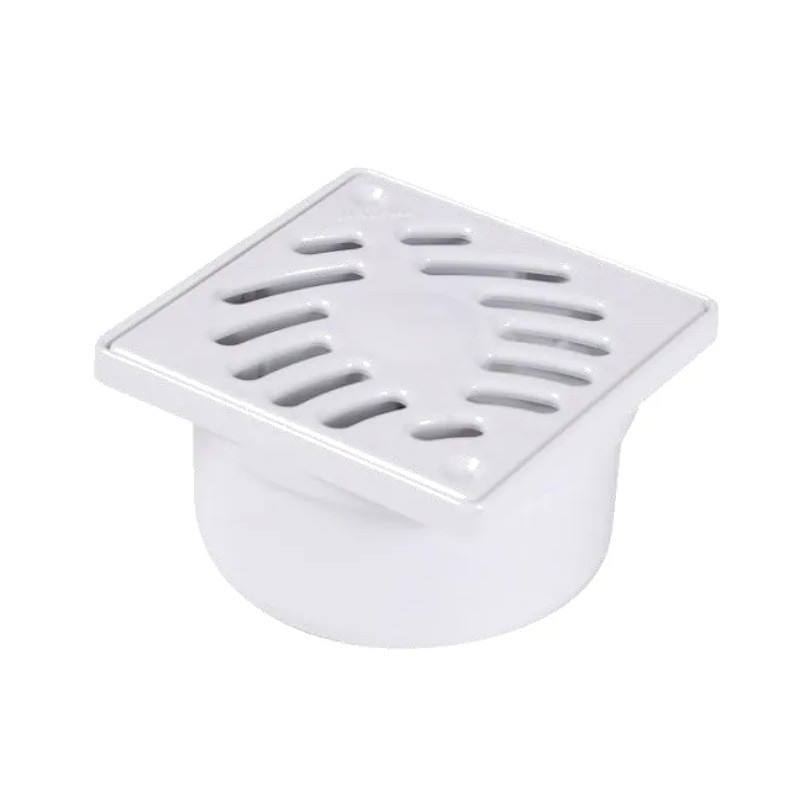

Siphon with white PVC grid, Ø50/40 mm, grid 10 x 10 cm
€15.82
Tax Included
(13.18 €HT + Ecotaxe €0.01HT)
Référence NICOLL : SIHJ10
Emplacement magasin : A3-D-104
Siphon with white PVC grid, Ø50/40 mm, grid 10 x 10 cm NICOLL reference SIHJ10.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Siphon with white PVC grid, Ø50/40 mm, grid 10 x 10 cm NICOLL reference SIHJ10.
- ■ FUNCTION:
- This siphon is intended for the evacuation of runoff water from loggias, courtyards, shower rooms, laundry rooms, etc...
- ■ DESCRIPTION:
- 10 x 10 cm WHITE PVC grid pre-drilled for easy locking.
- PVC body with an external diameter of 93 mm for a perfect connection with a Ø100 mm male pipe.
- Vertical double spigot Ø50/40 mm for a required reservation limited to 57mm.
- ■ TECHNICAL SPECIFICATIONS:
- Depth of seal: 28 mm; - Flow rate: 0.7l/s; - Class: K3.
- ■ IMPLEMENTATION:
- The body of the siphon in Ø 93 mm allows the connection on a Ø 100 mm male pipe and the PVC/PVC bonding with the pipe ensuring a perfect sealing.
- In the case of a sealed installation, make sure that the bottom of the siphon is in contact with the bonding concrete.
- In order to maintain the siphon's drainage efficiency, the finished floor must be flush with the top of the frame.
3 Items
Data sheet
- Length (cm):
- 10
- Width (cm):
- 10
- Main color :
- Black
Red
White
Yellow - Weight (kg) :
- 1.5
- Packaging:
- 1
- Main materials :
- PVC
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3309032839105
- EAN-13
- 3309032839105
- Location
- A3-D-104
- Reference to display
- NICSISIHJ10
- Supplier reference
- SIHJ10
