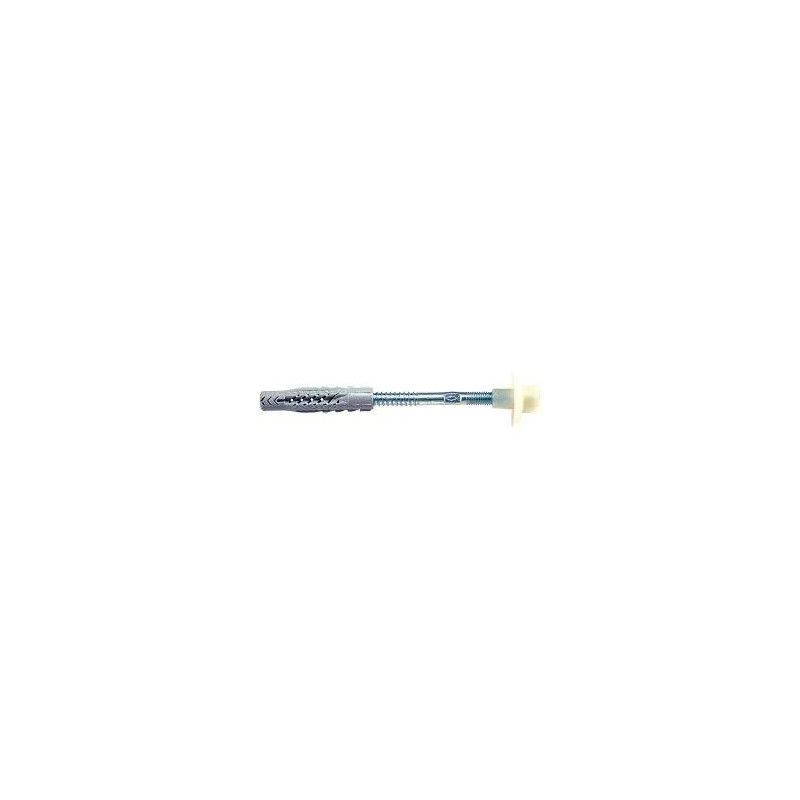

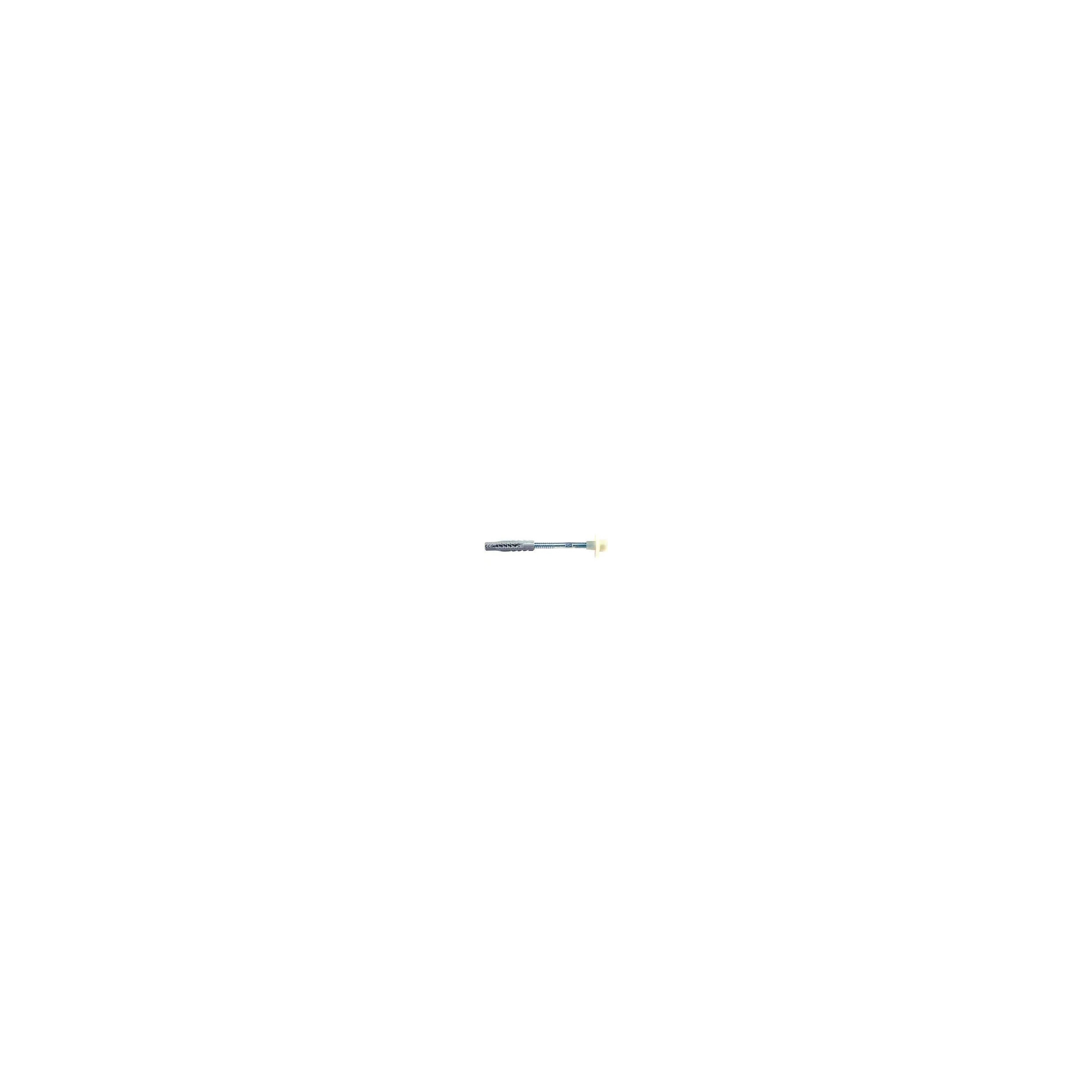

Washbasin and wall-hung toilet fixture 8 x 110, 2 pieces FISCHER reference 080658.
Complete set of fixings for quick and easy installation of washbasins and urinals. Contains 2 universal dowels UX 10x60, 2 threaded studs M8x110 of galvanised steel and 2 flange nuts. The UX universal dowel without collar is suitable for installation in all solid and hollow building materials.
Main features
Fixing set complete with dowel, threaded stud and flange nut.
The flange nut with collar prevents direct contact between the ceramic and the screw and avoids damage to the ceramic.
UX anchor for fixing in all solid and hollow building materials. Suitable for installation through and through.
Standoff and through-hole mounting possible.
High strength, ageing resistant nylon.
Benefits
The complete mounting kit allows for quick and easy installation.
The UX universal anchor can be used in all solid, hollow and panel materials and thus offers a high degree of flexibility.
The high-strength nylon base nut is resistant to ageing and chemicals and ensures a durable and damage-free attachment to ceramics.
Applications
Sinks
Urinals
Suspended toilets
Tanks
Materials
Concrete
Brick with vertical perforations
Lightweight hollow concrete block
Perforated sand-lime brick
Solid sand-lime brick
Natural stone
Cellular concrete
Plasterboard
Solid block of light concrete
Solid brick
Details (building materials, loads, etc.) of the approval, if available, apply
Operation / Assembly
The UX without flange is suitable for both in-wall and through-wall installation.
When screwed in, the UX expands in solid and hollow materials.
Maximum strength is only achieved if the minimum screw-in depth is observed.
Tiles and plaster are considered as non-load-bearing layers.
