Magnetic drive circulators for forced circulation and temperature maintenance of sanitary loops in domestic systems.
Motor with spherical turbine rotor. The stator transmits the magnetic field to the rotor located in the water-carrying part of the pump. The part of the pump in contact with the water is hermetically separated from the stator. It is short-circuit proof and does not require any special protection. The rotor can be easily cleaned or replaced.
CONSTRUCTION
Maximum pressure: 10bar
Operating voltage: 230V 50Hz
Power consumption: 2.5 to 9 W
Maximum temperature: 95°C
Protection class: IP44
Parts in contact with water: brass, stainless steel, EPDM, noryl

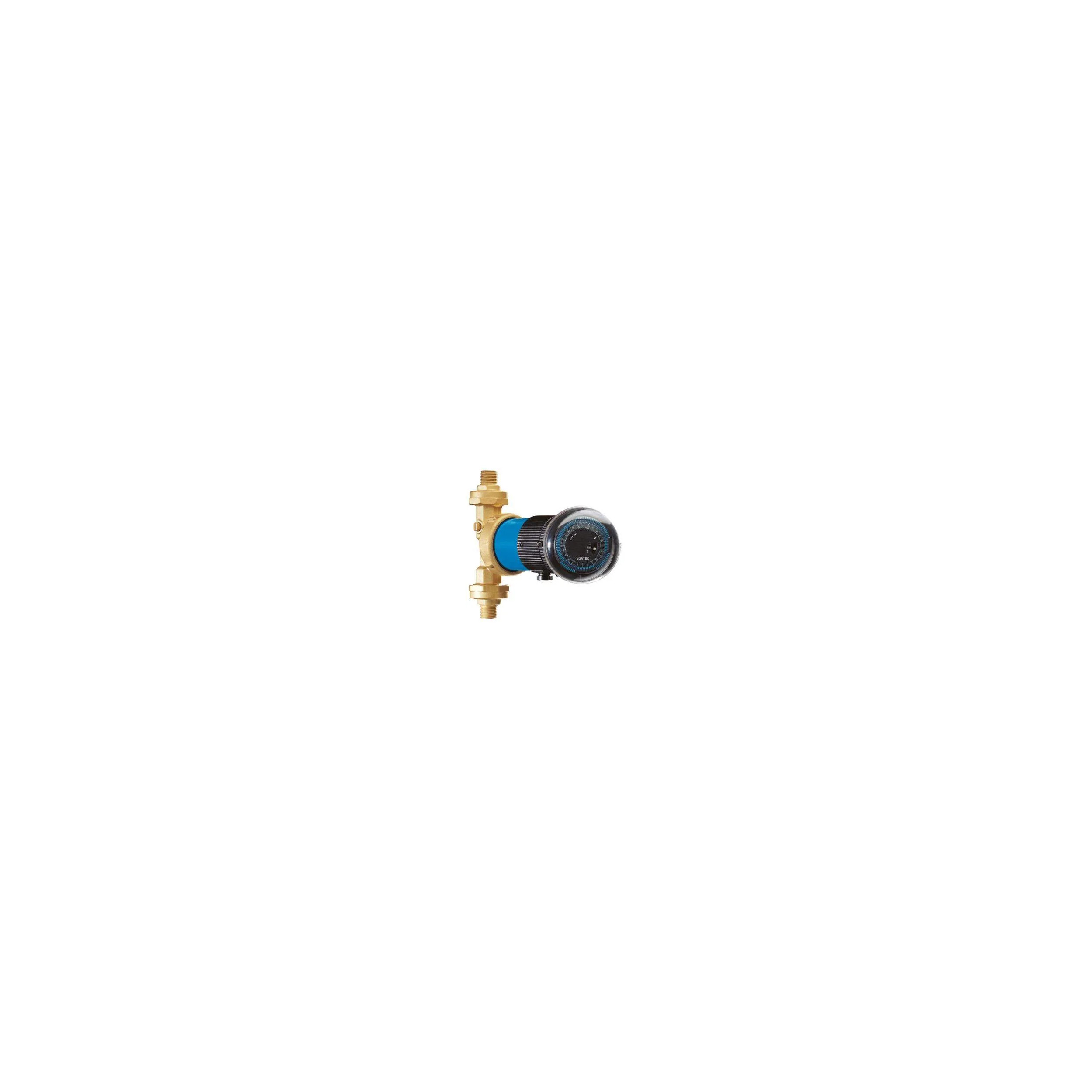

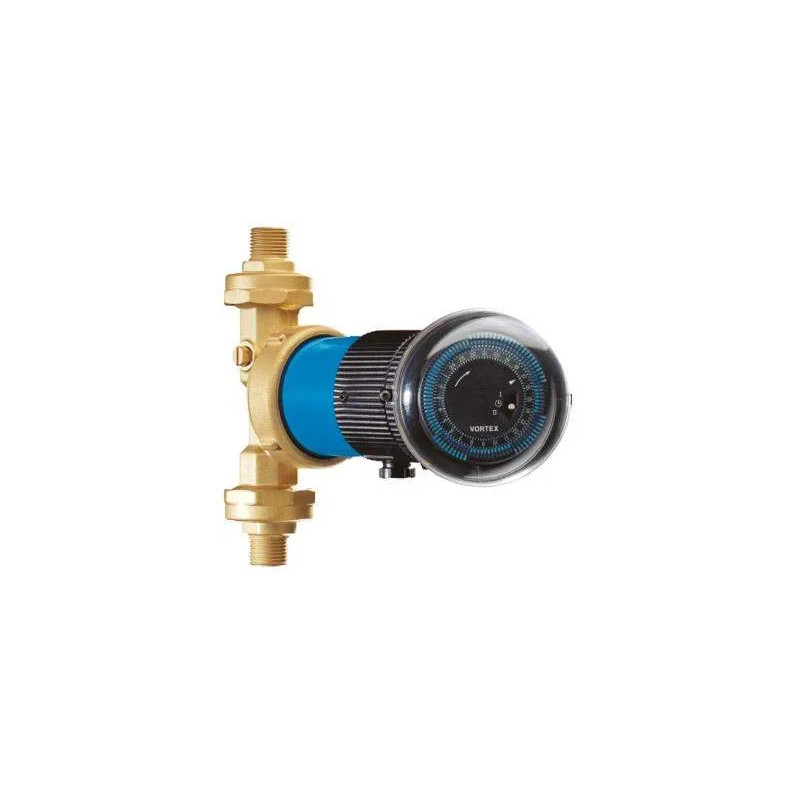

Vortex pump with clock and thermostat
