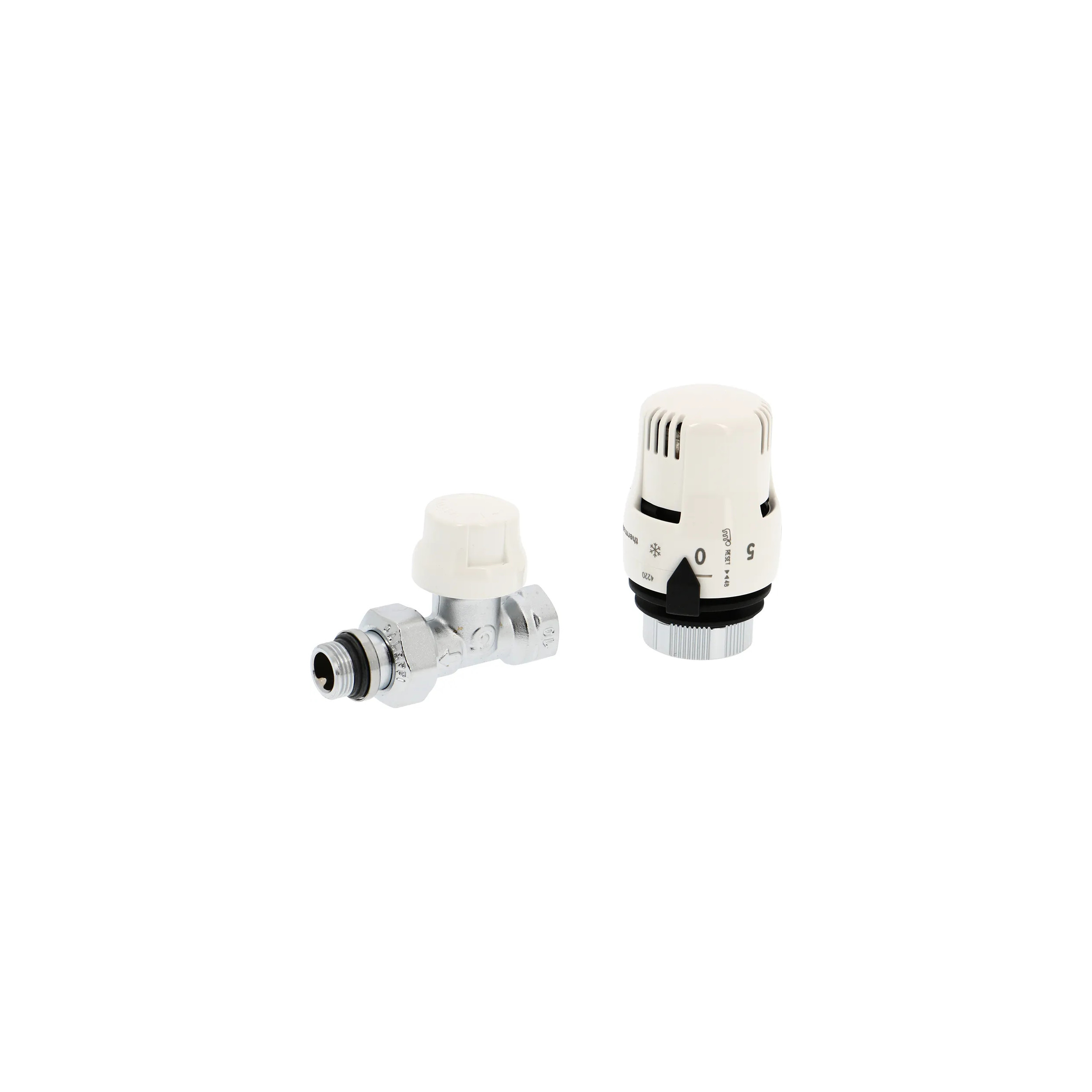

Radiator kit, straight 15x21 (1/2") valve with THERMADOR TTC thermostatic head, reference KTCT15D

The thermostatic valve automatically regulates the temperature emitted by the radiator, by acting on the hot water inlet flow rate. The thermostatic head is the driving force.

The kit comprises a TTC thermostatic head and a CT15D straight thermostatic body with self-sealing sleeve.

Certified CA 0.2K.

Kit features

Main product color: chrome.

Valve body shape: straight.

Thread diameter: 15x21 (1/2").

Radiator valve head: thermostatic.

Radiator valve body: thermostatic.

Valve, elbow and tee connection diameter: 15x21 (1/2") F.

CERTITA: yes.

Thermostatic valve features

P max : 10 bar.

Temperature range: 5 to 100°C.

Diameter: 15x21 (1/2").

Medium: water, glycol water.

Maximum percentage of glycol: 30%.

Max. differential pressure with control: 1 bar.

Thermostatic head specifications incl. VAT

Setting range: 5 °C.

Temperature setting range: 7 to 28°C.

Antifreeze intervention: 7°C.

Storage temperature: -10 to 50°C.

Pitch: 30 x 1.5.

Water, brine: 30%.

Maximum percentage of glycol: 1 bar.

Maximum working pressure: 10 bar.

Heat transfer fluid temperature range: 5 to 100°C.

Time variation: VT = 0.25.
