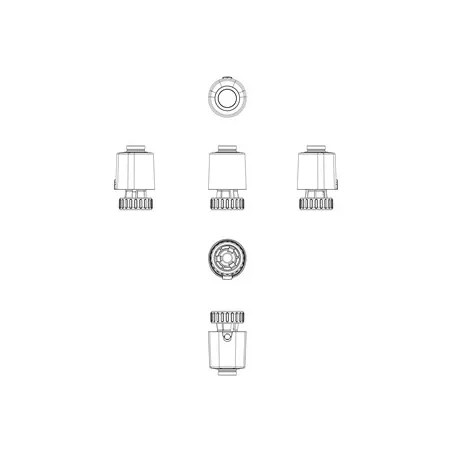

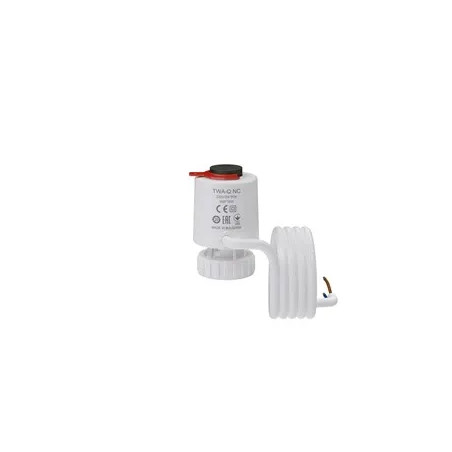

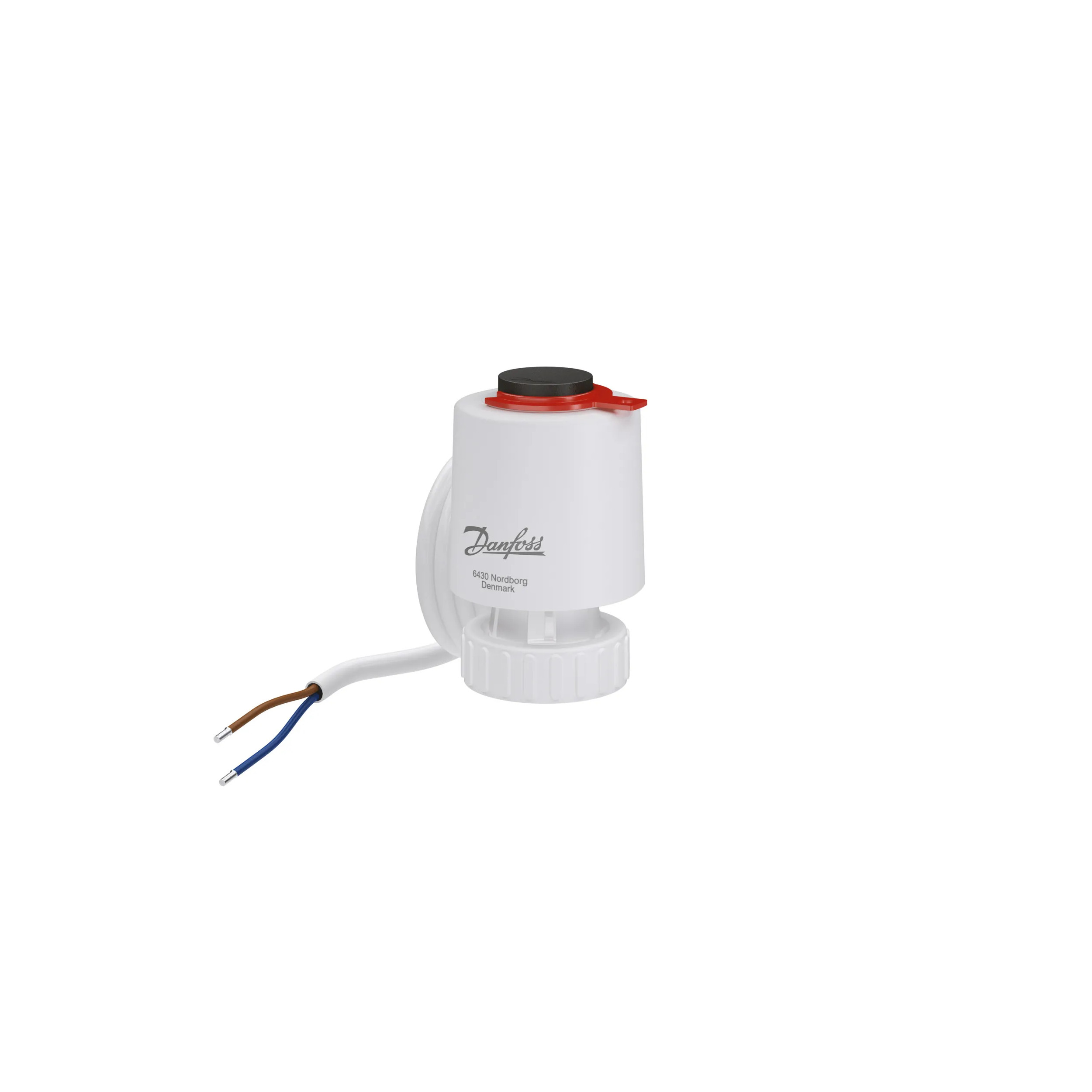

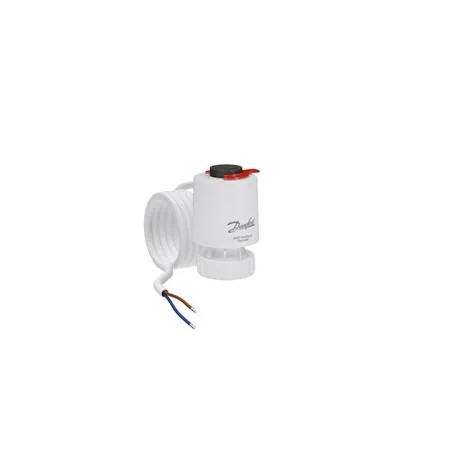

Thermo-electric head TWA-Q 230V, with 1.2 meter cable
€49.63
Tax Included
(41.36 € HT)
Référence Danfoss : 082F1600
Emplacement magasin : B1-G-024
Danfoss replacement thermostatic head. Thermo-electric actuator TWA-Q 230V, with 1.2 meter cable reference 082F1600.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Thermo-electric head TWA-Q 230V, with 1.2 meter cable DANFOSS reference 082F1600
The Danfoss TWA-Q thermo-electric actuator is used with AB-QM DN 10 to 32 pressure-independent control valves (PICV).
The electrothermal actuator can be controlled in On/Off or Pulse Width Modulation (PWM) mode. It provides a cost-effective solution for controlling hot and/or chilled water for fan coil units and other terminal units.
Technical specifications :
230 V AC power supply.
Supply voltage [V] AC: 230 V.
Supply voltage [V] DC: 230 V.
Power consumption :
Position indicator.
Max. fluid temperature 95 °C.
Cable included.
Protection class: IP 54.
Compatibility with AB-QM size: DN 10-32.
Stroke: 5mm.
Cable length: 1.2 m.
Approval standard: EC EN 60730.
Voltage-free position: normally closed.
Type: TWA-Q.
Control signal type: On/Off and PWM.
Connection: M30 × 1.5.
8 Items
Data sheet
- Weight (kg) :
- 0,176
- Main materials :
- Métal
- Warranty:
- 2 years
Specific References
- EAN13
- 5702425243066
- EAN-13
- 5702425243066
- Location
- B1-G-024
- Reference to display
- DANTE082F1600
- Supplier reference
- 082F1600
