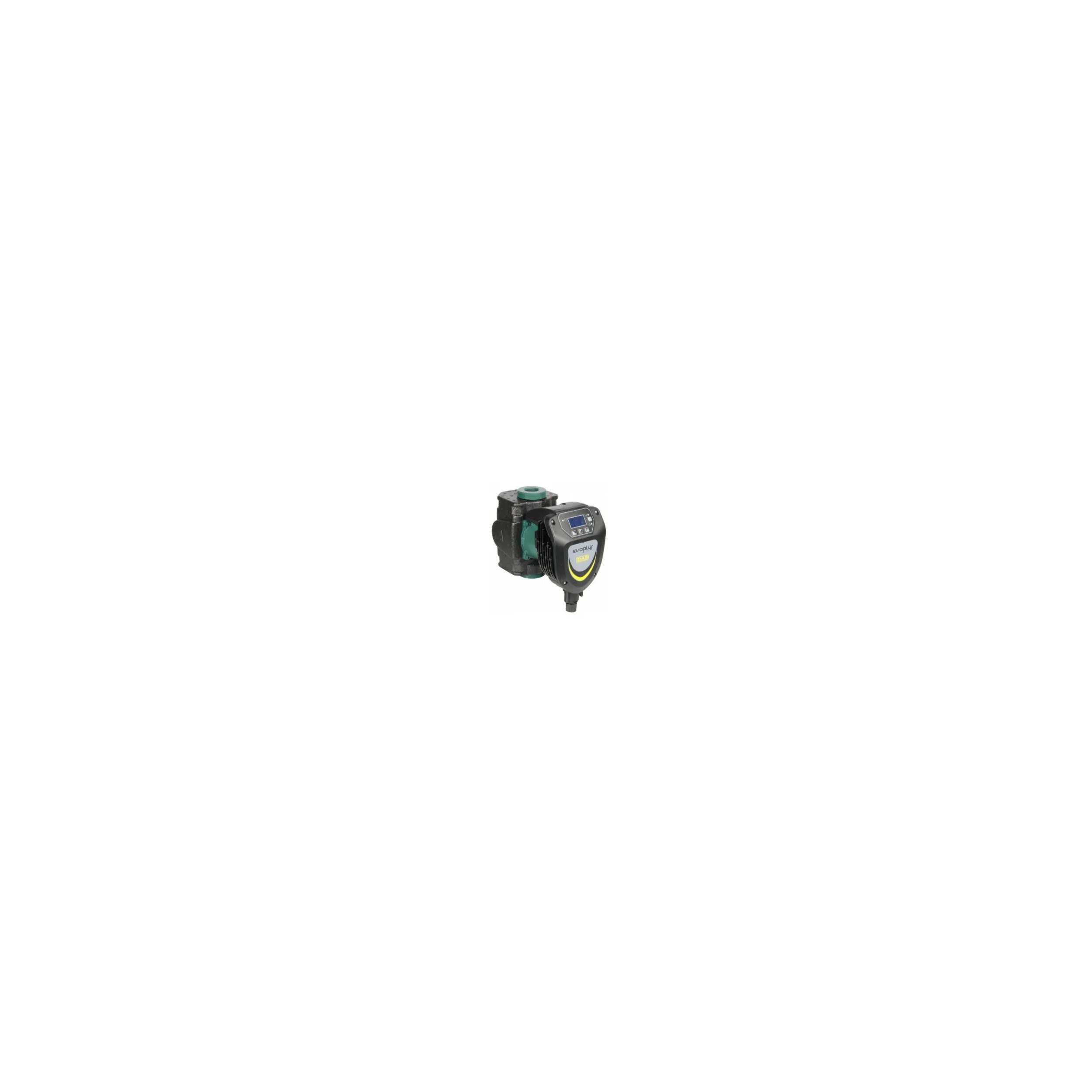

Union pump EVO PLUS 60/180XM Heating/cooling Thermador

Centre distance 180 mm

Technical specifications:

One-piece cast iron pump body, synchronous motor with permanent magnets.

Aluminum engine case. Precision machined and smoothed surfaces for maximum hydraulic efficiency.

Union and single flange models are supplied with their insulation shells.

Easy electrical connection. Intuitive drop-down menu

• Maximum pressure 16 bar

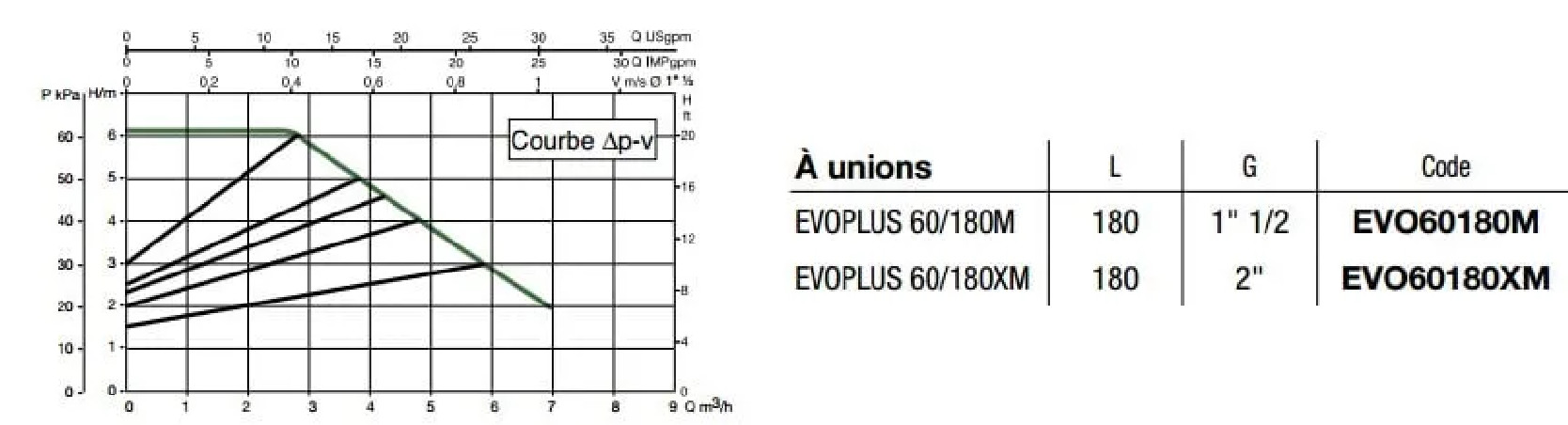

• Operating range from 2 to 12 m3/h for heads up to 11 m.c.e.
• Temperature range: -10°C to 110°C
• IP 44
• Class F

Operating modes available on factory standard circulators.

The double circulators are delivered with the multifunctional modules installed and wired.

Proportional pressure

Especially suitable for systems with thermostatic valves and high head (>4 meters), long circuits, and in general circuits in which pressure variations can be significant, with relatively small variations in water temperature.

Constant pressure

Especially suitable for installations with thermostatic valves and low head (

Constant speed

This operating mode deactivates the control functions. It allows manual setting of the operating point. Setting 100 % à 25 % of the maximum speed.
