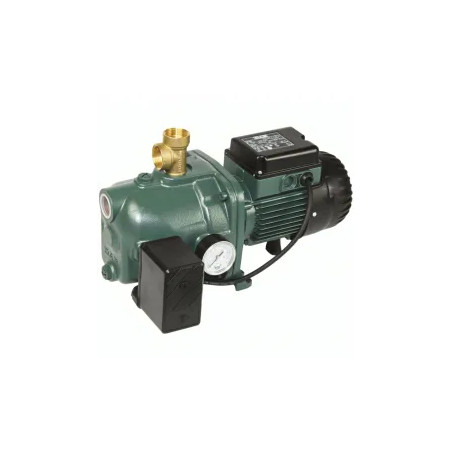

0.75 Kw Jet 102M self-priming surface pump, pre-equipped for JETLY storage tank part no. 016082

Product type: surface pump

Description:

The Jet 102M pump, part of the historic JETLY range since 1977, is a recognized reference in the world of pumps thanks to its venturi system, providing high suction capacity down to -8 meters. This self-priming, single-stage pump is ideal for drawing water from a variety of sources, such as rivers, lakes, tanks or shallow wells. It is perfectly suited to domestic and agricultural uses such as automatic watering, feeding troughs, washing, cleaning or transferring fluids.

Thanks to its sturdy cast-iron body and ACS certification, this pump can be used for drinking water, offering a reliable solution for increasing pressure in domestic or collective housing.

Features :

• Model: Jet 102M
• Pump body material: Cast iron
• Discharge diameter: 1'' Female
• Suction diameter: 1'' Female
• Packaging dimensions (L x W x H) : 428 x 294 x 242 mm
• Weight with packaging: 13.8 kg
• Power output (P2) : 0.75 kW
• Motor power: 1.0 HP
• Supply voltage : 1 x 230V
• Rated current: 5.1 A
• Flow/pressure: 2.4 m³/h at 3.2 bar
• Capacitor: 16 µF
• Length: 414 mm
• Width: 263 mm
• Height: 239 mm
• Gross weight: 13.9 kg
• Factory color: Green RAL 6001
• Pre-equipped for automation: Yes, with pressure switch + mano

Operating range :

• Flow rate: 0.6 to 4.8 m³/h
• Head: up to 60 m C.E.

Pumped liquid: Clean, free of solids or abrasives, non-viscous, non-aggressive, non-crystallized and chemically neutral, close to the characteristics of water.

Liquid temperature range: 0°C to + 35°C for domestic use (EN 60335-2-41)

Maximum ambient temperature: 40°C

Maximum operating pressure: 8 bar (800 kPa)

Installation : Fixed in horizontal position

Supplied with power supply: Standard + ground 230V

Health compliance certificate: Yes

Supplier : JETLY

Catalogue number: 016082
