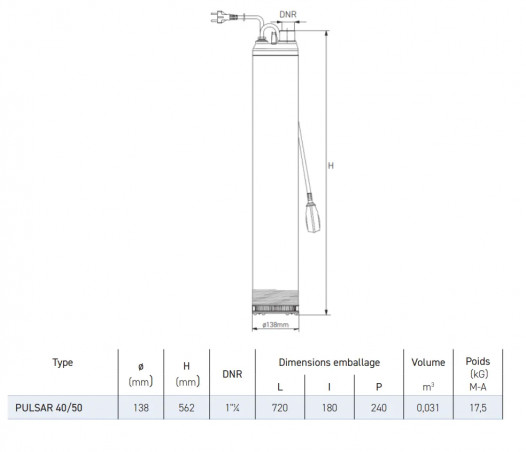

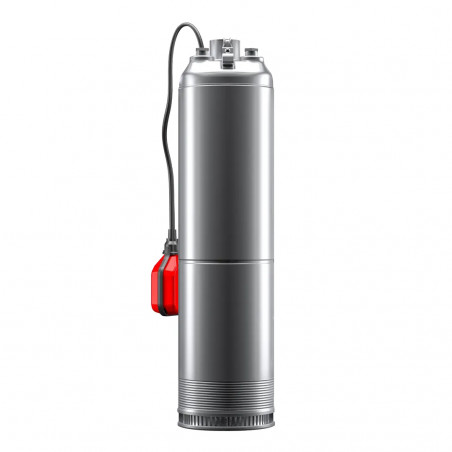

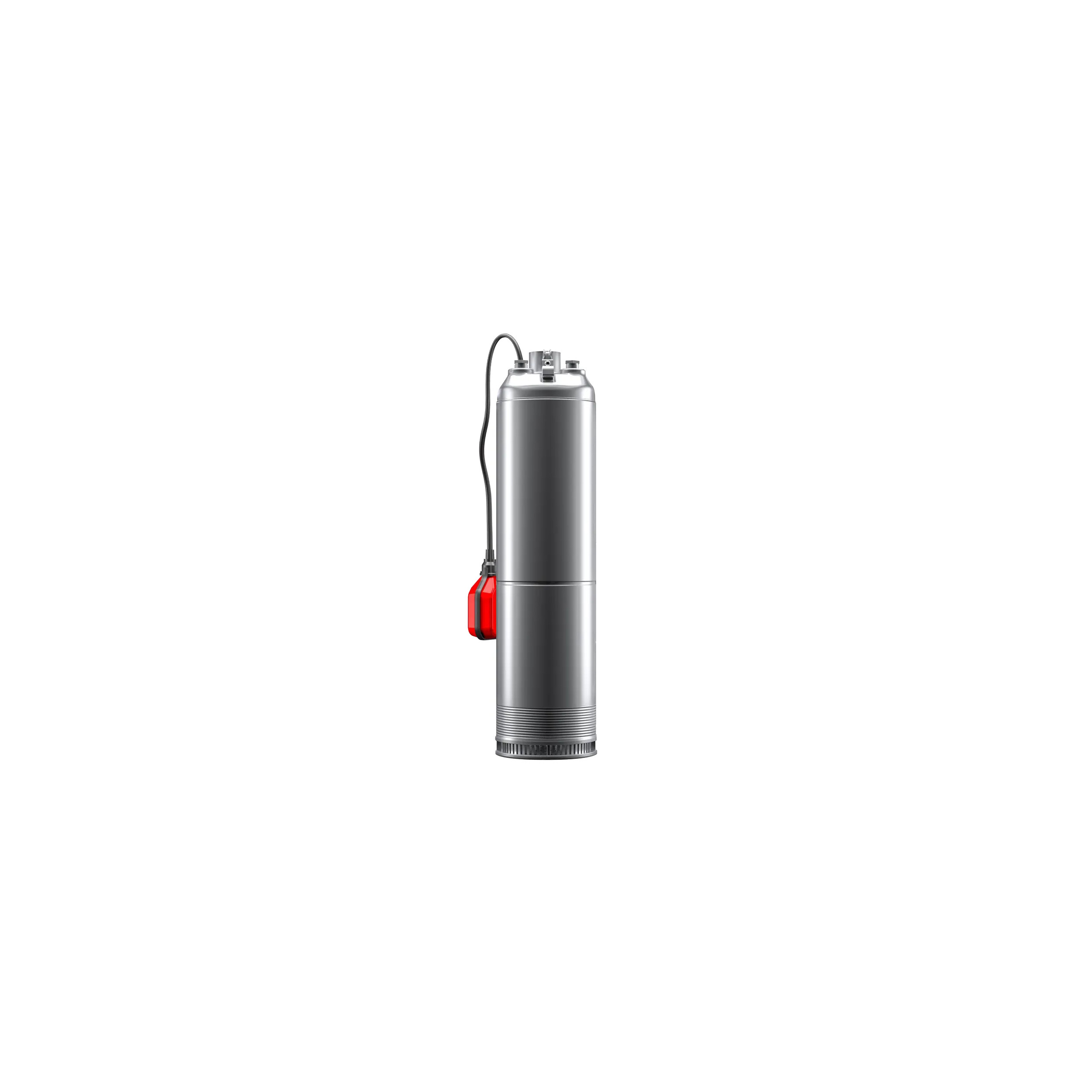

PULSAR 40/50 M 5" submersible centrifugal pump for deep wells or tanks -AUT-Y22 JETLY part no. 150574.

PULSAR electric pumps are used in clear water installations, boreholes, recovery tanks or cisterns, wells or watercourses, and to distribute pressurized water in domestic installations, watering and gardening.

Submersible centrifugal pump for deep wells or cisterns. New motor meets MEI (minimum efficiency index) standards.

- Power supply: 230 V
- 0.77 kW
- 5,4 A
- Max. flow: 4.8 m³/h
- Max. pressure: 5.7 bar
- 1"1/4" connection
- Supplied with 15 m cable

PUMP :

- Used inside wells or tanks, this particularly quiet pump avoids all the problems associated with suction and discharge.

- Submersible single-stage multistage pump, with the hydraulic section under the motor, cooled by the pumped liquid.

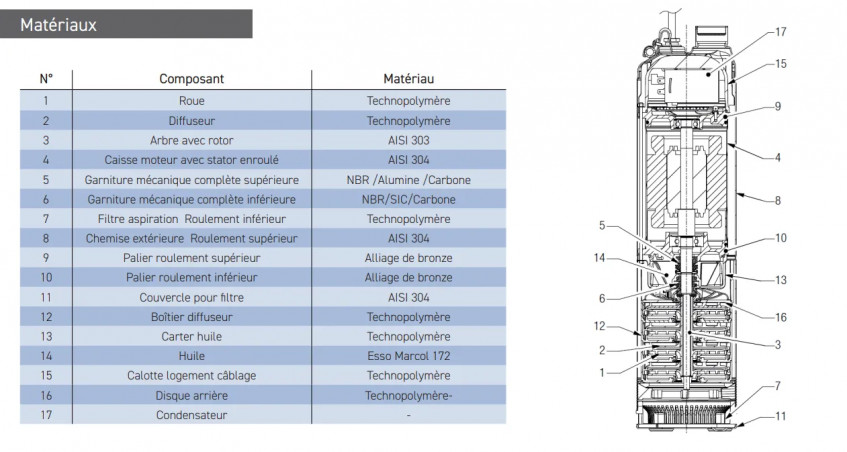

- Outer sleeve, stator sleeve, upper head with sleeve and closing ring in AISI 304 steel.

- Stainless steel screws.

- Pump body in AISI 304 stainless steel. Impellers, diffusers, filter and oil chamber in technopolymer. Double mechanical seal with interposed oil chamber,carbon ceramicon motor side and silicon carbide on pump side.

- The applied sealing system guarantees motor tightness and mechanical seal operation, even in the event of short-term dry running.

- AISI 303 stainless steel motor shaft.

- Rotor mounted on oversized ball bearings for low noise and long life.

- Built-in thermo-amperometric protection and permanent capacitor on single-phase version. - To protect the three-phase motor, we recommend the use of a remote circuit breaker that complies with current standards.

- Motor protection rating: IP 68.

- Insulation class: F.

- Standard voltages: Single-phase 220/240 V - 50 Hz, Three-phase 400 V - 50 Hz.

- Standard cables: 15 m cable type HO7 RN F

- Single-phase versions can be supplied with or without float for automatic operation.

ENGINE :

- Continuous-duty submersible asynchronous motor, cooled by the pumped liquid.

- Stator housed in a sealed stainless-steel casing and covered by a cap containing the wiring and capacitor.

PULSAR NEW Y22 simplified guide
