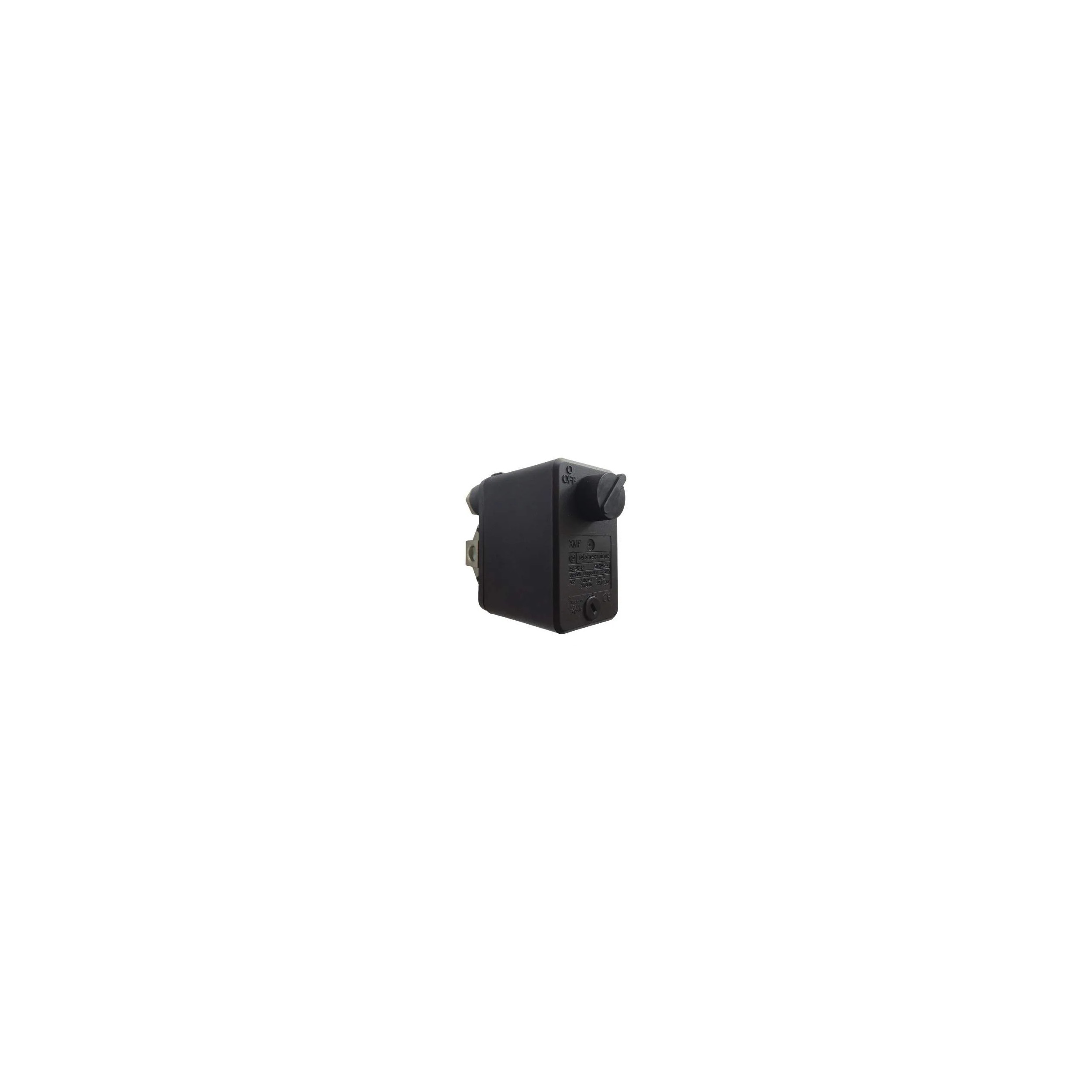

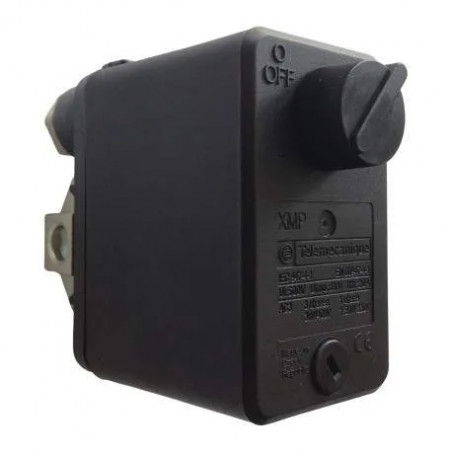

XMP6 pressure switch

The pressure switch or manometric contactor allows you to automate the operation of your pump based on the variable pressure of the water in your pipes.

The pressure switch switches on your pump when the pressure drops (switch-on pressure) and switches off the pump when the pressure rises above a certain value (switch-off pressure)

FEATURES :

- Housing made of glass-fibre reinforced polyamide IP 54.
- Pressure gauge socket and on/off switch
- CE, IEC/EN 60947-4-1, UL 508, CSA C 22-2 No. 14 compliant.

TECHNICAL CHARACTERISTICS:

- Minimum switch-on value: 0.8 bar
- Maximum shut-off pressure: 6 bar
- Factory setting: 2 - 3.5 bar
- Controlled fluids: air, fresh water, sea water (0 to + 70 °C).
- Maximum power 3 kW max in 3-phase 400 V and 1,5 kW max in single-phase 230 V
- Electrical connection to screw clamp terminals.
- Hydraulic connection: F 1/2" (15x21). Connects directly to painted steel bladder tanks
- Pressure connection: 1/4" F (8x13)
- Conforms to CE, IEC/EN 60947-4-1, UL 508, CSA C 22-2 No. 14.
- Wetted parts: chromated zinc alloy (bottom), fabricated nitrile (membrane).
- Three-pole snap-action contact
- On/Off switch
- 2 cable glands
- Quick fastening of the cover with only one screw

ref: 412506
