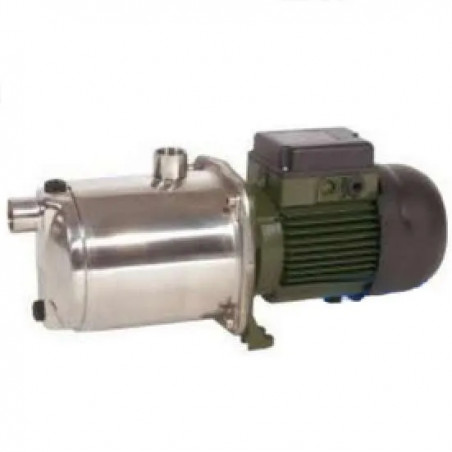

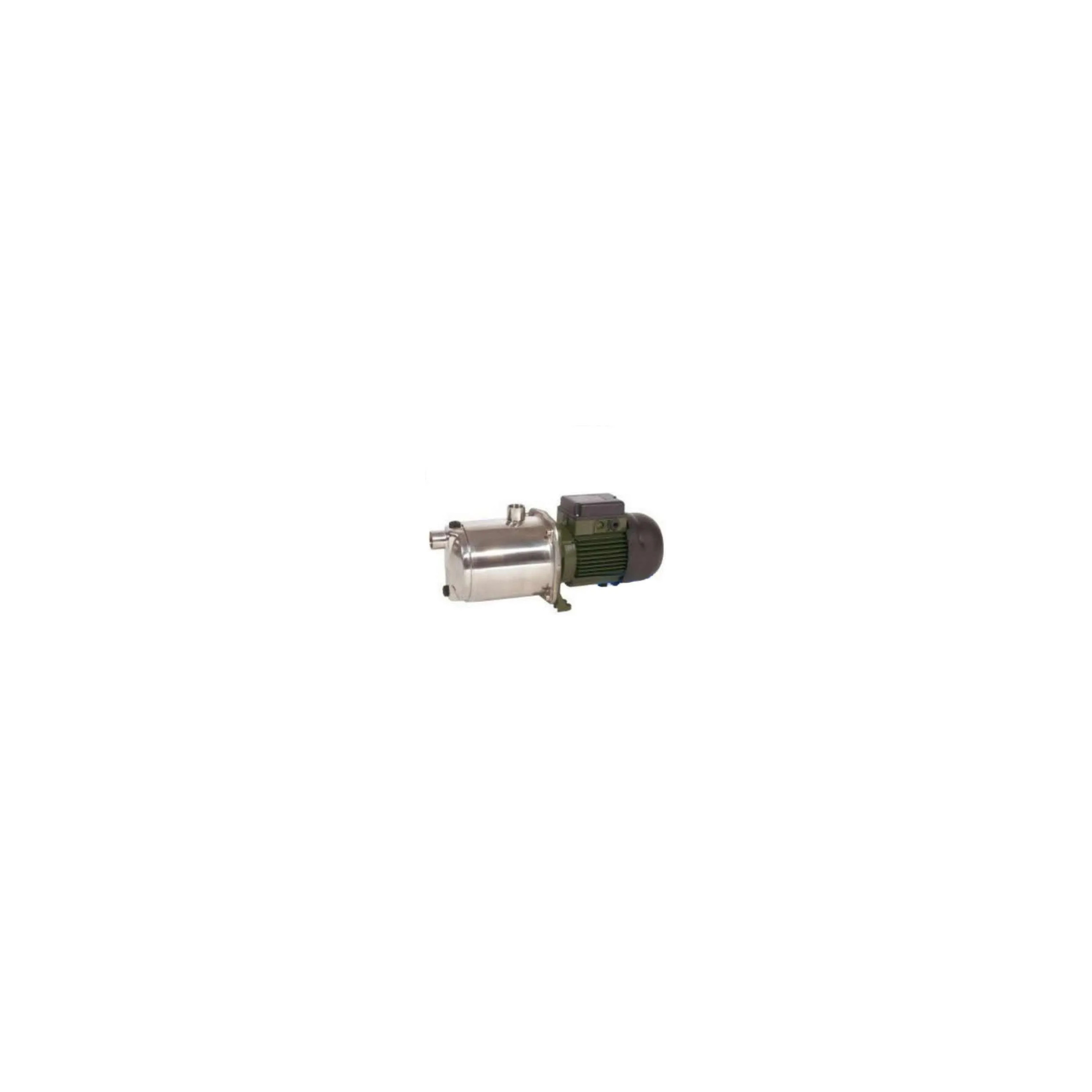

Euro surface pump Stainless steel 40/50 Mono

• JETLY

General characteristics:

Self-priming centrifugal pump with large capacity
of suction.
Silent.
Extremely economical operation.
Compact size.
High quality materials.
High performance.
Robustness and reliability over time.
Simple construction and easy assembly.

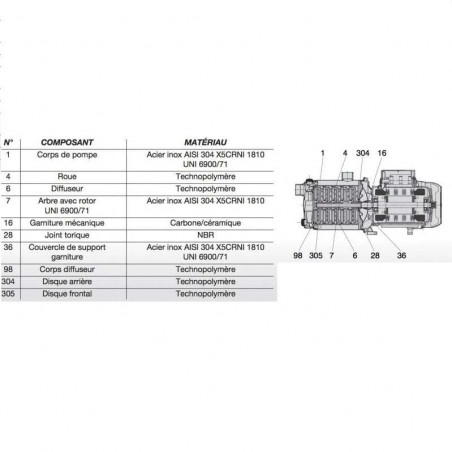

Pump
Pump body in AISI 304 stainless steel.
Die-cast aluminum engine mount,
support cover stainless steel trim
AISI 304.
Carbon/ceramic mechanical seal.
Rotor shaft in stainless steel AISI 304.
Impellers, diffuser bodies and diffusers in technopolymer.
Stainless steel wear rings.

Engine
Continuous duty asynchronous motor.
Thermo-amperometric protection and capacitor
permanent incorporated in the single-phase version.
Protection to be provided by the user for the version
three-phase.

Motor protection class: IP 44
Protection class of the terminal block: IP 55
Insulation class: F
Standard voltage: single-phase 220/240 V - 50 Hz - 2 poles
three-phase 230/400 V- 50 Hz - 2 poles
IE 2 high efficiency three-phase motor from 0.75 kW.

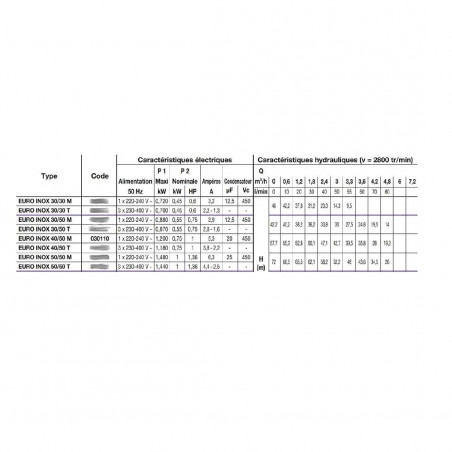

Technical specifications:

Use
Operating range: from 0.6 to 7 m3 with height
up to 72 meters of C.E.
Pumped liquid: clean, without solids or abrasives,
non-viscous, non-aggressive, non-crystallised and chemically
neutral, close to the characteristics of water.
Liquid temperature range :
0 °C to + 35 °C for domestic use (EN 60335-2-41).
0 °C to + 40 °C for other applications.
Maximum ambient temperature: + 40 °C.
Maximum operating pressure: 8 bar.
Installation: fixed or portable in horizontal position.
