Composition of the package

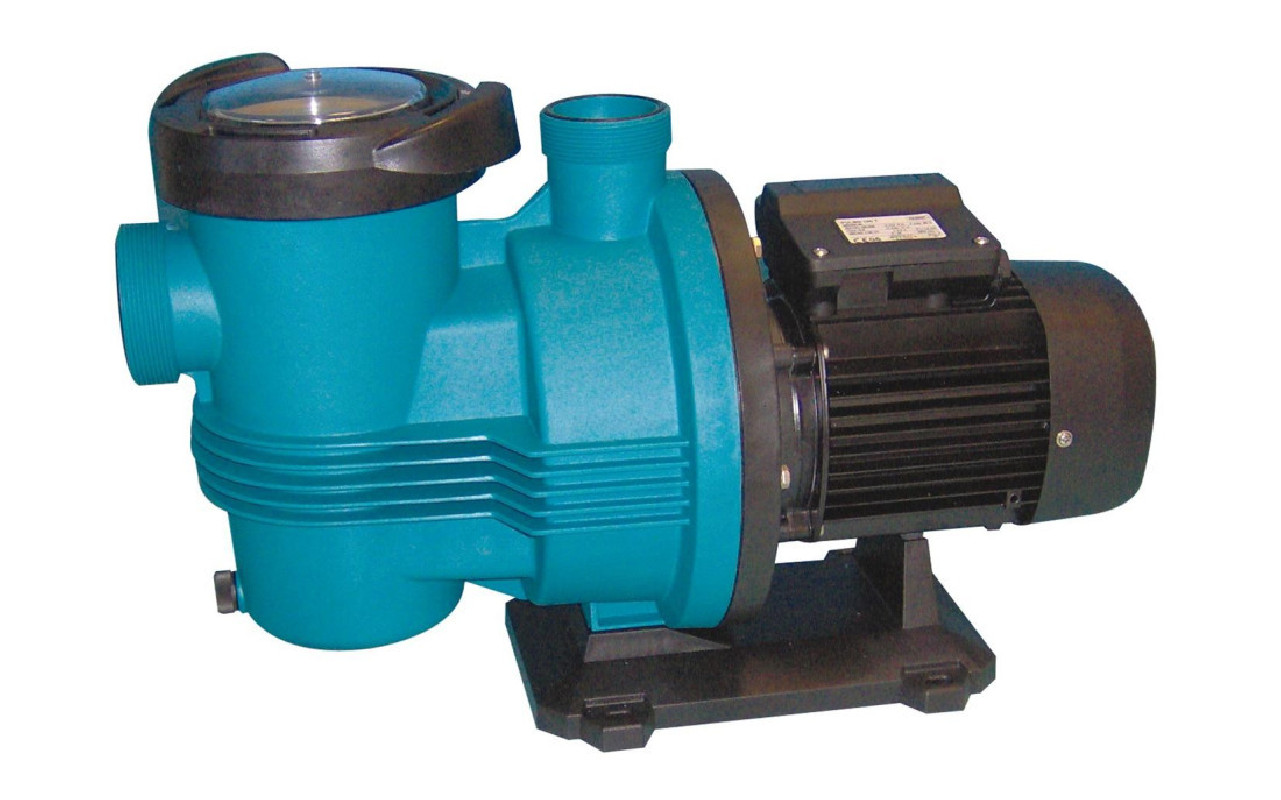

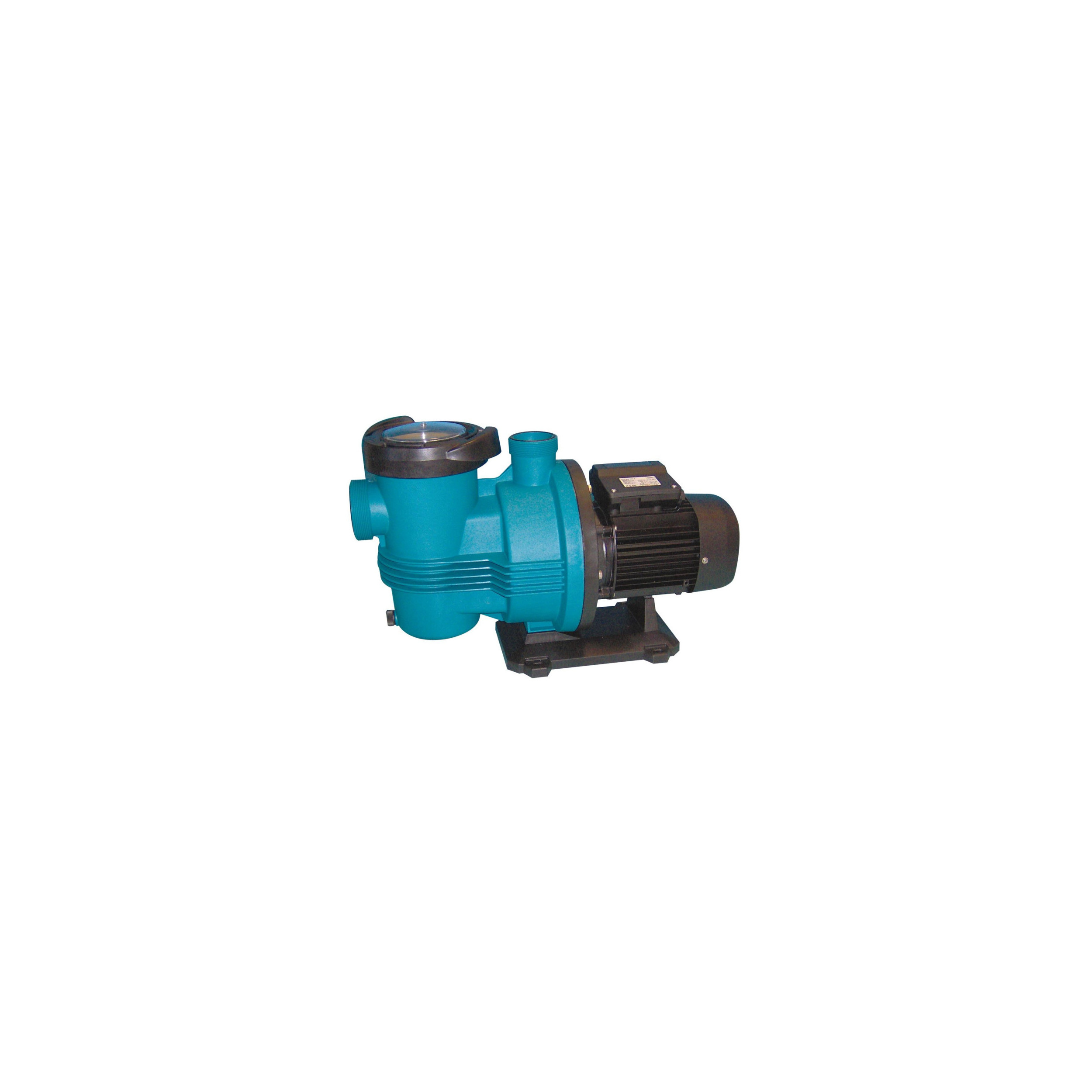

• • 1 Aqualuxpump
  • 1 union 63 to be glued (suction)
  • 1 union 50 to be glued (discharge)
  • 1 pre-filter basket
  • 1 cover + seal

Technical specifications

• • Centrifugal type, continuous operation 24 hours a day
  • Single-phase power 0.6 to 3 hp
  • Three-phase power 0.75 to 3 hp
  • Class F (140°) insulated motor; IP55 protection
  • Glass-filled Noryl turbine
  • Graphite and alumina mechanical seal
  • Input/output connections

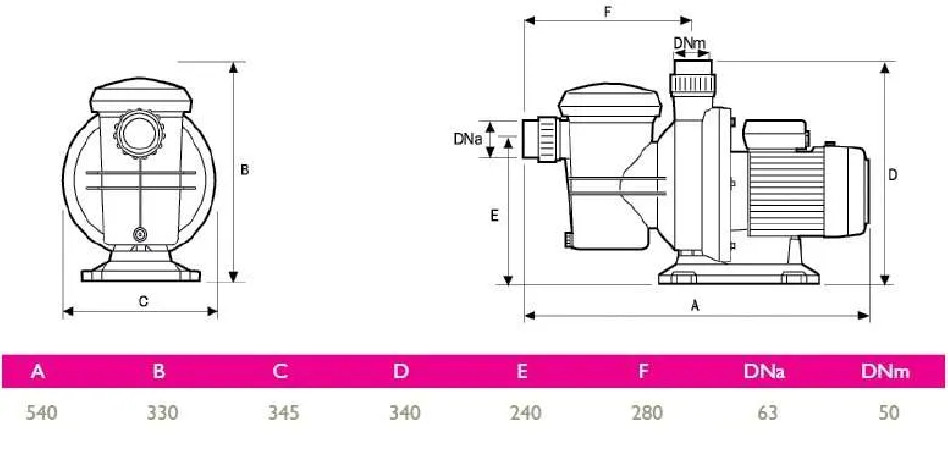

  • suction 63, discharge 50
  • Drainage yes on prefilter
  • Power supply 230V / 380V - 50Hz
  • Type of closure including screw-on lid (ring)
  • Material hub axle stainless steel AISI 420 1/4 turn
  • Pre-filter volume 1.6 litres
  • 3 year warranty

The advantages of the PULSO pumps from AQUALUX:

• • High performance: IE2 motor (high efficiency, low consumption) from 0.75 kW tri. The ratios between the power in HP and the hydraulic flow are among the best on the market.
    Suction ø 63 mm limiting the speed and improving the efficiency while reducing the noise.
    Sound power limitation due to vibration dampers on the base.
  • Robust: Noryl turbine loaded with fibreglass. Mechanical seal in graphite and alumina.
    Motor shaft in AISI 420 stainless steel.
    Class F (140°) motor insulation.
    Pump body injected in
    glass-filled polypropylene.
    IP55.
  • Practical: Electrical connection facilitated by the width of the terminal box.
    Removable foot with integrated fixing brackets.
    Large capacity 1.6L pre-filter.
    Basket guide groove in the pre-filter to prevent damage to the moving parts due to heating.
    Opening/closing of the lid in ¼ of a turn facilitated by the presence of "2 ergonomic ears" (up to 1.5 hp).
    Drain plug on the pre-filter.
