Modular socket outlet 2P + T 10/16A Grey
€12.32
Tax Included
(10.27 € HT)
Référence DEBFLEX : 707891
Emplacement magasin : B2-G-093

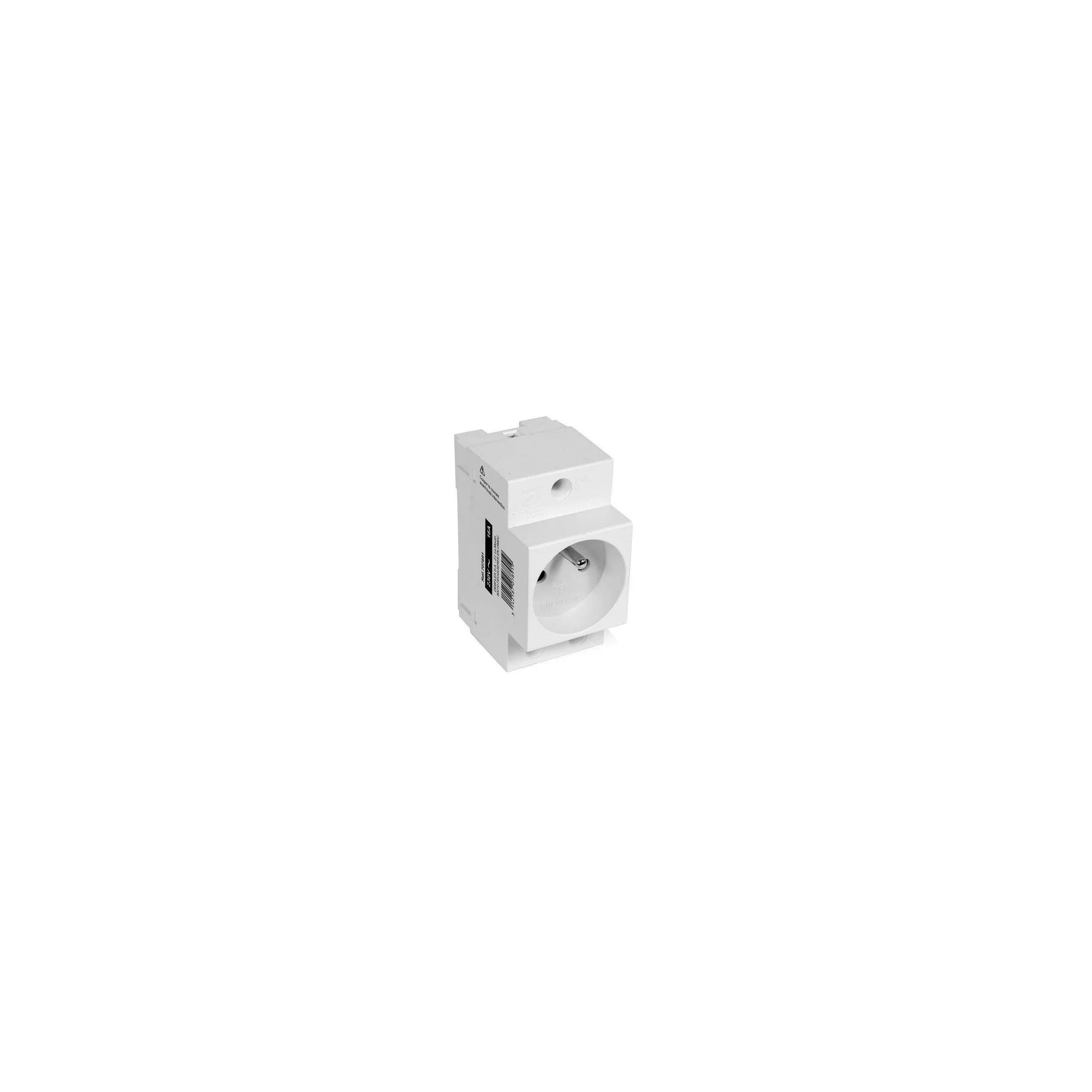

Prise modulaire DEBFLEX. Modular socket outlet 2P + T 10/16A Grey reference 707891.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
| GENERAL DESCRIPTION | |
| Commercial range | MODULAR PROTECTION |
| Function | Modular Socket |
| Full designation | SOCKET OUTLET 2P+T 10/16A GREY |
| Assembly of the System | DIN rail |
| Color | Grey |
| TECHNICAL DATA | |
| Rated operating voltage Ue : (V) | 230V |
| Ratedcurrent In: (A) | 16A |
| Rated frequency : (Hz) | 50Hz |
| Nature of the current | Alternative |
| Total number of poles | 2 + ground |
| Rated insulation voltage Ui : (V) | 250V |
| Reference calibration temperature : (°C) | 30°C |
| Grid distance (short circuit tests) : | 55mm |
| Type of terminals : | To screw |
| Diameter of the terminal screws | 5mm |
| Terminal material | Zinc plated steel |
| Wiring plan | Yes |
| ENVIRONMENTAL FEATURES | |
| Operating temperature (°C) | -5°C to 50°C |
| Sealing level | IP20 |
| Shock resistance | 850°C |
| Fire resistance | Yes |
| UV resistance | Yes |
| Storage temperature | 25°c |
| STANDARDS, APPROVALS & CONTRACTS | |
| Warranty | 2 years |
| CE certification | Yes |
| NF Certification | No |
| Reference standard | NF C 61314 |
| ROHS | Compliant |
3 Items
Data sheet
- Weight (kg) :
- 0,1
- Main materials :
- Polystyrène (PS)
- Voltage (V) :
- 230
- Amperage (A) :
- 16
- Warranty:
- 2 years
Specific References
- EAN13
- 3142187078919
- EAN-13
- 3142187078919
- Location
- B2-G-093
- Reference to display
- DEGPR707891
- Supplier reference
- 707891
