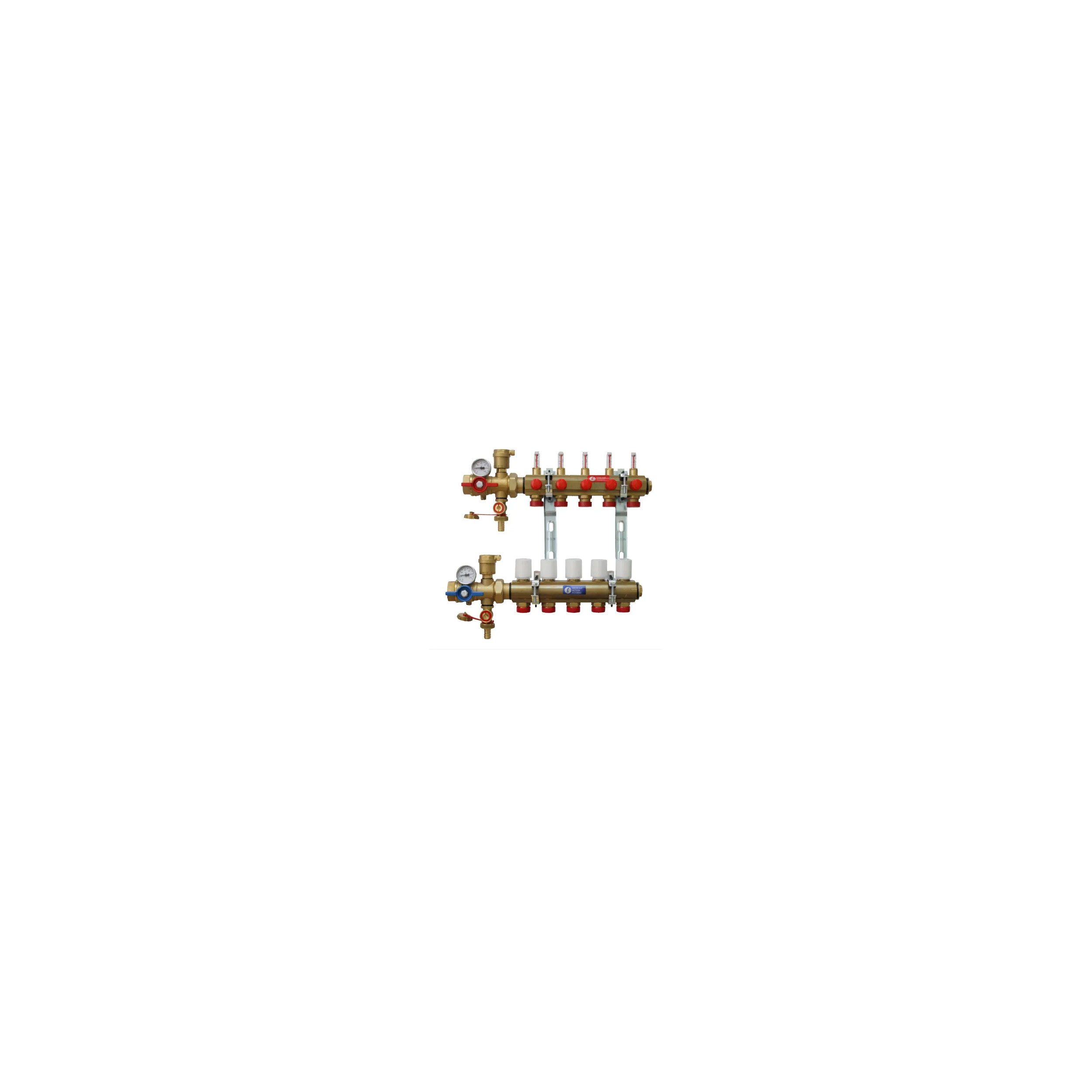

KITR553FK pre-assembled manifold with flow meter, 5 outlets GIACOMINI reference R553FK105.

Product type: Underfloor heating manifold.

Description:

KITR553FK manifold pre-mounted with flowmeter, 5 outlets.

Manifolds and controls for underfloor heating

Pre-assembled manifold kit with flow meter

Benefits

- The Kit saves you time: all the elements you need to install an underfloor heating system in compliance with DTU 65.14 are grouped together in a single reference.

Kit R553FK contains :

- 1" manifold with flow meter (R553F)
- 1" multi-function valve for flow (R269T)
- 1" multi-function valve for return (R269T)
- 2 R588 brackets
- A set of self-adhesive labels to differentiate the circuits.

Applications

Balancing the various circuits is one of the many problems involved in achieving comfort in homes with underfloor heating systems and/or manifold distribution to radiators.
It is essential that the installer can quickly balance the individual circuits, based on the design calculations, to guarantee the required flow rates. The R553F manifold is equipped with a flowmeter and fine adjustment, making balancing simple and convenient. When positioned in front of this product, flow variations are immediately visible to the installer. In this way, balancing errors can be reduced.
Don't forget to balance the manifolds together.
The R269T multifunction valves are mounted at the head of the manifolds, and combine several functions:
- Shut-off ball valve.
- Automatic air vent with self-sealing shut-off valve for replacement.
- Fill/drain valve with plug.
- Contact thermometer.
- Thermowell for immersion temperature probe (Ø 6mm).

Technical specifications

- Maximum water temperature: 5 ÷ 110°C
- Maximum pressure: 1 Mpa (10Bar)
- Flow meter: 0.5 - 5L/min
- Maximum operating pressure with air: 7 bar

For 16 mm diameter PER or PB pipes, use GIAAR179181613 adapters.

For 20 mm diameter PER or PB pipes, use GIAADR179X091 adapters.

Supplier: GIACOMINI

Catalogue number: R553FK105
