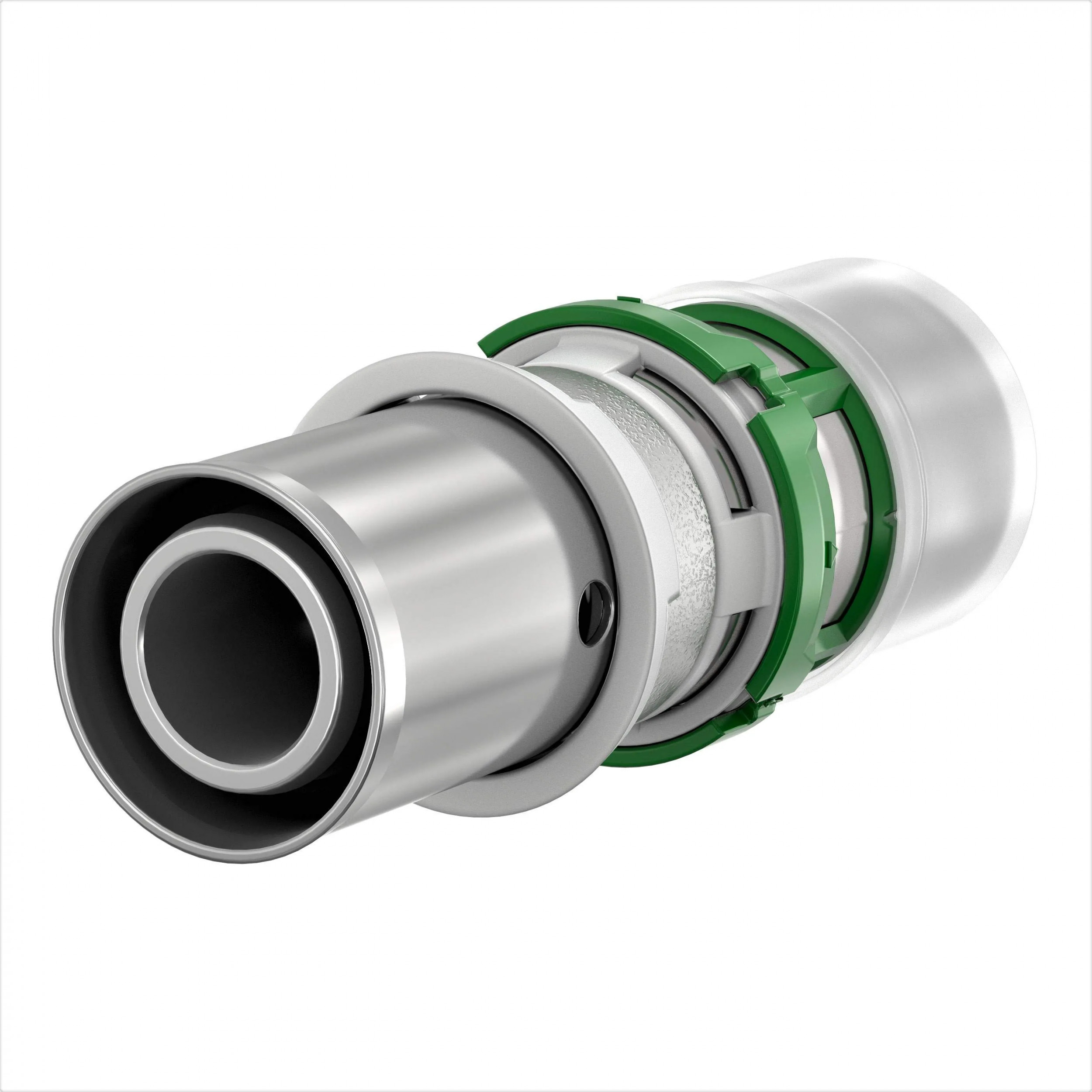

MultiSkin gateway press connection PER 20 x 1.9, multi-layer 20 x 2
€12.86
Tax Included
(10.72 € HT)
Référence COMAP : 7870W2020
Emplacement magasin : B1-F-027
MultiSkin gateway press connection PER 20 x 1.9, multilayer 20 x 2 COMAP part no. 7870W2020
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
MultiSkin gateway fitting PER 20 x 1.9, multi-layer 20 x 2 COMAP part no. 7870W2020.
Description: Multilayer 20x2 gateway fitting - PER 20 x 1.9
Code: 7870W2016
Model: 7870W - Multilayer gateway fitting (TH profile) - PER (CO profile)
Dimensions: 20x2 - PER 20 x 1.9
Technical specifications :
MultiSkin press fittings are designed for the following applications:
- Domestic water: +5°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
- Heating and cooling : -10 °C to +95 °C (operating temperature) and 10 bar (maximum operating pressure).
- Rainwater: -10°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
Dimensions :
| d1 [mm] | d2 [mm] | D1 [mm] | D2 [mm] | z1 [mm] | z2 [mm] | l1 [mm] | l2 [mm] |
| 20 | 20 | 27 | 26 | 7 | 6 | 31 | 26 |
Description :
MultiSkin metal press fittings for multilayer pipes.
MultiSkin press fittings are compatible with TH, H and U crimp profiles.
Check crimping immediately with the Visu-Control ring.Low connection pressure drop.
The Comap MultiSkin system for multilayer pipes combines all the advantages of plastic and metal pipes.
A lightweight, flexible tube with high resistance to expansion (inner aluminum layer).
A high-quality brass metal fitting, quick to install and reliable.
Crimp fittings are supplied with EPDM O-rings and feature the "leakproof if not crimped" function.
Performance :
The crimping solution makes it possible to connect a fitting in seven seconds, avoiding the risks associated with soldering.
Crimp fittings compatible with TH, H and U profiles and all major tool brands.
Improved hydraulics with reduced pressure drop (by 17 % on average compared with our previous range).
Safety :
Detachable Visu-Control® ring for visual and tactile crimping control.
Non-tight if uncrimped" technology: if uncrimped, the fitting allows water to pass through during pressure testing.
Protective cap to prevent the ingress of impurities.
11 Items
Data sheet
- Weight (kg) :
- 0,1
- Warranty:
- 2 years
Specific References
- EAN13
- 3430651463959
- EAN-13
- 3430651463959
- Location
- B1-F-027
- Reference to display
- COMRA7870W2020
- Supplier reference
- 7870W2020
