MultiSkin gateway press connection PER 16 x 1.5, multi-layer 16 x 2
€9.95
Tax Included
(8.29 € HT)
€9.45
with code
WELCOME5
Profitez de -5% sur votre 1er commande !
-
5%
Référence COMAP : 7870W1616
Emplacement magasin : B1-F-027

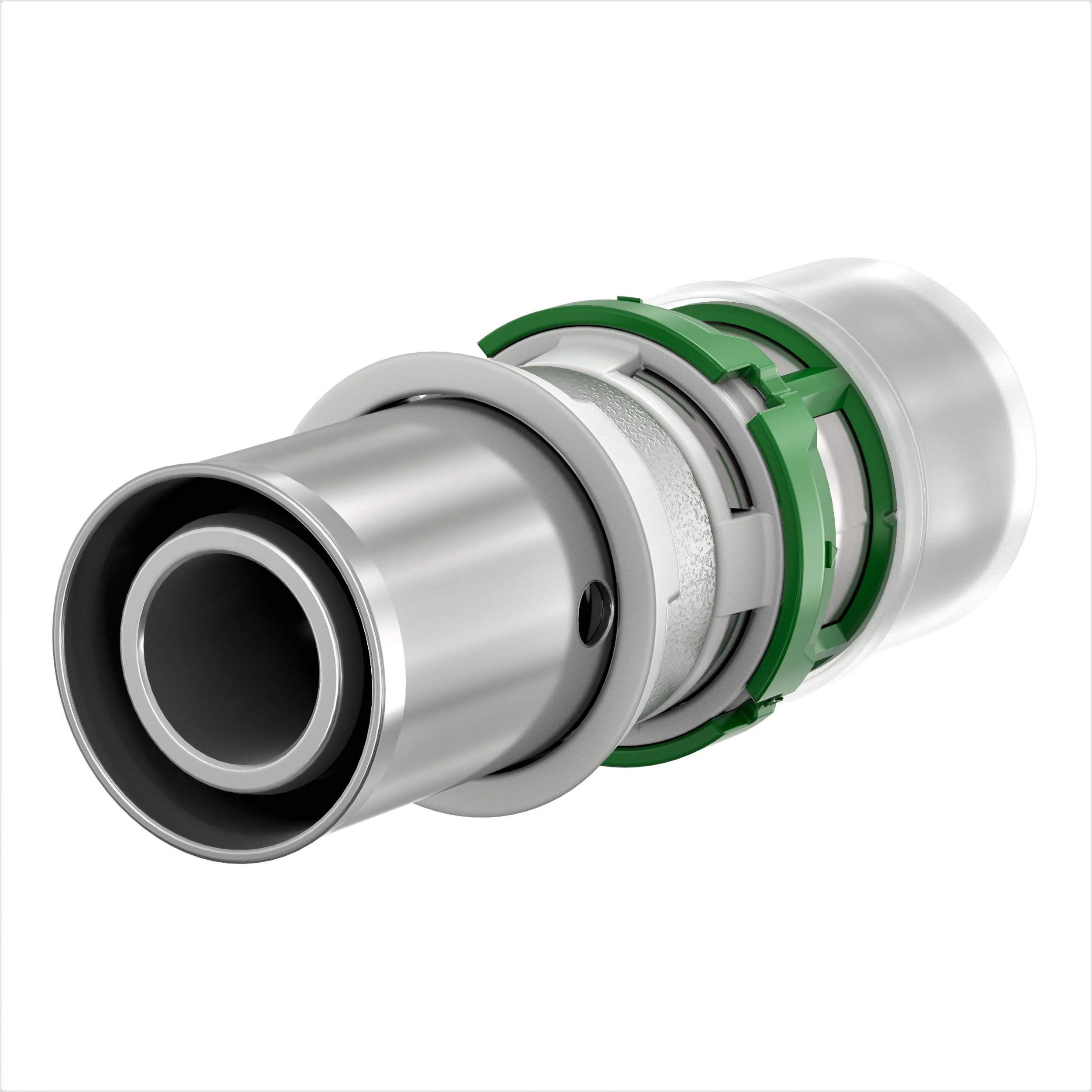

MultiSkin gateway press connection PER 16 x 1.5, multi-layer 16 x 2 COMAP reference 7870W1616
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
MultiSkin gateway fitting PER 16 x 1.5, multi-layer 16 x 2 COMAP part no. 7870W1616.
Description: Multilayer gateway fitting 16x2 - PER 16 x 1.5
Code: 7870W1616
Model: 7870W - Multilayer gateway fitting (TH profile) - PER (CO profile)
Dimensions: 16x2 - PEX 16 x 1.5
Technical specifications :
MultiSkin press fittings are designed for the following applications:
- Domestic water: +5°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
- Heating and cooling : -10 °C to +95 °C (operating temperature) and 10 bar (maximum operating pressure).
- Rainwater: -10°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).

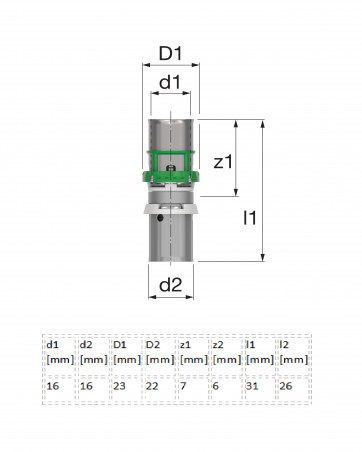

Dimensions :
| d1 [mm] | d2 [mm] | D1 [mm] | D2 [mm] | z1 [mm] | z2 [mm] | l1 [mm] | l2 [mm] |
| 16 | 16 | 23 | 22 | 7 | 6 | 31 | 26 |
Description :
MultiSkin metal press fittings for multilayer pipes.
MultiSkin press fittings are compatible with TH, H and U crimp profiles.
Check crimping immediately with the Visu-Control ring.Low connection pressure drop.
The Comap MultiSkin system for multilayer pipes combines all the advantages of plastic and metal pipes.
A lightweight, flexible tube with high resistance to expansion (inner aluminum layer).
A high-quality brass metal fitting, quick to install and reliable.
Crimp fittings are supplied with EPDM O-rings and feature the "leakproof if not crimped" function.
Performance :
The crimping solution makes it possible to connect a fitting in seven seconds, avoiding the risks associated with soldering.
Crimp fittings compatible with TH, H and U profiles and all major tool brands.
Improved hydraulics with reduced pressure drop (by 17 % on average compared with our previous range).
Safety :
Detachable Visu-Control® ring for visual and tactile crimping control.
Non-tight if uncrimped" technology: if uncrimped, the fitting allows water to pass through during pressure testing.
Protective cap to prevent the ingress of impurities.
5 Items
Data sheet
- Weight (kg) :
- 0,09
- Warranty:
- 2 years
Specific References
- EAN13
- 3430651463935
- EAN-13
- 3430651463935
- Location
- B1-F-027
- Reference to display
- COMRA7870W1616
- Supplier reference
- 7870W1616
