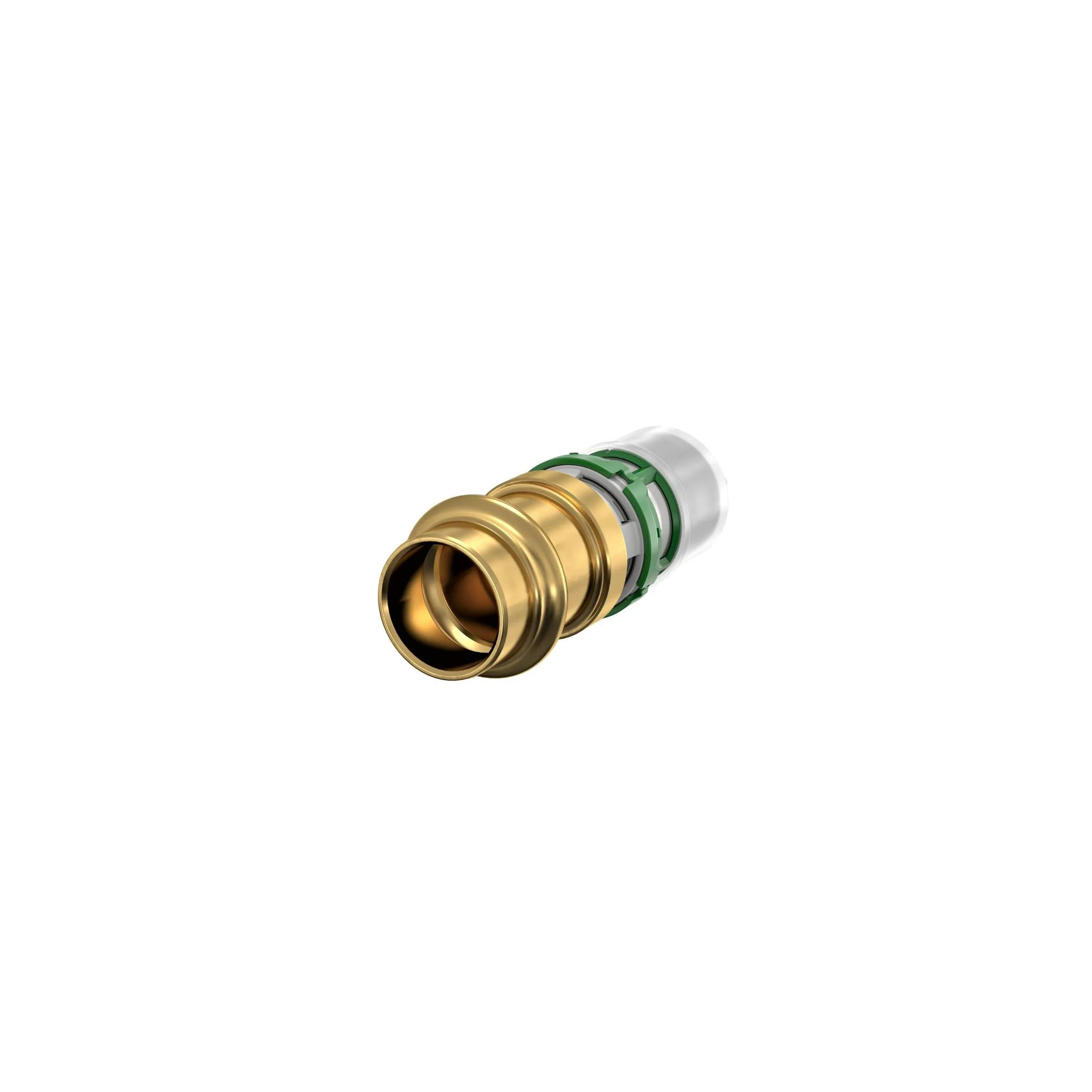

MultiSkin gateway copper press connection 28 mm, multilayer 32 x 2
€58.20
Tax Included
(48.50 € HT)
Référence COMAP : 7871W3228
Emplacement magasin : B1-F-027
MultiSkin gateway copper press connection 28 mm, multilayer 32 x 2 COMAP part no. 7871W3228
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
MultiSkin gateway copper press connection 28 mm, multilayer 32 x 2 COMAP part no. 7871W3228
Description: Copper bridge fitting 15 mm - Multicouche 26x2
Code: 7871W3228
Model: 7871W - Copper gateway fitting (V profile) - Multilayer (TH profile)
Dimensions : Prof.V28 - Skin 32x2
Technical specifications :
MultiSkin press fittings are designed for the following applications:
Domestic water: +5°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
Heating and cooling : -10 °C to +95 °C (operating temperature) and 10 bar (maximum operating pressure).
Rainwater: -10°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
MultiSkin press fittings are compatible with TH, H and U crimp profiles.
Low connection pressure drop.

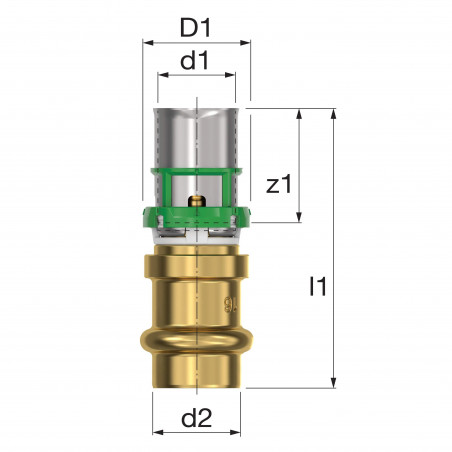

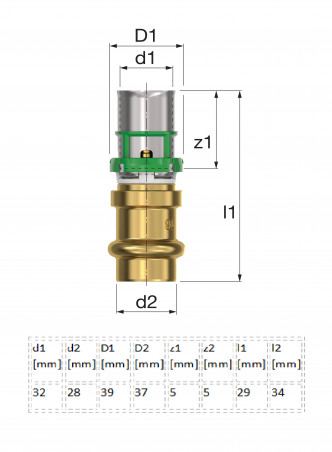

Dimensions :
| d1 [mm] | d2 [mm] | D1 [mm] | D2 [mm] | z1 [mm] | z2 [mm] | l1 [mm] | l2 [mm] |
| 32 | 28 | 39 | 37 | 5 | 5 | 29 | 34 |
Description :
The Comap MultiSkin system for multilayer pipes combines all the advantages of plastic and metal pipes. A lightweight, flexible tube with high resistance to expansion (internal aluminum layer). A high-quality brass metal fitting, quick to install and reliable.
Crimp fittings are supplied with EPDM O-rings and feature the "leakproof if not crimped" function.
Performance :
The crimping solution makes it possible to connect a fitting in seven seconds, avoiding the risks associated with soldering.
Crimp fittings compatible with TH, H and U profiles and all major tool brands.
Improved hydraulics with reduced pressure drop (by 17 % on average compared with our previous range).
5 Items
Data sheet
- Weight (kg) :
- 0,13
- Warranty:
- 2 years
Specific References
- EAN13
- 3430651464079
- EAN-13
- 3430651464079
- Location
- B1-F-027
- Reference to display
- COMRA7871W3228
- Supplier reference
- 7871W3228
