(15.33 € HT)
Passerelle MultiSkin 16 mm copper press connection, multilayer 20 x 2 COMAP reference 7871W2016

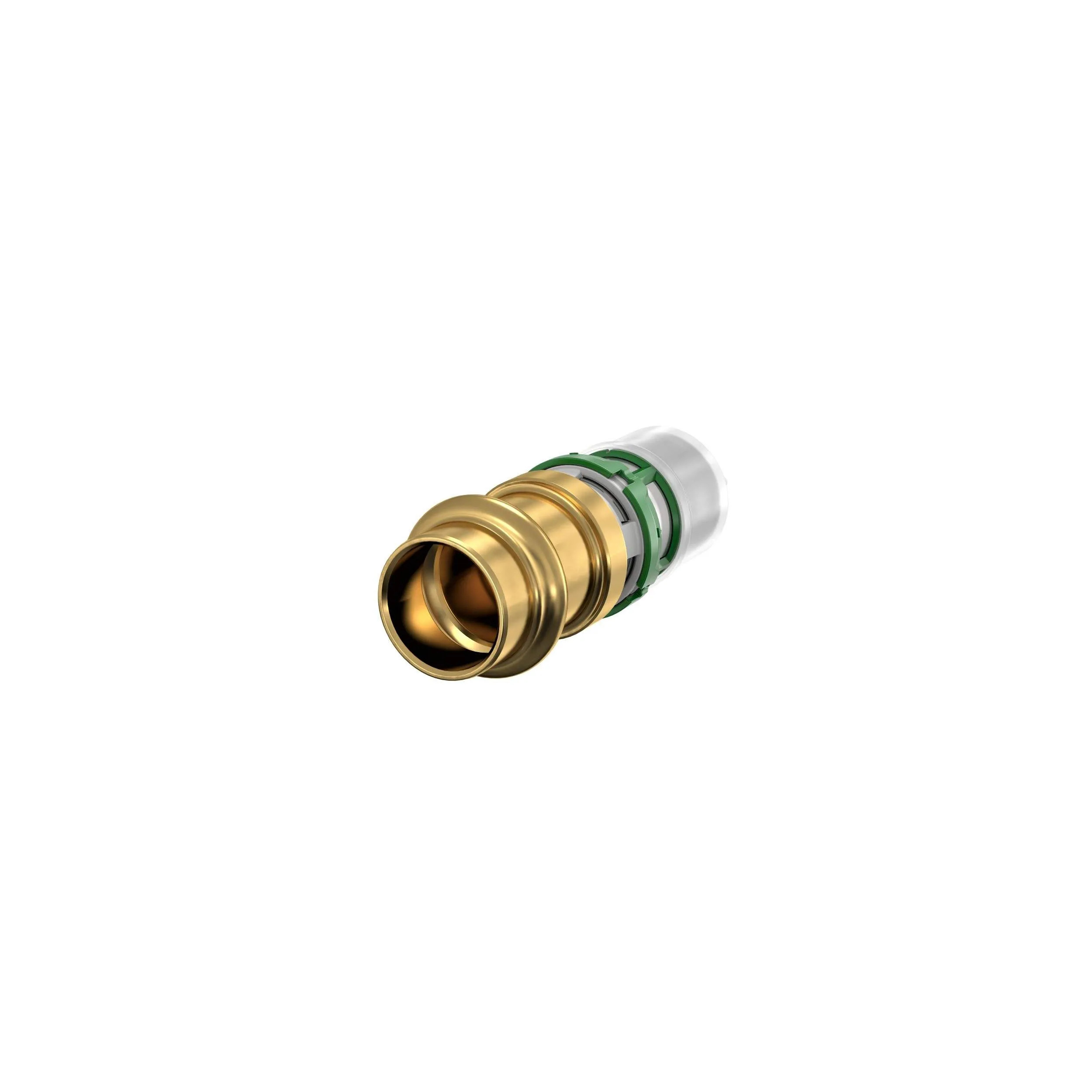

Description: Gateway copper 16 mm - Multilayer 20x2
Code: 7871W2016
Model: 7871W - Gateway Copper (Profile V) - Multilayer (Profile TH)
Dimensions : Prof.V15 - Skin 20x2
Technical specifications :
MultiSkin press fittings are designed for the following applications:
Domestic water: +5 °C to +95 °C (operating temperature) and 10 bar (maximum operating pressure).
Heating and cooling: -10°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
Rainwater: -10°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
MultiSkin press fittings are compatible with TH, H and U crimp profiles.
Low connection pressure drop.

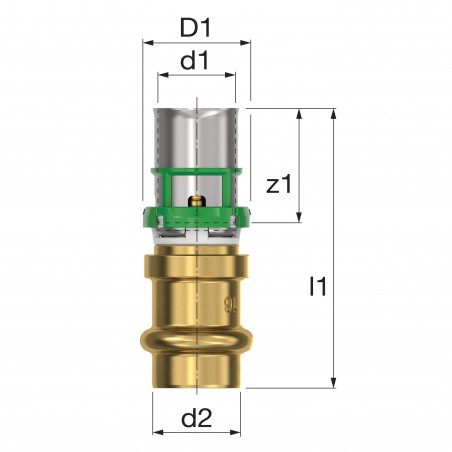

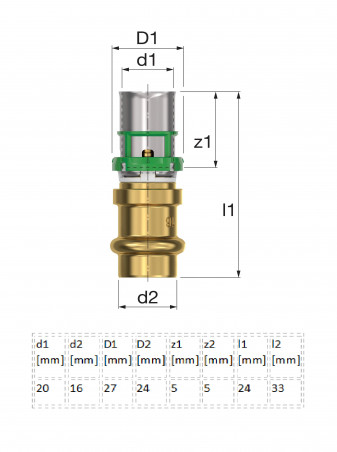

Dimensions:
d1 [mm] | d2 [mm] | D1 [mm] | D1 [mm] | D2 [mm] | z1 [mm] | z2 [mm] | l1 [mm] | l2 [mm] |
20 | 16 | 27 | 24 | 5 | 5 | 24 | 33 |
Description:
The Comap MultiSkin system for multilayer tubing combines all the advantages of plastic and metal tubing. A lightweight, flexible tube with high resistance to expansion (internal aluminum layer). A high-quality brass metal fitting, quick to install and reliable.
Crimp fittings are supplied with EPDM O-rings and feature the "not tight if not crimped" function.
Performances:
The crimping solution enables a fitting to be connected in seven seconds and avoids the risks associated with soldering.
Crimp fittings compatible with TH, H and U profiles, with all major tool brands.
Improved hydraulics with reduced pressure losses (by an average of 17% compared with our previous range).
