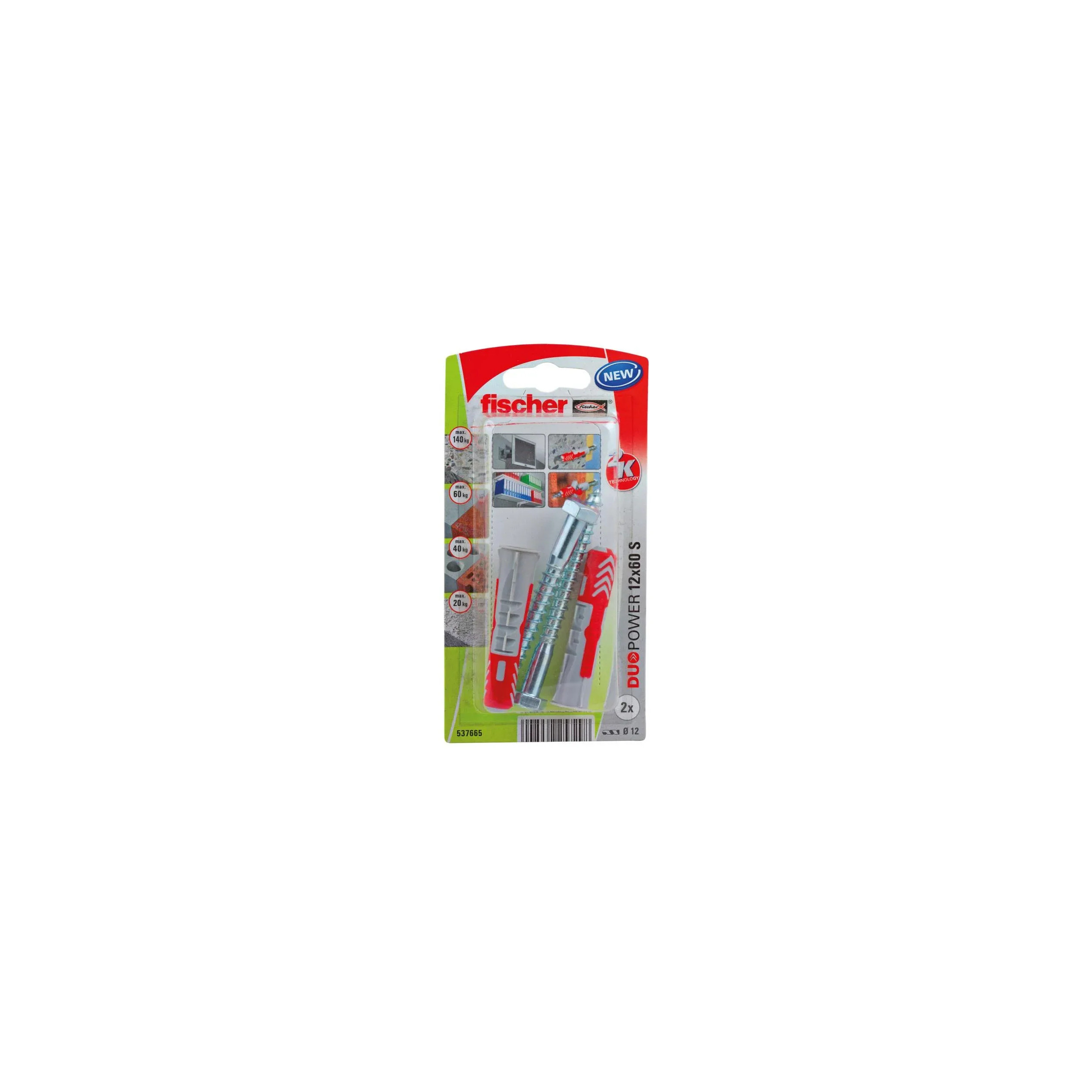

DUOPOWER dowels 12x60 with lag bolt 8x80, 2 pieces
€6.73
Tax Included
(5.61 €HT + Ecotaxe €0.01HT)
Référence Fischer : 537665
Emplacement magasin : A2-G-061
Multi-material dowels Fischer. DUOPOWER dowels 12x60 with lag bolt 8x80, 2 pieces reference 537665.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
The DuoPower offers very good strength thanks to its 2 components: the grey component made of high quality nylon automatically activates the optimal mode of operation depending on the construction material (expands, expands, forms a knot) for optimum hold. The expansion wings of the red component help to ensure safe expansion and provide additional security for the grey component. Finally, the screw is easy to screw in and the locking torque is easily felt. No rotation of the screw. The collar prevents the plug from slipping in the borehole.
Main features
- Combination of two materials for more performance.
- Safe operation for solid (expanding) and hollow and panel building materials (expanding/knotting).
- Easy installation: the narrow flange prevents the plug from slipping into the hole.
- Excellent feedback from the ankle - you can feel exactly when it is correctly positioned.
Benefits
- Bimaterial anchor for better performance and ingenious operation (expands, expands, forms a knot), depending on the substrate.
- Excellent "feel-good factor". You can feel exactly when the ankle is correctly positioned.
- The dowel is shorter, which ensures quick fixing without time-consuming drilling.
- The narrow flange prevents the peg from slipping in the borehole.
- Anti-rotation lugs prevent the plug from rotating in the hole during installation.
Applications
- Mailboxes
- Lamps
- Motion detectors
- Signs
Materials
- Concrete
- Solid brick
- Solid sand-lime brick
- Cellular concrete
- Brick with vertical perforations
- Perforated sand-lime brick
- Plasterboard
- Plasterboard and fibreboard
- Lightweight hollow concrete block
- Brick or concrete slabs or equivalent
- Natural stone
- Chipboard panels
- Plasterboard
- Solid block of light concrete
Details (building materials, loads, etc.) of the approval, if available, apply
Operation / Assembly
- The DuoPower is suitable for standby and through installation.
- The combination of the two materials and the multiple modes of operation (expands, expands, forms a node) broaden the range of applications with significantly higher loads.

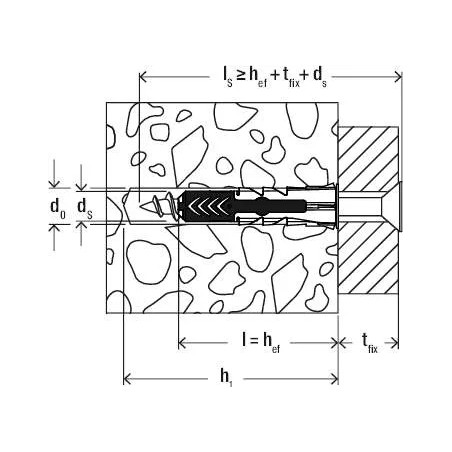

- The required length of the screw is determined as follows: length of the plug + thickness to be fixed + diameter of the screw.
- Suitable for wood screws, chipboard screws and double threaded screws.
- In the case of sheet and hollow materials, the smooth part of the screw must not be greater than the thickness to be fixed.
- The distance to the edges must be at least equal to the length of the peg.
13 Items
Data sheet
- Weight (kg) :
- 0,1
- Warranty:
- 2 years
Specific References
- EAN13
- 4048962257298
- EAN-13
- 4048962257298
- Location
- A2-G-061
- Reference to display
- FISCH537665
- Supplier reference
- 537665
