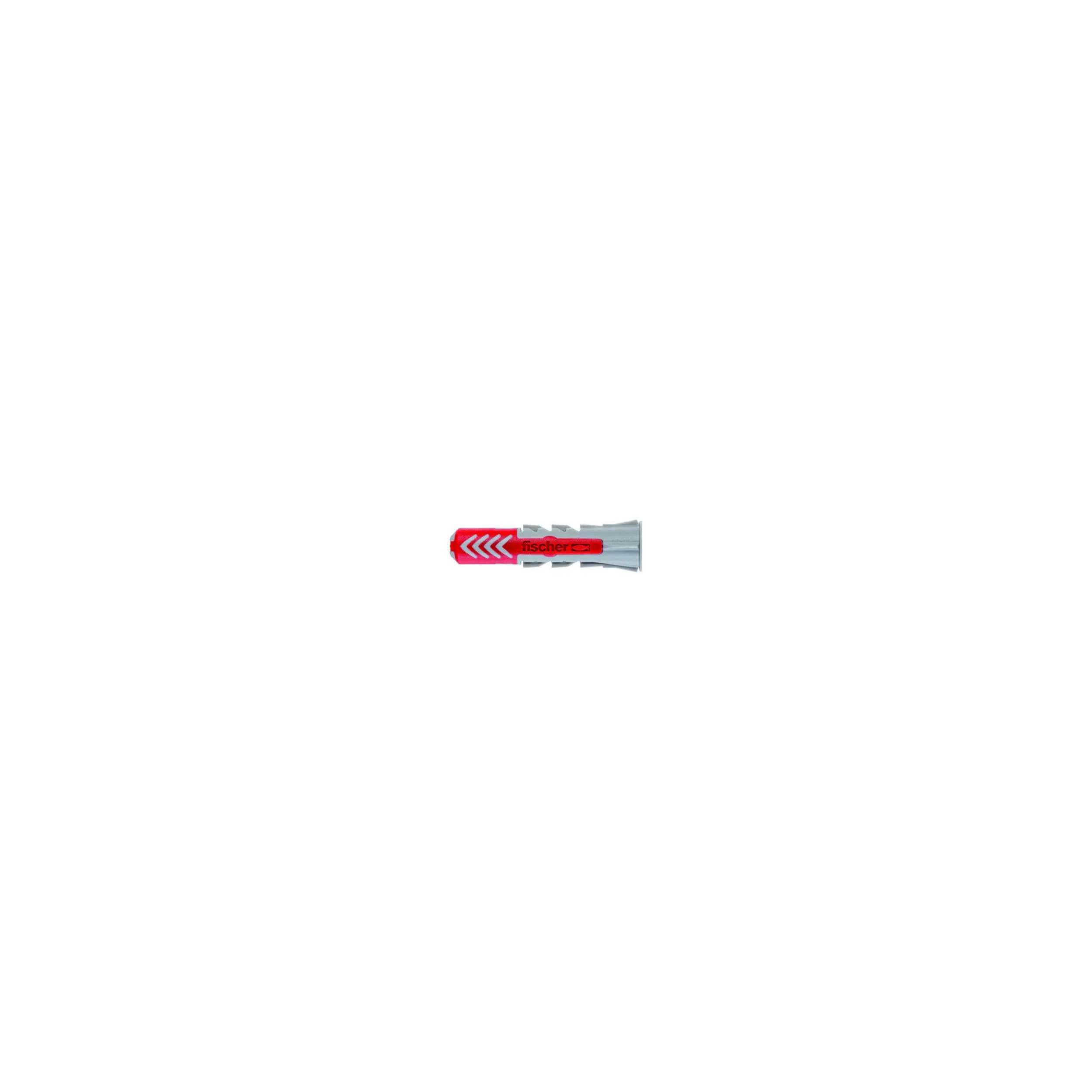

The DUOPOWER offers very good strength thanks to its two components: the grey component made of high-quality nylon automatically activates the optimum mode of operation depending on the construction material (expands, expands, forms a knot) for optimum hold. The expansion wings of the red component help to ensure safe expansion and provide additional security for the grey component. Finally, the screw is easy to screw in and the locking torque is easily felt. No rotation of the screw. The collar prevents the plug from slipping in the borehole.
Main features
Combination of two materials for more performance.
Safe operation for solid (expanding) and hollow and panel building materials (expanding/knotting).
Easy installation: the narrow flange prevents the plug from slipping into the hole.
Excellent feedback from the ankle - you can feel exactly when it is correctly positioned.
Benefits
Bimaterial anchor for better performance and ingenious operation (expands, expands, forms a knot), depending on the substrate.
Excellent "feel-good factor". You can feel exactly when the ankle is correctly positioned.
The narrow flange prevents the peg from slipping in the borehole.
Anti-rotation lugs prevent the plug from rotating in the hole during installation.
Applications
TV supports
Lamps
Wall shelves
Bathroom cabinets
Mailboxes
Frames
Roller blind
Curtain rods
Fixing of washbasins
Heating and sanitary fixtures
Bathroom and toilet equipment
Hanging cabinets
Extractor hoods
Materials
Concrete
Solid brick
Solid sand-lime brick
Cellular concrete
Brick with vertical perforations
Perforated sand-lime brick
Plasterboard
Plasterboard and fibreboard
Lightweight hollow concrete block
Brick or concrete slabs or equivalent
Natural stone
Chipboard panels
Plasterboard
Solid block of light concrete
Details (building materials, loads, etc.) of the approval, if available, apply
Operation / Assembly
The DUOPOWER is suitable for standby and through installation.
The combination of the two materials and the multiple modes of operation (expands, expands, forms a node) broaden the range of applications with significantly higher loads.
The required length of the screw is determined as follows: length of the plug + thickness to be fixed + diameter of the screw.
Suitable for wood screws, chipboard screws and double threaded screws.
In the case of sheet and hollow materials, the smooth part of the screw must not be greater than the thickness to be fixed.
The distance to the edges must be at least equal to the length of the peg.
Technical data
Nominal drill diameter
6
[mm]
Min. drilling depth
40
[mm]
minimum plate thickness
12,5
[mm]
Ankle length
30
[mm]
Min. screwing depth
35
[mm]
Chipboard / wood screws
4 - 5
[mm]
