Hunting PRESTO. Presto lightning valve DM33x42 reference 13001.

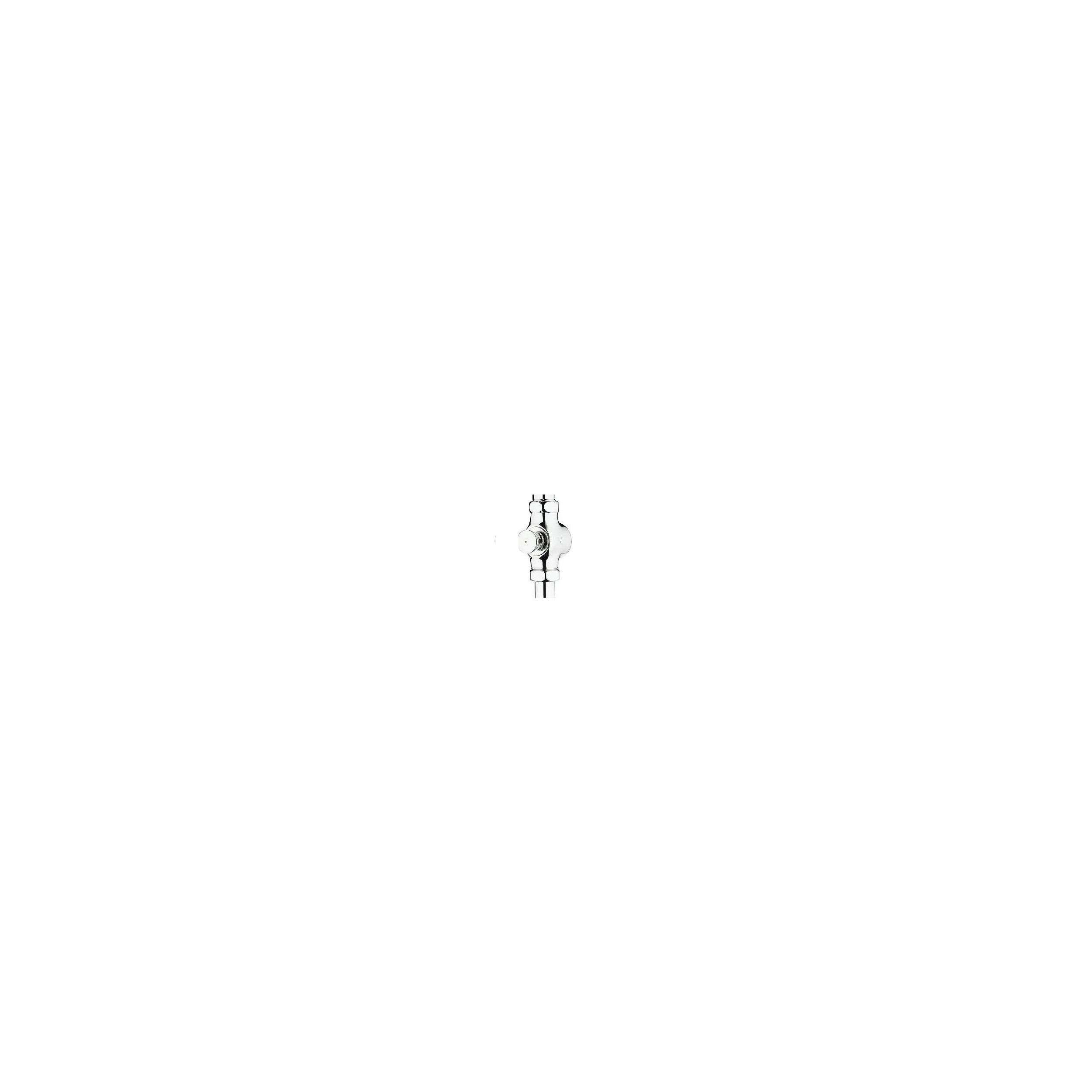

Presto lightning valve DM33x42
OPERATION
The flush valve allows the flow of water at the push of a button. It delivers a constant volume of water. BENEFITSVolume of water delivered: 9 litres |
|
Technical aspects :
Function:
This PRESTO ECLAIR flush valve starts the flow of water by simply pressing the push-button and closes automatically thanks to a pre-set constant time delay
Flow time : 7 to 9 seconds Volume of water delivered :
9 litres (the volume of water delivered can be reduced by turning the optional stopcock)
Material and finish colour :
Brass body and components with nickel-chromium treatment
Mechanism components made of polyacetal technopolymer (POM) ensuring resistance to corrosion and scaling.
Sealing made of Nitrile/EPDM elastomers
Standards / Approvals :
Brass body and components according to NF EN1982/CC754S, NF EN 12164 / CW614N, NF EN 12165 / CW617Nickel-Chromium surface treatment according to NF EN12540 / Resistance to neutral salt spray (NSS) : 200 h according to NF ISO 9227
Sanitary Conformity Certificate ATS n°A/ATS/0805-03 and n°A/ATS/0808-04 issued by the Service des Recherches et d'Ingénierie en Protection Sanitaire de la ville de Paris (SRIPS)
Recommended operating pressure : Minimum recommended: 1 bar / maximum recommended: 5 bar
Hydraulic supply :
Double male 1'' ¼ (33x42)
Outlet connection to flush pipe Ø 32 mm
Security:
Anti-siphonic device: ensures the protection of drinking water networks against possible upwelling of polluted water
|
Data sheet
Specific References
No customer reviews for the moment.
Weight (kg) :
Packaging:
Warranty:
Origin:
Weight (kg) :
0.9
Packaging:
1
Warranty:
2 years
Origin:
made in europe
