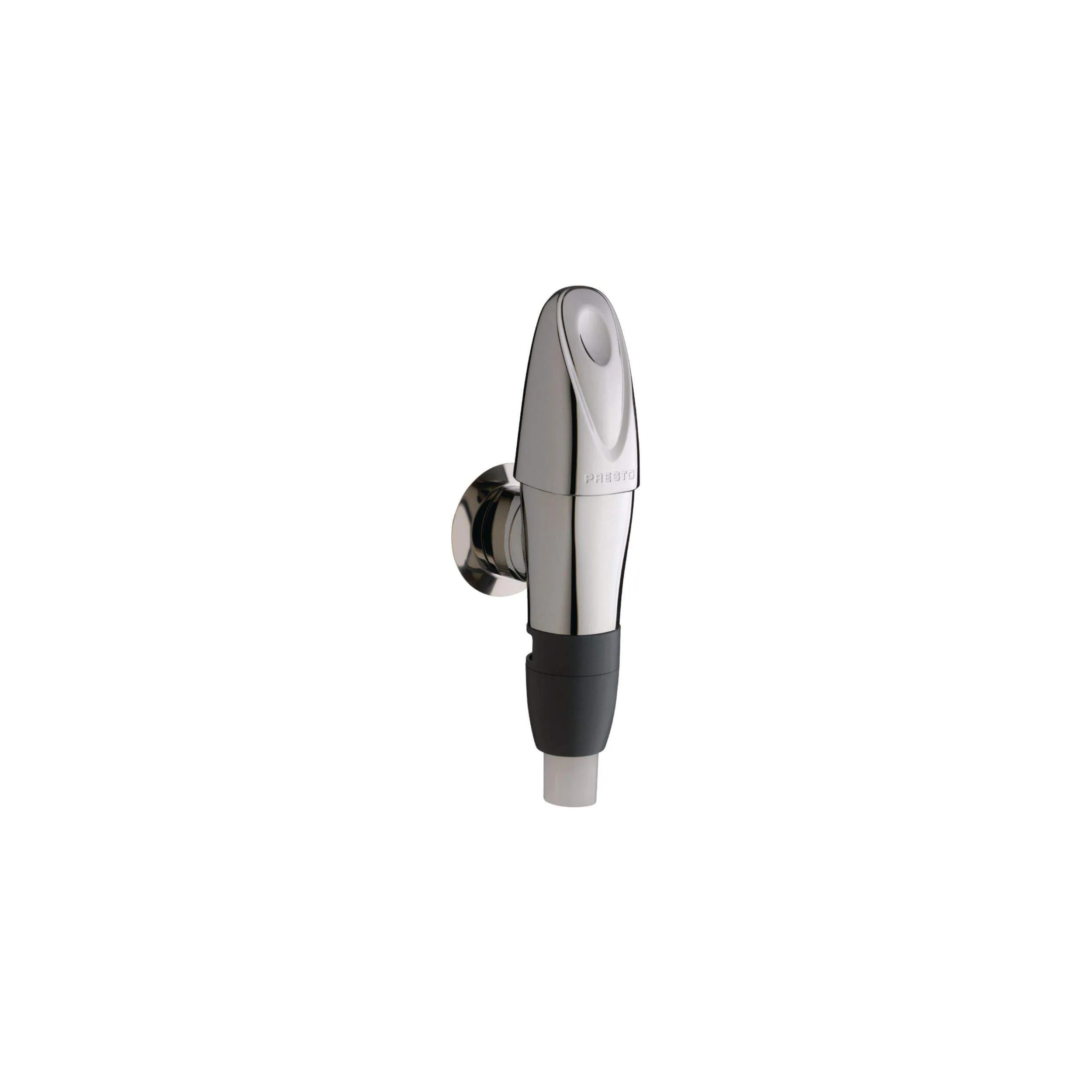

1000XL exposed flush timer valve
€106.85
Tax Included
(89.04 € HT)
Référence PRESTO : 14201
Emplacement magasin : B4-G-095
Hunting PRESTO. 1000XL exposed flush timer valve reference 14201.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
1000XL exposed flush timer tap.
Reference PRESTO 14201.
Suitable for installation with integrated shut-off valve
Recommended operating pressure: 1 to 5 bar
Adjustable flush volume by means of an adjustable knob
Anti-water hammer device
Automatic flow limiter ensuring a constant flow of 1 l/s, from 1.2 bar to 4 bar dynamic pressure
Flow time: 6 to 9 seconds
Operation : By simple pressure on the cover (soft release)
Hydraulic supply: G 3/4'' (20x27) right or left male bracket - Outlet with connection for Ø 28 mm flush pipe
Safety: Anti-siphonic device: protects drinking water networks against possible backflow of polluted water
Delivered with : 1 Ball shut-off valve - 1 Rosette - 1 Installation instructions
Standards / Approvals : Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
Nickel-Chromium surface treatment according to NF EN12540 - Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Technical specifications
- Length 51 mm
- Height 240 mm
- Weight 1.04 kg
- Material Brass
- Tint Chrome
- Type of product Flush valve
- Range PRESTO 1000 XL
- Duration of the warranty 10 years
- Flush in liter 6-9
- Specificity of fittings Mural
2 Items
Data sheet
- Weight (kg) :
- 1,04
- Warranty:
- 2 years
Specific References
- EAN13
- 3535770142010
- EAN-13
- 3535770142010
- Location
- B4-G-095
- Reference to display
- PRTRO14201
- Supplier reference
- 14201
