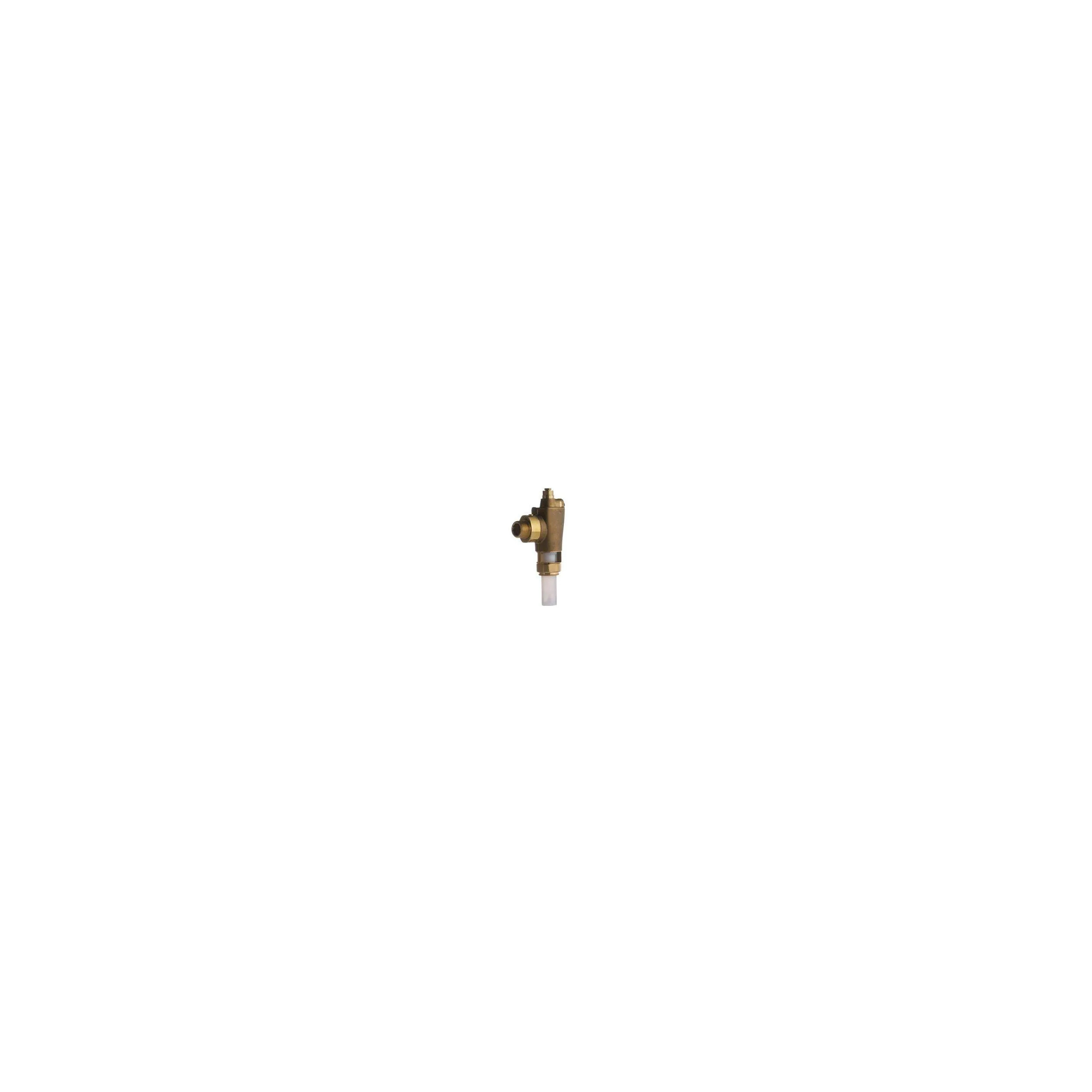

Presto 1000XL TC valve with stop

Recommended operating pressure :

• 1 to 5 bar

Hunting volume:

• 6 to 9 l, adjustable by means of a thumbwheel
• Anti-water hammer device
• Automatic flow limiter ensuring a constant flow of 1 l/s, from 1.2 bar to 4 bar dynamic pressure

Flow time :

• 6 to 9 seconds

Hydraulic supply :

• G 3/4'' male bracket (20x27)
• Outlet with connection for Ø 28 mm flush pipe

Material and finish colour

• Body and stopcock in raw brass

Security:

• Anti-siphonic device: ensures the protection of drinking water networks against possible upwelling of polluted water
• System S® prevents blockage in continuous flow and ensures complete flushing

Delivered with :

• 1 Ball valve
• 1 Installation instructions

Standards / Approvals :

• Acoustic class II
• Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
• Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
