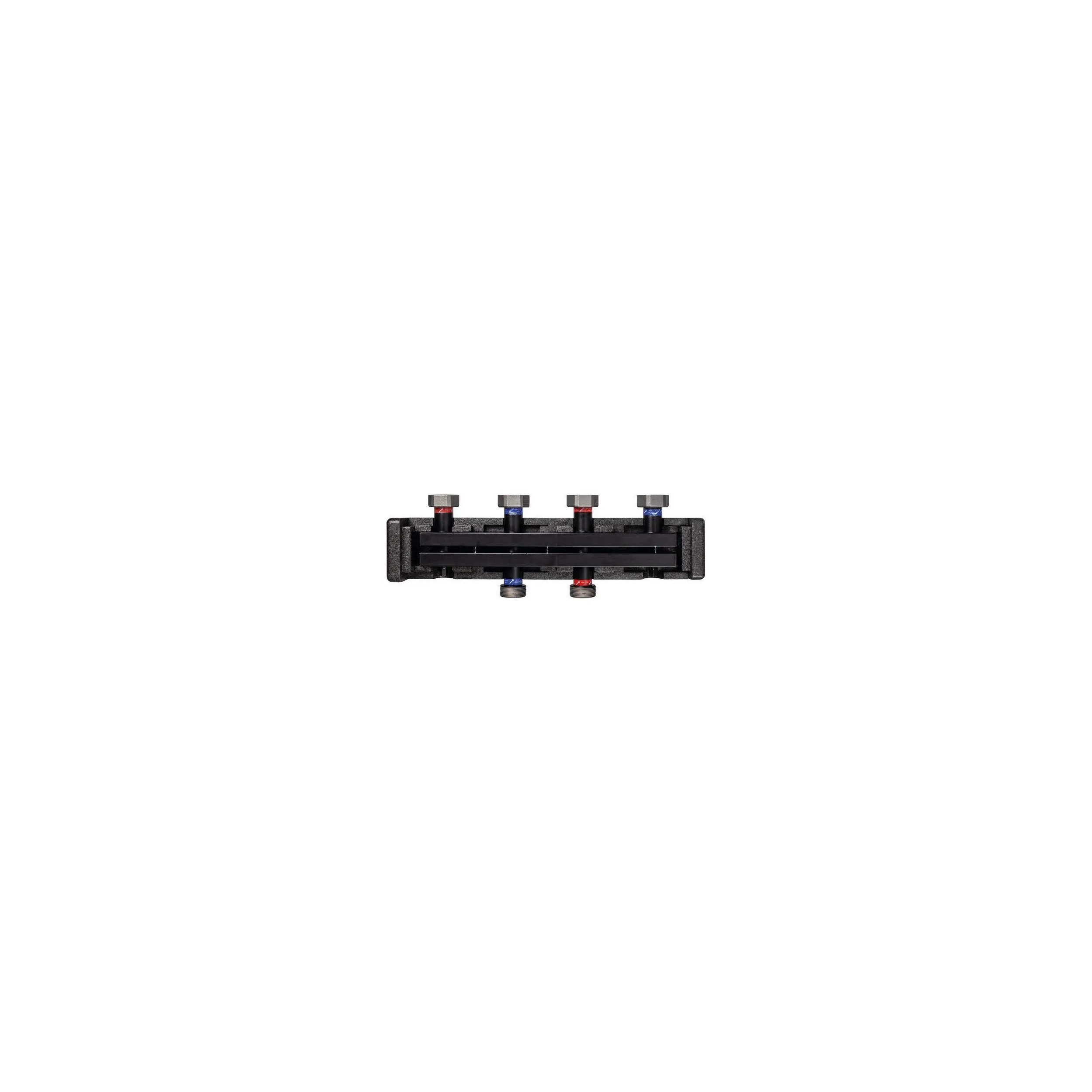

Heating manifold KSV 125, two circuits.
€338.69
Tax Included
(282.24 € HT)
Référence Afriso : 77310
Emplacement magasin : B2-G-050
Heating manifold KSV 125, two circuits.
Ref: 77310
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Heating manifold KSV 125, two circuits.
KSV 125 manifolds are used to distribute the heat transfer fluid. The heating circuits must be connected to the G1½'' thread using the gaskets in the kit. The connection to the boiler circuit must be sealed in exactly the same way. The KSV 125 HW manifolds are additionally equipped with an integrated hydraulic separator for hydraulic control of the system. The GW G½" side thread is provided for the installation of the drain valve or the immersion sleeve of the temperature sensor. In case it is not necessary to install these elements, the connection piece should be blinded with a plug. To connect the heating circuits, use the gaskets in the kit. To seal the connection to the boiler circuit, use Teflon tape. The KSV 125 collectors must be connected to heating circuits according to the marking on the connections: red color = supply, blue color = return from the system/to the heat source.
Distance between the axes of the pump group connections: 125 mm.
Maximum operating pressure: 6 bar.
Max power: 70 kW (where ΔT = 20°C).
Average max temperature: 110°C.
Ref: 77310
1 Item
Data sheet
- Weight (kg) :
- 6
- Main materials :
- Laiton
- Warranty:
- 2 years
Specific References
- EAN13
- 4049827168476
- EAN-13
- 4049827168476
- Location
- B2-G-050
- Reference to display
- VELCO77310
- Supplier reference
- 77310
