QAïTO 30 for large inserts and wood stoves

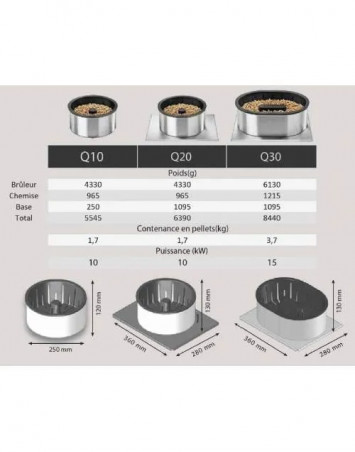

Dimension

Height of the cast iron burner: 115 mm
Width inside / outside of burner FONTE: 223 mm / 253 mm
Length int. / ext. of burner FONTE : 310 mm / 340 mm
Stainless steel plate width: 280 mm
Length of stainless steel plate: 360 mm
Height of the installed product: 130 mm

Capacity: 3.7 kg of pellets Power: 15 kW

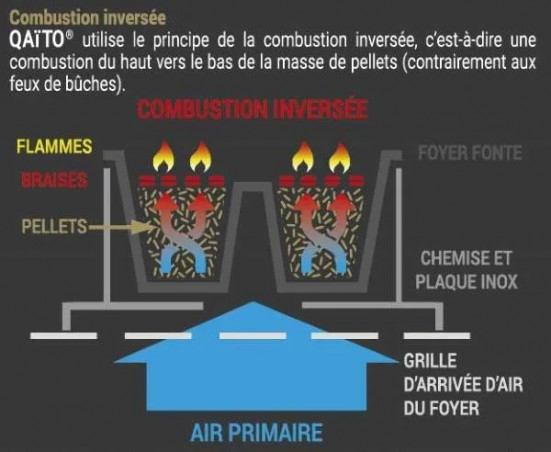

Operation of the QAïTO burner

Fill your QAïTO burner with pellets, then put a fire starter.
In less than 5 minutes, you will enjoy a generous and friendly fire that will burn for about an hour or more (*) and will heat you even longer thanks to the cast iron that has accumulated calories.
If you wish to restart your fire (**), add wood pellets to your QAÏTO over 4/5ths of the surface: the uncovered glowing embers will be used as firelighters. And there you go again for a new fire !
Cost of the flare-up: less than 0.75 € (price calculated with a 15 kg bag of pellets at 3.65 €/u)

The Plus products of QAïTO

• Ignition safety
• Economical and ecological: ~ 2.9 kg of pellets / hour, for a very low cost (~ 0.75 € refill)
• Cleanliness of the fireplace and the glass
• Fast temperature rise
• Fires up 3 times faster than wood
• Can be installed in any wood-burning stove or insert (***), without any work and without electricity!

(*) Each installation, each home, each lifestyle being a particular case, the manufacturer cannot commit to an exact combustion time.

(**) Allow about 1 refill for 1h1/4

(***) The supply air to the fireplace - primary air - must come from the grate at the bottom of the insert or wood stove.
