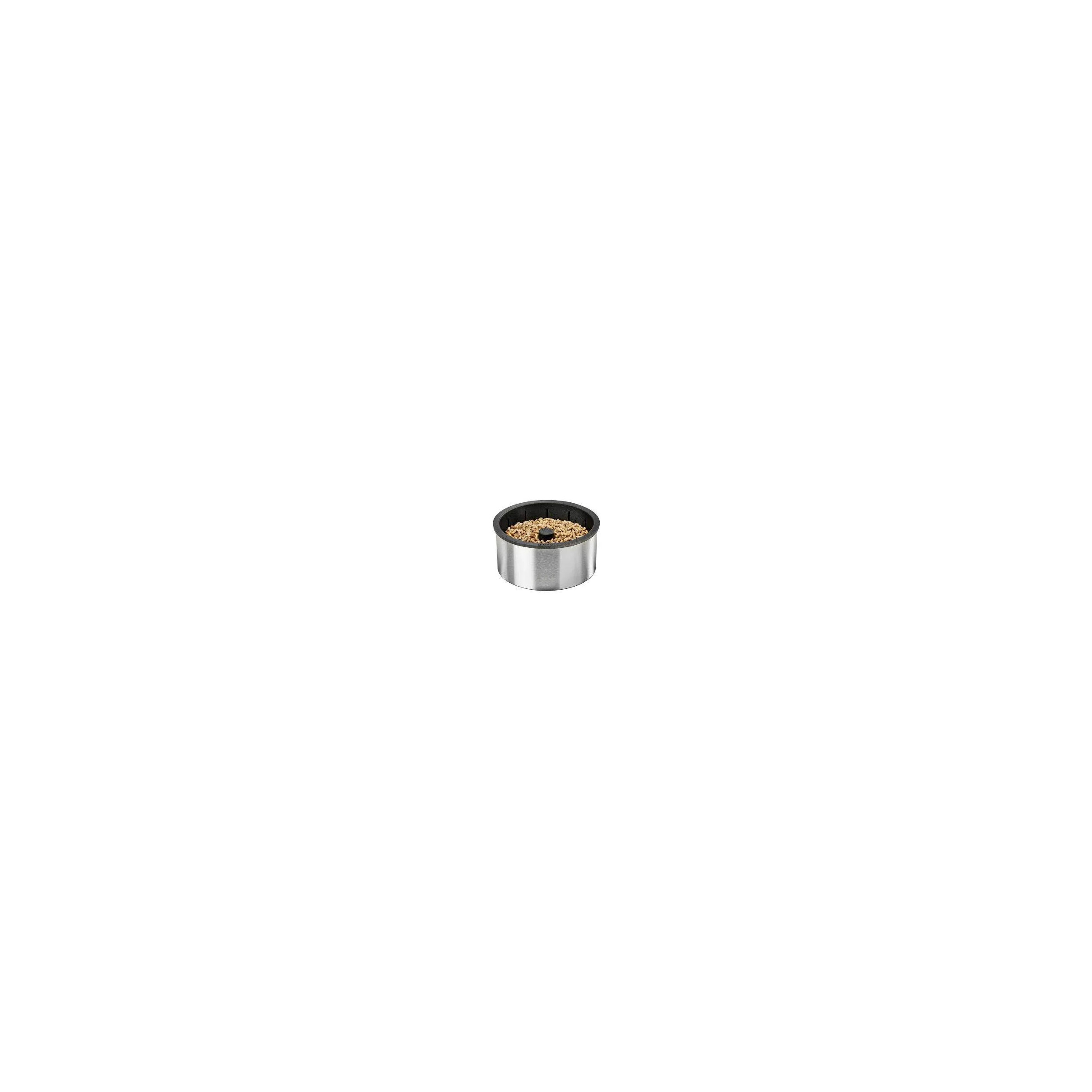

QAïTO 10 for small inserts and wood stoves

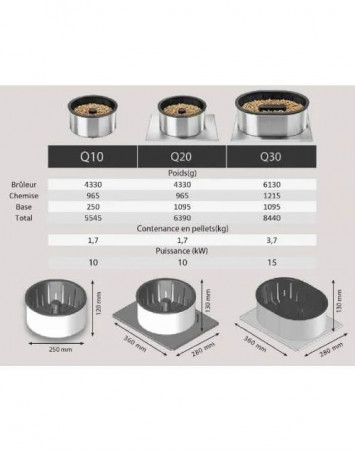

Features

Height of the cast iron burner: 105mm
Inner / outer diameter of cast iron burner: 220mm / 250 mm
Diameter of the round stainless steel plate: 250mm
Height of the installed Q10: 120 mm

Capacity: 1.7 kg of pellets Power: 10 kW

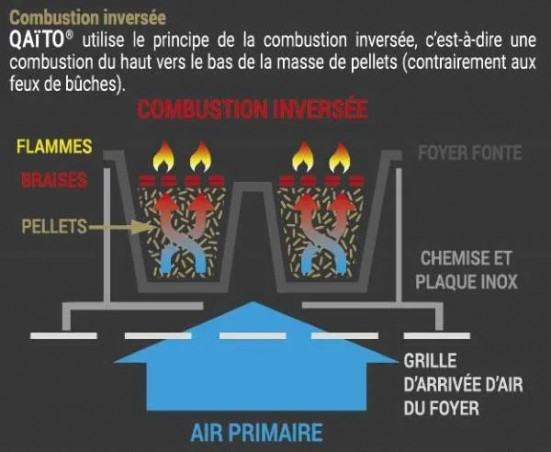

Operation of the QAÏTO burner

Fill your QAITO burner with pellets, then put a fire starter.
In less than 5 minutes, you will enjoy a generous and friendly fire that will burn for about an hour (*) and will heat you even longer thanks to the cast iron that has accumulated calories.
If you wish to restart your fire (**), add wood pellets to your QAÏTO over 4/5ths of the surface: the uncovered glowing embers will serve as firelighters. And there you go again for a new fire !
Cost of the flare-up: less than 0.45€ (price calculated with a 15 kg bag of pellets at 3.65 €/u)

The Plus products of QAÏTO

• Ignition safety
• Economical and ecological: 1.7 kg of pellets / hour, for a very low cost (~ 0.45 € per refill)
• Cleanliness of the fireplace and the glass
• Fast temperature rise
• Fires up 3 times faster than wood

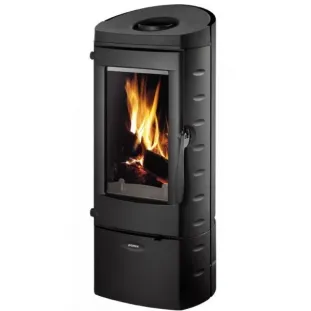

• Can be installed in any wood-burning stove or insert (***), without any work and without electricity!

(*) Each installation, each home, each lifestyle being a particular case, the manufacturer cannot commit to an exact combustion time.
(**) Allow for approximately 1 recharge per hour
(***) The supply air to the fireplace - primary air - must come from the grate at the bottom of the insert or wood stove.
