Dowel-anchored pivot kit 25x25 mm for steel gates with threshold
€45.68
Tax Included
(38.07 €HT + Ecotaxe €0.01HT)
Référence I.N.G Fixations : A010800
Emplacement magasin : A2-G-011
Gate pivots I.N.G Fixations. 25x25 mm dowel pivot kit for steel gates with threshold part no. A010800.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Dowel-anchored pivot kit 25x25 mm for steel gates with I.N.G threshold FIXATIONS part no. A010800

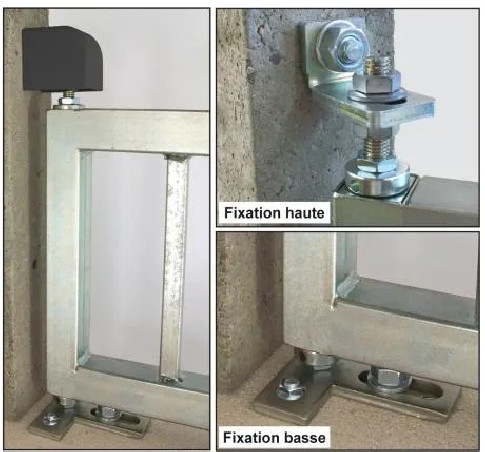

Dowel-anchored gate pivot kit for steel gates with threshold, 3-hole low mounting.
Square: 25x25 mm.
External dimension of gate tube: 30 mm.
Load capacity: 150 kg per leaf.
Easy to install.
Advantage: the top bracket is attached, then the gate is installed.
Cap included: patented, non-removable, 3 height settings and UV protection.

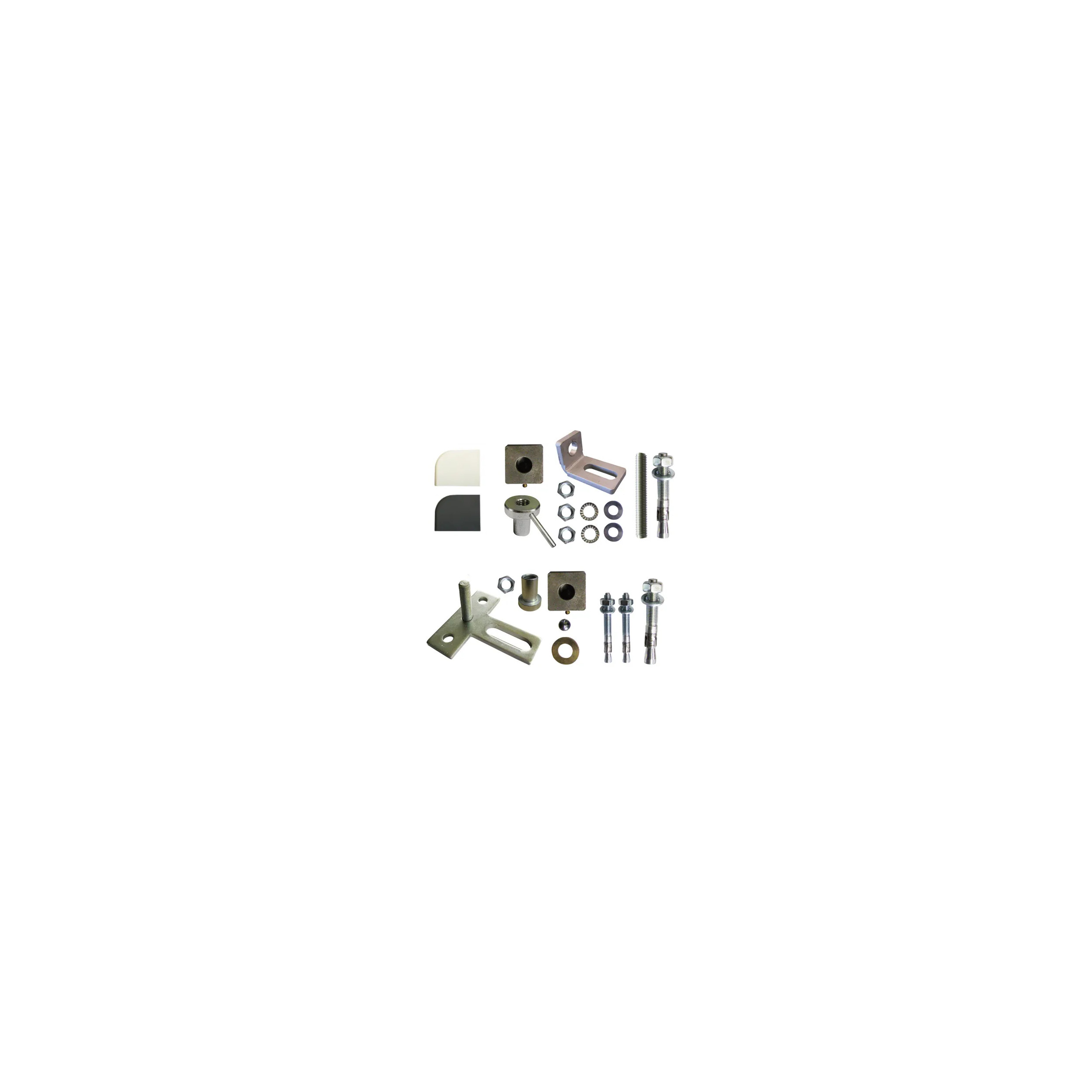

Box contents :

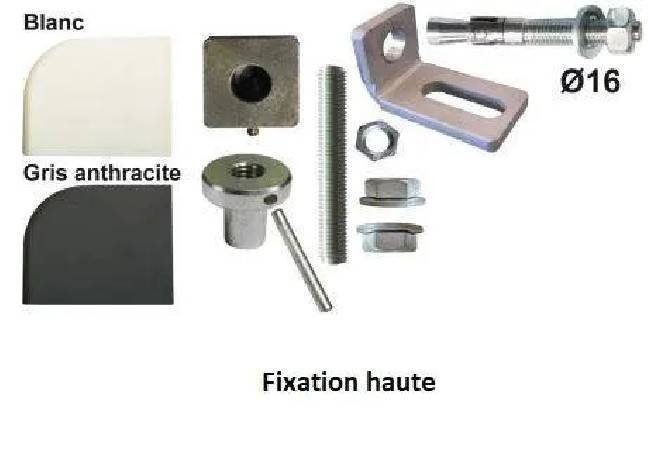

- 1 top mount :
- 1 anthracite grey cap.
- 1 white cap.
- 1 top bracket.
- 1 M14 x 100 threaded rod.
- 2 M14 lock nuts.
- 1 M14 nut.
- 1 Ø16 threaded stud.
- 1 cylindrical ring.
- 1 smooth stem.
- 1 square (to be welded to the gate - Ø18 hole).
- 1 bottom bracket :
- 1 3-hole bass plate.
- 1 cylindrical ring.
- 1 Ø18 brass washer.
- 1 Ø18 steel ball.
- 1 Ø16 threaded stud.
- 2 Ø10 threaded studs.
- 1 M14 nut.
- 1 square (to be welded to the gate - Ø18 hole).
2 Items
Data sheet
- Length (cm):
- 3
- Weight (kg) :
- 0,5
- Warranty:
- 2 years
Specific References
- EAN13
- 3509090108001
- EAN-13
- 3509090108001
- Location
- A2-G-011
- Reference to display
- INGPIA011000
- Supplier reference
- A010800
