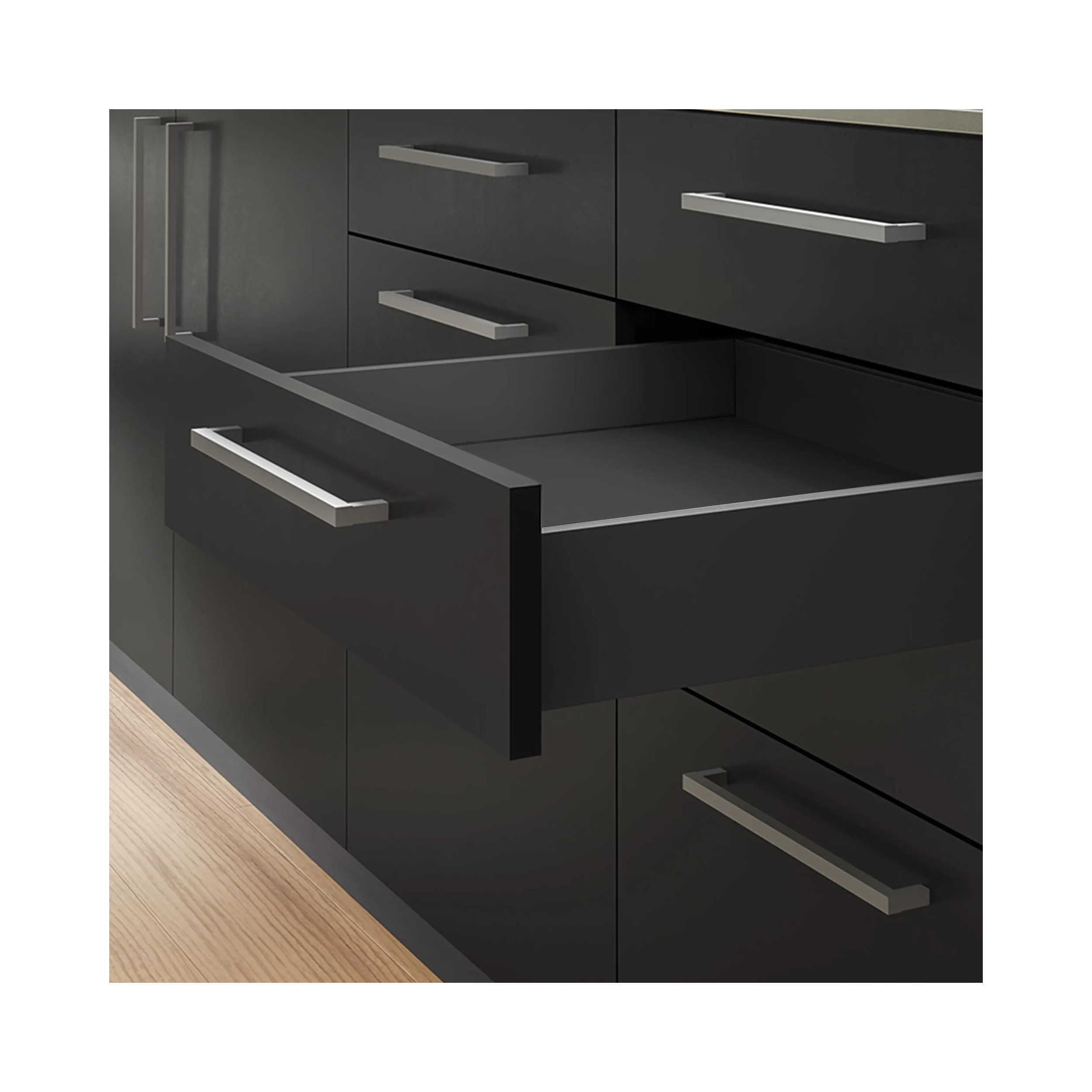

Kitchen drawer set with soft-close, anthracite grey, depth 500 mm height 2047 mm
€49.10
Tax Included
(40.92 € HT)
Référence Emuca : 3171935
Emplacement magasin :
Kitchen drawer set with soft close, anthracite gray, depth 500 mm height 2047 mm EMUCA part number 3171935
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Kitchen drawer set with soft close, anthracite gray, depth 500 mm height 2047 mm EMUCA part number 3171935
| Size | Depth 500 mm |
| Color | Charcoal grey |
| Dimensions (1 UN) | 24,5 x 6 x 53 |
| Weight | 4.5 Kg |
| Material | Steel |
| Components | 1 pair of runners, 1 pair of sides, 1 pair of front brackets, screws and mounting instructions |
Product features

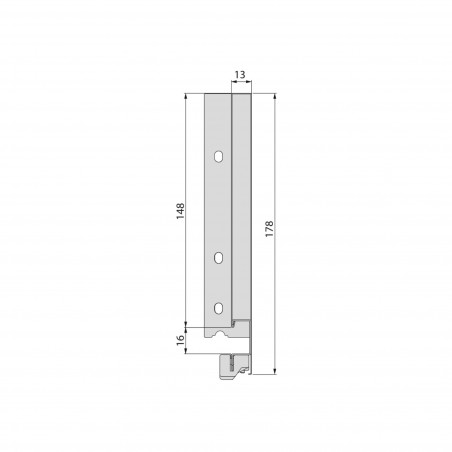

- Fittings kit required for the assembly of an external drawer with a height of 178 mm and a depth of 500 mm, not including the bottom, front and back panels.
- Installation in modules with a side thickness of 16 mm.
- Synchronized full-extension slides, with soft closing and load capacity up to 40 kg.
- Drawer front adjustment: ±2mm vertical and ±1mm horizontal.
- Made of anthracite grey painted steel.
Product Information:

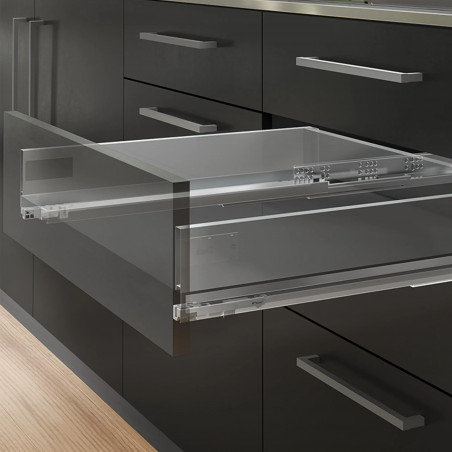

Vertex kitchen and bathroom drawer set with all the necessary elements for its assembly. It is the optimal solution for your kitchen, bathroom or wardrobe furniture with an elegant design in anthracite gray and white. Each set consists of all the elements necessary to assemble an external drawer with a height of 178 mm in modules with a side thickness of 16 mm. Includes: two side panels, a set of soft-close guides, a set of liner covers and front drawer clips.
The metal side panels are made of steel with anthracite grey and white paint finish, allowing the drawer front to be adjusted ± 2 mm vertically and ± 1 mm horizontally. The guides are fully extendable with soft closing and allow a maximum load of 40 Kg for the drawer.

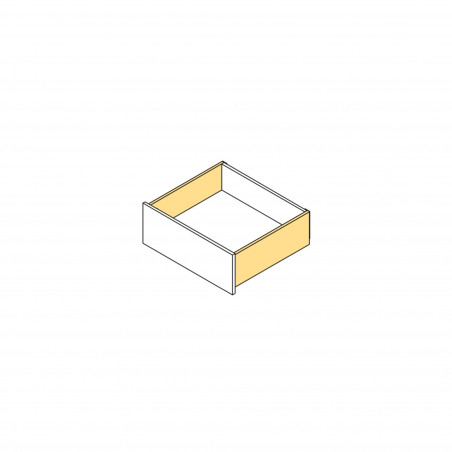

You will only need to add the panels for the bottom, back and front of the drawer, with the correct dimensions.
10 Items
Data sheet
- Weight (kg) :
- 4,5
- Warranty:
- 2 years
Specific References
- EAN13
- 8432393136721
- EAN-13
- 8432393136721
- Location
- Reference to display
- EMUKI3171935
- Supplier reference
- 3171935
