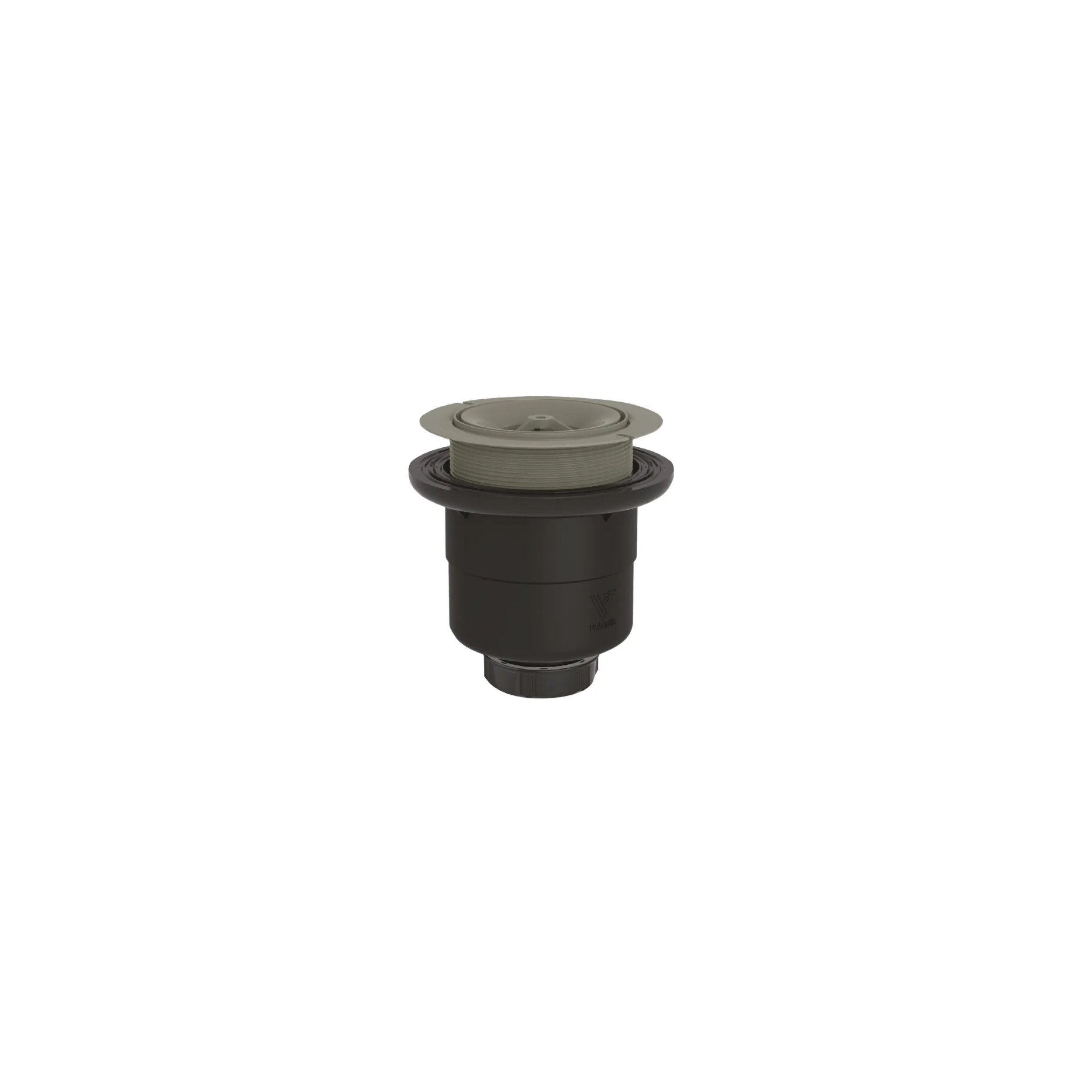

Vertical shower drain NF for D. 90 mm shower tray, without VALENTIN hood reference 55310020600

Product type: B

Description:

Drain for 90 mm diameter shower tray already fitted with grate or drain cover.
Without cover, clamping from 4 to 25 mm, vertical outlet to be screwed and glued.
Flow rate from 29 l/min to 45 l/min depending on clamping (NF standard requirement 24 l/min), Autofix seal, cleanable without tools.

- Bung without cover

- Tightening 4 to 25 mm

- Vertical outlet to screw and/or glue

- Autofix joint

- 50 mm water clearance

- Cleanable without tools

- Flow rate: 29 to 45 l/mn depending on tightening (NF standard 24 l/mn)

This drain is designed for a 90 mm diameter drain tray already fitted with a grate or drain cover.

In fact, this drain is sold without a cover. It offers several advantages: a 4 to 25 mm clamp on the tray to adapt to its thickness, a vertical outlet to be screwed and glued onto the 40 mm diameter pipe, a high flow rate of 29 l/mn to 45 l/mn depending on clamping (NF standard requirement 24 l/mn).
The inner parts of the bung are pearly grey in color to be very discreet under the tray grate.

This bung with its plastic body is very easy to install thanks to its Autofix joint and very easy to clean thanks to the collection cup.

It also allows direct access to the drain if required.

Supplier: Valentin

Supplier reference: 55310020600
