66x76 female flange connection
€120.54
Tax Included
(100.45 € HT)
Référence GEBO-G.B.I.P : 01.220.01.07
Emplacement magasin : B5-G-015

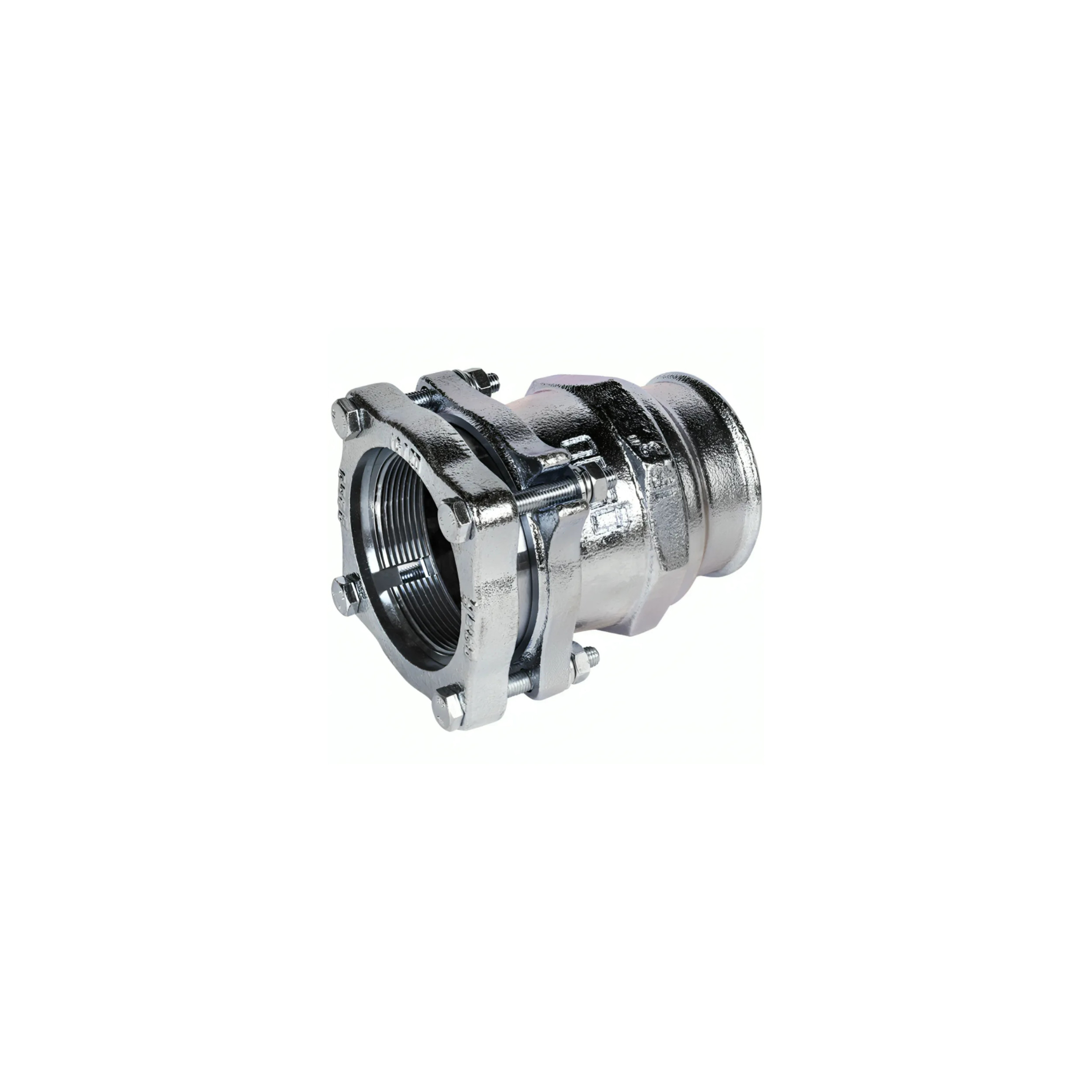

Female coupling GEBO-G.B.I.P. 66x76 female flange connection reference 01.220.01.07.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
2"1/2 (66x76) female flange connection steel pipe 76.1 mm outside outside GEBO part no 01.220.01.07.
Product type : IF type steel flange fitting
Description :
Material: Malleable cast iron
DN: 65
Female thread: 2"1/2 (66x76)
For steel pipe: 76.1 mm outside
Standards: DIN EN 10255, DIN 10220 Series 1
Areas of application :
Drinking water installations
Drinking water connection lines
Sprinkler systems
Compressed air lines
Oil tank filling lines (according to regulations)
Transported materials:
Water
Compressed air
Fuel oil (DIN 51603-1)
Operating pressure:
Water (max. 25°C): max. 10 bar (up to 3/4″), max. 16 bar (from 1″)
Heating water (max. 80°C): max. 6 bar
Compressed air: max. 12.5 bar
Fuel oil: max. 6 bar
Sprinkler (VdS): max. 12.5 bar
Certificates and approvals:
Water: Sprinkler (from DN 25): VdSDVGW W534
DVGW Reg. No.: DW-8511AU2216
Fuel oil: DIBT test authorization, approval No.: Z-38.4-212
ACS certification
Supplier: GEBO
Order No: 01.220.01.07
3 Items
Data sheet
- Length (cm):
- 7.61
- Main color :
- Grey
- Weight (kg) :
- 1.5
- Packaging:
- 1
- Threads :
- 1/2" (15x21)
2"1/2 (66x76)
3/4" (20x27) - Connection type :
- Female
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 4019576001775
- EAN-13
- 4019576001775
- Location
- B5-G-015
- Reference to display
- HAGRF66
- Supplier reference
- 01.220.01.07
