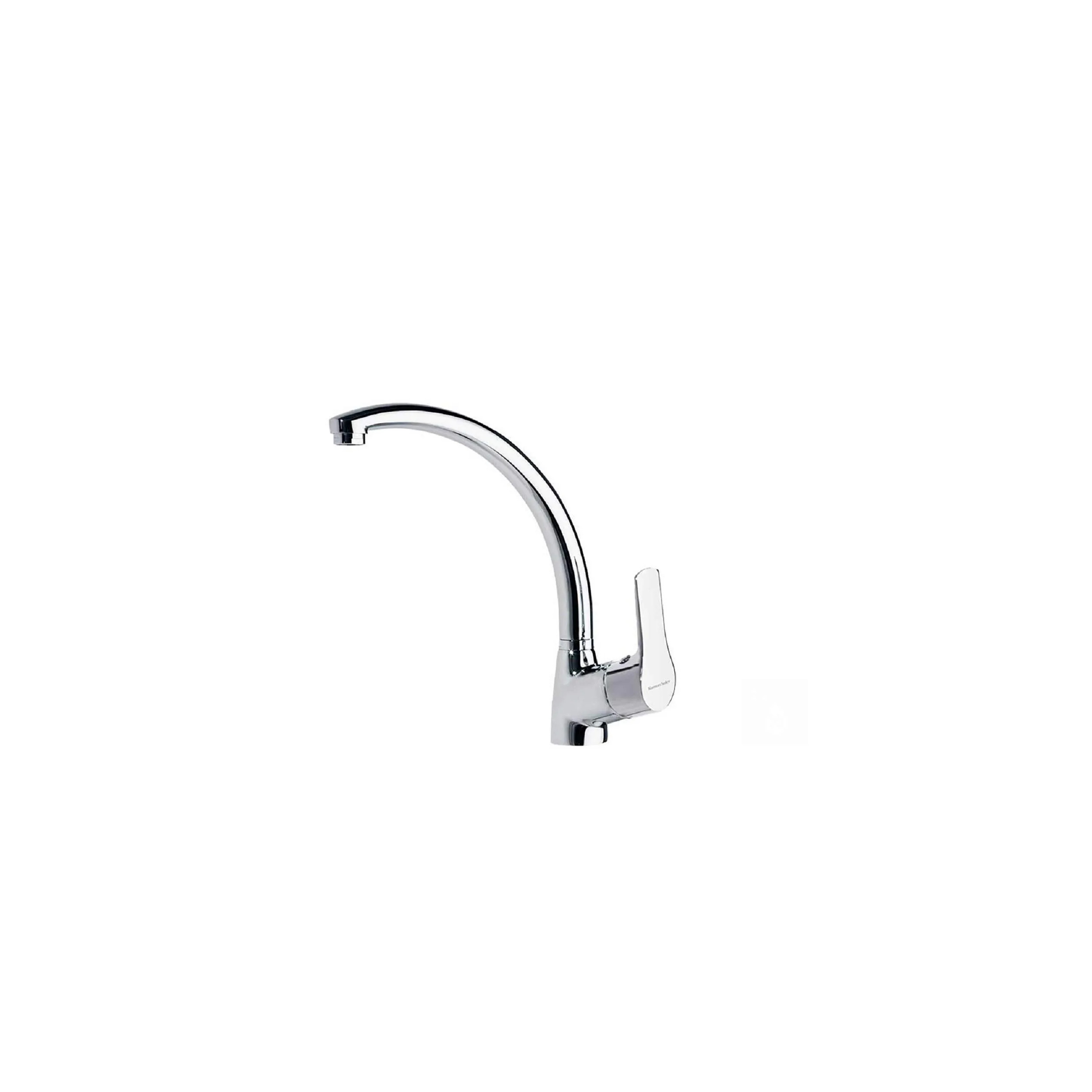

Single-lever sink mixer Titanium, chrome RAMON SOLER reference 1892

- Product type: sink mixer.

- Description:

Titanium swivel high-molded spout sink mixer.

Collection: Titanium energy.

Finish: chrome.

Location: kitchen.

Category: sink.

Certification: NF IA E0 C2 A3 U3.

Technical specifications:

- CSTB certification with ECAU.

- Ø35 mm ceramic cartridge.

- C2 water-saving system through two-phase lever opening.

- Flow rate at 3 bar: 12 l/min.

- Resistant to thermal and chemical shocks.

- 5-year warranty on fittings and 3-year warranty on accessories.

- Operating pressure 1-5 bar. Recommended at 3 bar.

- Withstands static pressures equal to or less than 10 bar and water hammer up to 25 bar.

- Noise level at 3 bar: less than 20 dB.

- Recommended hot water temperature 55ºC, maximum operating temperature 65°C, maximum 1h at 90°C.

- Chrome-plated surface: 15 microns nickel thickness, 0.3 microns chrome.

Tests :

- Tightness, flow, mechanical behavior under pressure, mechanical strength, dimensional, acoustic and corrosion tests.

- Made to the requirements of European Standards EN 817, EN 248.

Composition and spare parts:

- Handle: 1800IFV-35 (300110).

- Index: DT1-CN (252825).

- Cartridge fixing nut: 4980 (252834).

- Cartridge nut: TSC350 (253014).

- Temperature-limiting sleeve: ALT350 (300062).

- Cartridge: 35200 (251781).

- Spout : CC06-2 (252942).

- Adapter: 1430 (241269).

- Screw nut: TP3/8X2 (AAZ305358).

- Aerator: 1522 (250719).

- Reinforcement base: BRF02 (AAZ304483).

- Fixing bag: BSU (AAZ304484).

- Part number: 1892.

- Supplier: RAMON SOLER.
