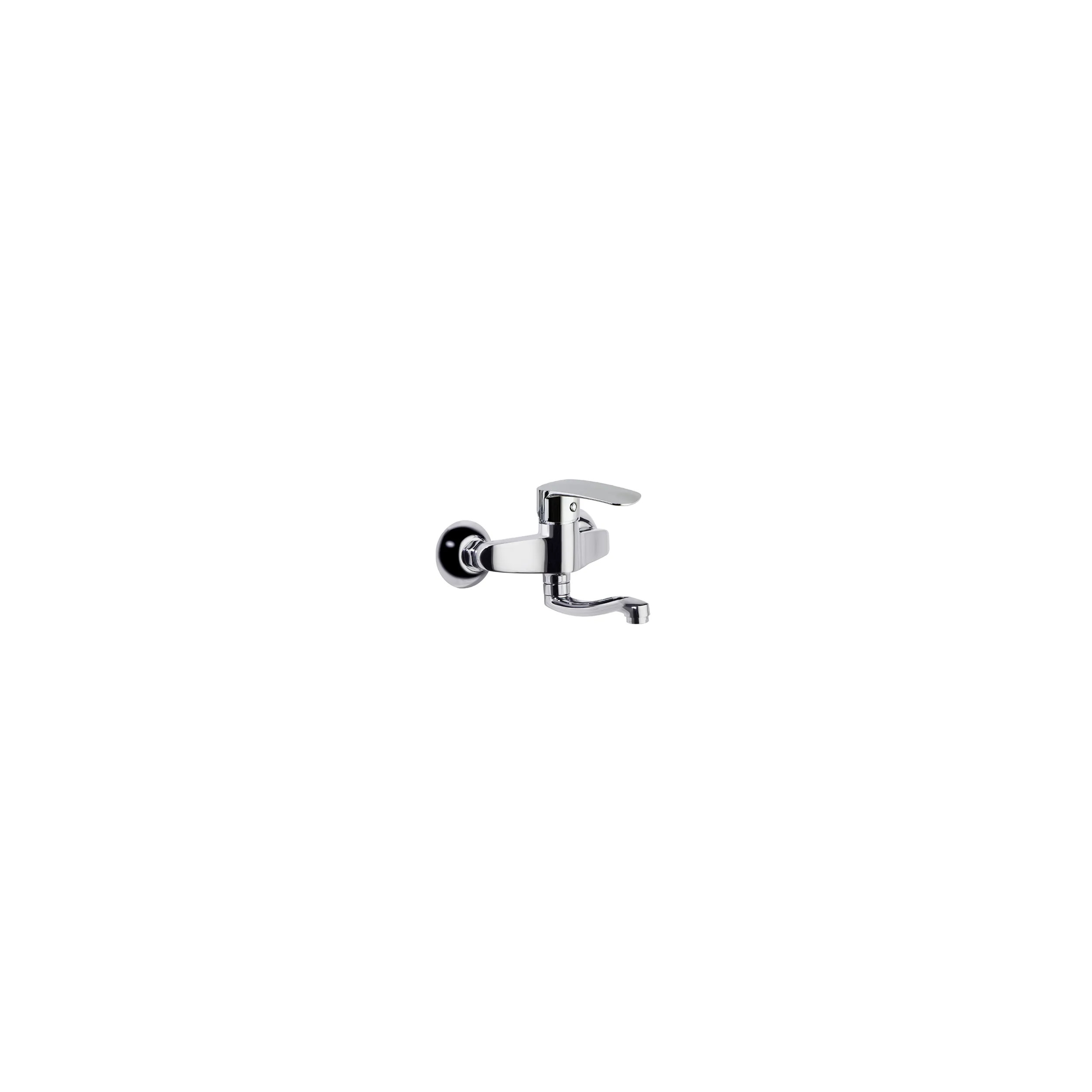

New fly" wall-mounted sink mixer 140mm projection.
€101.45
Tax Included
(84.54 € HT)
Référence Ramon Soler : 570701CCB14
Emplacement magasin : A7-D-040
New fly" wall-mounted sink mixer 140mm projection.
Reference 570701CCB14.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
New fly" wall-mounted sink mixer 140mm projection RAMON SOLER reference 570701CCB14.
Technical specifications:
● CSTB certification with ECAU ● Ø35 mmceramiccartridge.
● C2 water-saving system through two-phase lever opening.
● Flow rate at 3 bar: 12 l/min at outlet.
● Resistant to thermal and chemical shocks against legionella.
● Operating pressure between 1-5 bar. Recommended at 3 bar.
● Withstands static pressures equal to or less than 10 bar and water hammer up to 25 bar.
● Noise level at 3 bar: less than 20 dB.
● Comfort benefits in terms of fidelity, sensitivity and comfort in temperature selection.
● Recommended hot water temperature 55ºC. Maximum operating temperature 65°C. Maximum 1h at 90°C.
● Chrome-plated surface: 15 microns thick nickel, 0.3 microns chrome.
● Termostop Block system for limiting the maximum hot water temperature.
3 Items
Data sheet
- Weight (kg) :
- 1,5
- Finishes :
- Chromé
- Warranty:
- 2 years
Specific References
- EAN13
- 3666545514142
- EAN-13
- 3666545514142
- Location
- A7-D-040
- Reference to display
- RASMI570701CCB14
- Supplier reference
- 570701CCB14
