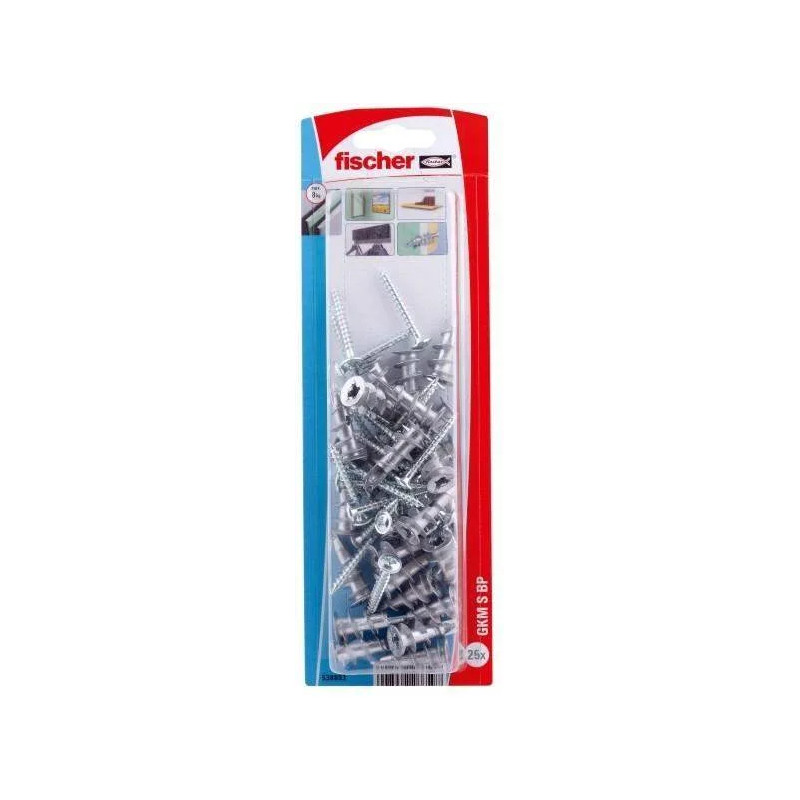

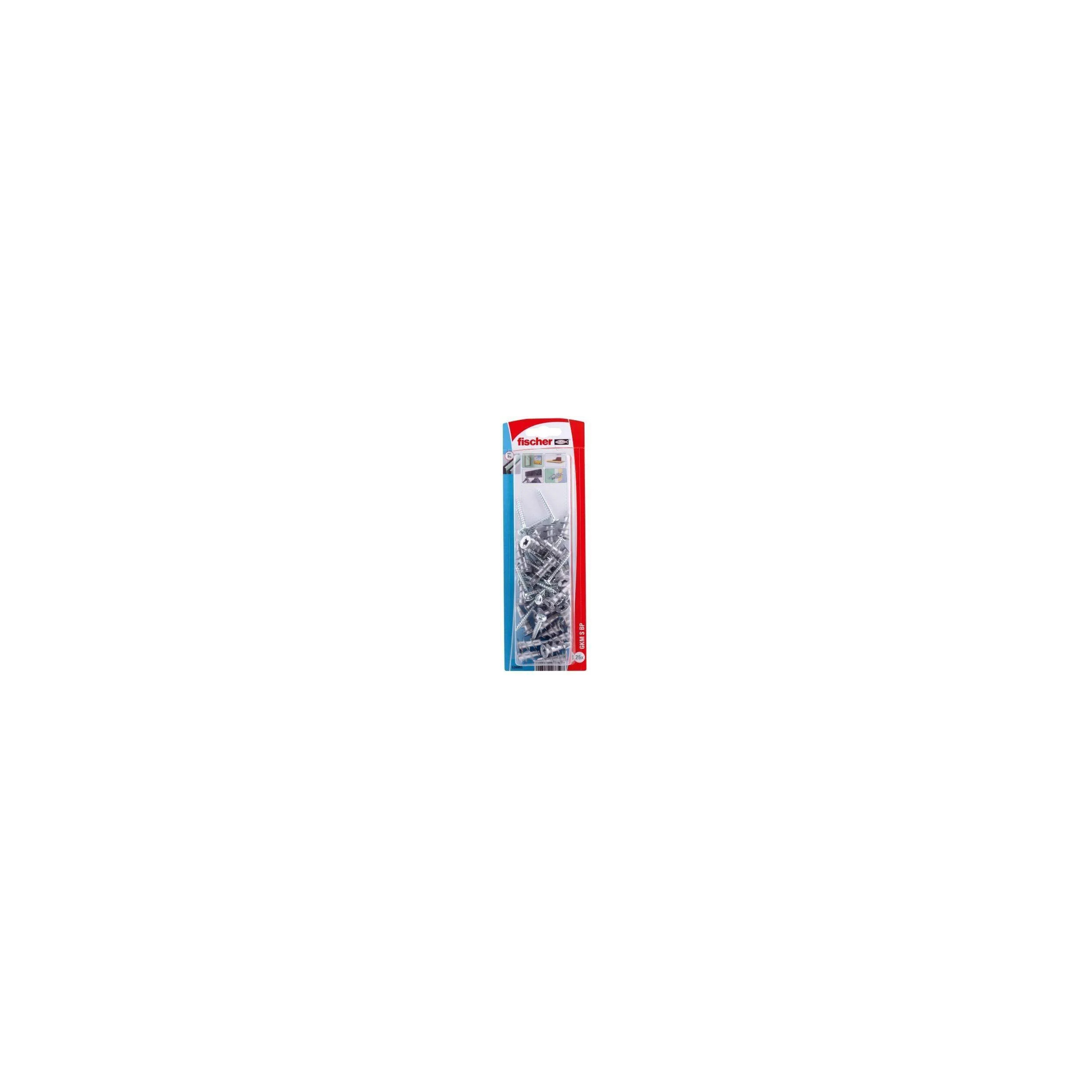

The GKM S K plasterboard plug is made of metal. The dowel is suitable for installation in the wall. The plug is installed flush with the substrate, either manually or with an electric screwdriver. No pre-drilling is required for single-ply gypsum plasterboard. In gypsum plasterboards and double gypsum plasterboards, pre-drilling with a Ø 8 mm drill bit is required. The GKM S K is supplied complete with a countersunk chipboard screw. This makes it universally suitable for the safe and quick fixing of lamps, electrical installations and furniture accessories.
Main features
Reduced length of the pin allows for a small space behind the panel.
Suitable for light objects.
No drilling required in simply coated plasterboard. This saves time.
Complete with corresponding screw.
Suitable for standby installation.
Benefits
Thanks to its material characteristics, GKM can be installed in plasterboard and fibreboard and used with various hooks, screws and pins. This opens up a wide range of applications.
The self-tapping cutting thread of the GKM allows for a secure form-fit. A high load capacity is thus achieved.
The cross recess allows the use of a standard screwdriver or pozidrive 2 bit. No special tools are required.
The short length of the dowel requires only a small space at the back of the plate. This means that the GKM can also be used in the case of undefined plate thicknesses and cavity depths.
Applications
Frames
Lamps
Electrical installations
Furnishing accessories
Materials
Gypsum plasterboards
Plasterboard
Details (building materials, loads, etc.) of the approval, if available, apply
Operation / Assembly
The GKM is suitable for standby installation.
The GKM self-drilling metal dowel is anchored in the plasterboard by means of a form lock.
Flush installation in sheet material. Do not overtighten the dowel. The torque should therefore be reduced when using an electric screwdriver.
Suitable for wood, sheet metal and chipboard screws of Ø 4.0 to 5.0 mm.
In gypsum plasterboards and gypsum plasterboard linings, pre-drill with a Ø 8 mm drill bit.
Not suitable for tiled plasterboard.
Technical data
Ankle length
31
[mm]
min. thickness up to the first load-bearing layer
35
[mm]
Screw dimensions
4,5 x 35
[mm]
footprint
PZ2
