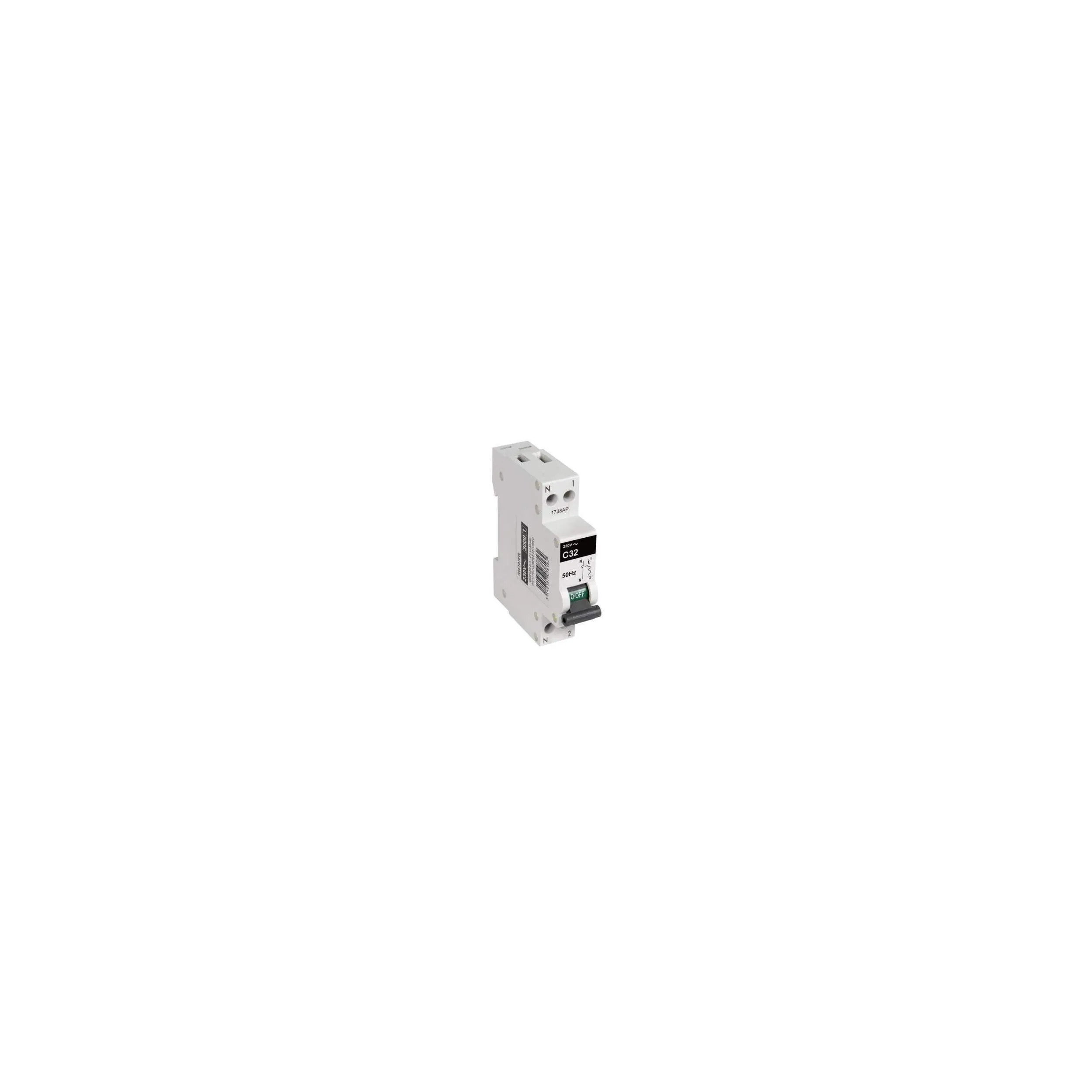

Circuit breaker 3KA phase + neutral 32A DEBFLEX reference 707505.

CIRCUIT BREAKER 3KA DEBFLEX

This 3kA circuit-breaker, from Debflex, is a device for cutting off current in the event of a short-circuit or overcurrent. It has a breaking capacity of 3kA, up to this short-circuit current. As a result, it trips automatically without damaging itself or endangering users. This circuit-breaker protects people and electrical equipment against short-circuits and/or overcurrents. It can also be used to manually break the circuit, thanks to its control lever. This device is required for modular protection of a 32-ampere network.

Product advantages :

• DIN rail mounting
• Magnetothermal release

General description:

• Commercial range: MODULAR PROTECTION
• Function: Circuit breaker
• Full designation: Circuit breaker 3KA Ph+N 32A
• System mounting:DIN rail
• Color: White / Gray

Technical specifications :

• Rated operating voltage Ue : (V) 230V
• Rated current In: (A) 32A
• Rated frequency: (Hz) 50Hz
• Type of current : Alternating
• Total number of poles: 2
• Number of protected poles: 1
• Rated insulation voltage Ui : (V) 400V
• Rated impulse withstand voltage Uimp: (V) 4000V
• Instantaneous trip characteristic C
• Reference calibration temperature: (°C) 30°C
• Rated differential breaking capacity: 3000A
• Rated short-circuit current: 3000A
• Breaking capacity of a single pole: 3000A
• Trigger mode: Magnetothermal
• Energy limitation class (I²t): 1 Grid distance (short-circuit tests): 55mm
• Type of protection against external influences: Closed
• Terminal type: Screw
• Terminal screw diameter 4mm
• Terminal material: Zinc-plated steel
• Wiring diagram: Yes

Environmental features :

• Operating T° (°C) : -5°C to 50°C
• Tightness level: IP20
• Shock resistance: 850°C
• Fire resistance: Yes
• UV resistance: Yes
• Storage T° 25°c

Standards, approvals and contracts :

• Warranty: 2 years
• CE certification: Yes
• NF certification: Yes
• Reference standard: EN 60898
• ROHS : Compliant

Ref: 707505
