Step switch 1 module 16 Ampere single pole 230/240V
€24.48
Tax Included
(20.40 € HT)
Référence DEBFLEX : 707557
Emplacement magasin : B2-G-092
Circuit breaker Phase + Neutral DEBFLEX. Step switch 1 module 16 Ampere single pole 230/240V reference 707557.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)

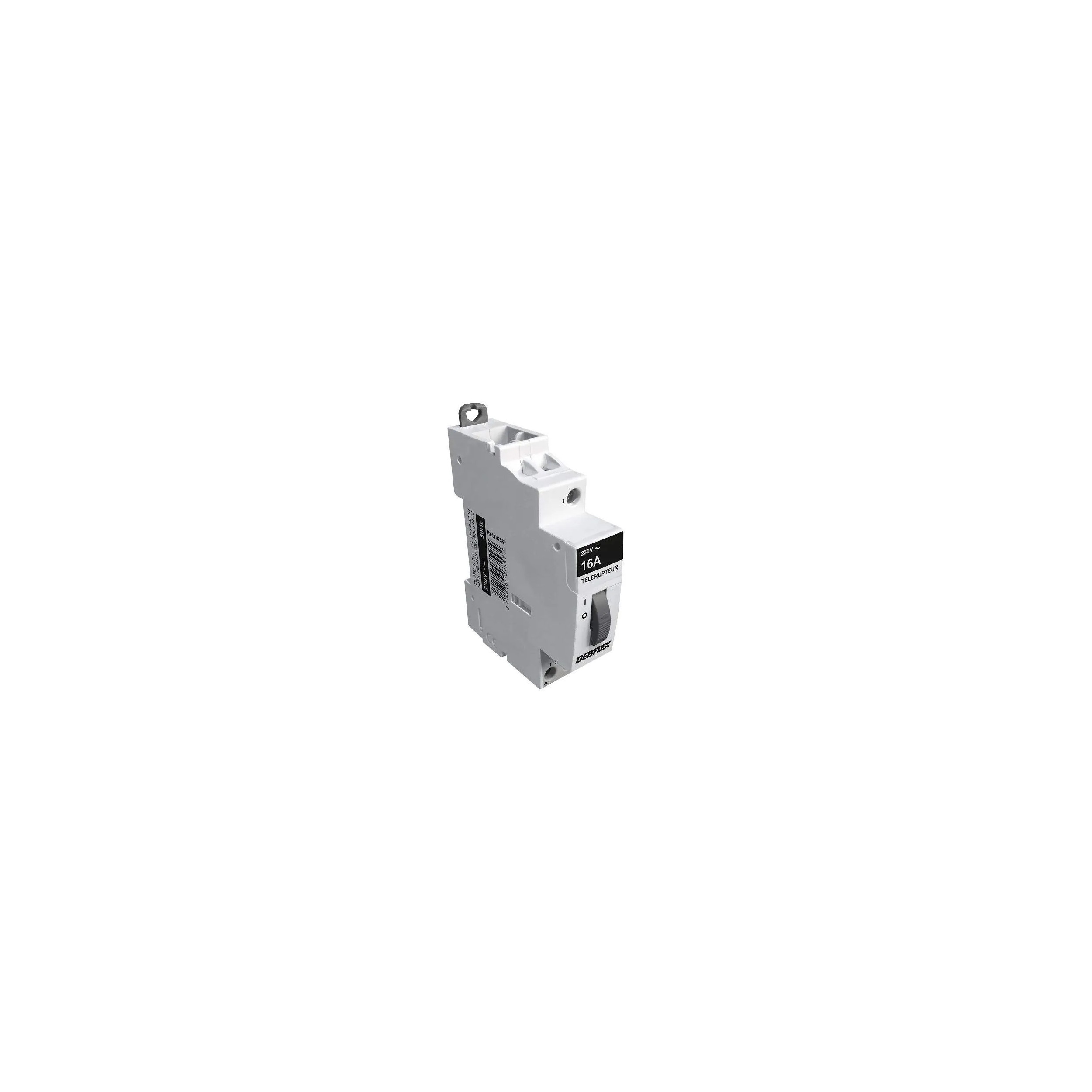

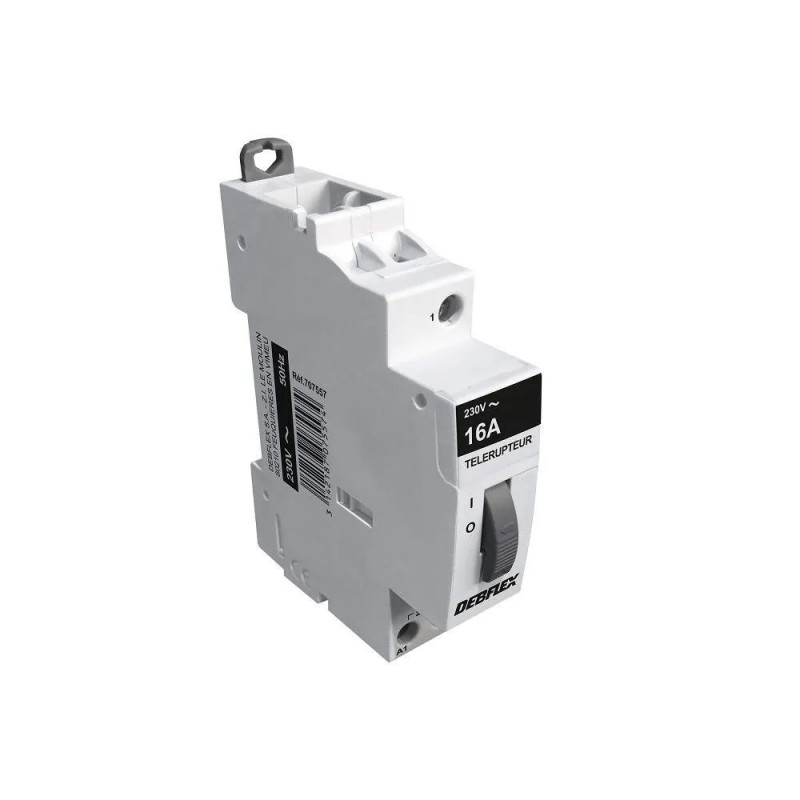

Debflex remote switch 1 module 16A Single pole 230/240 V
General characteristics:
- Commercial range : Modular protection
- Function: Remote switch
- Rail System Mounting: DIN
- Color: White / Grey
Technical specifications
- Rated operating voltage Ue : (V) 230V
- Ratedcurrent In: (A) 16A
- Rated frequency : (Hz) 50Hz
- Type of current : Alternating current
- Rated insulation voltage Ui : (V) 250V
- Reference calibration temperature : (°C) 30°C
- Grid distance (short circuit tests): 55mm
- Type of terminals: Screw
- Diameter of the terminal screws: 5mm
- Material of the terminals: Zinc-plated steel
- Wiring plan : Yes
- Operating temperature (°C) : -5°C to 50°C
- Waterproofing level: IP20
- Shock resistance: 850°C
- Fire resistance : Yes
- UV resistance: Yes
- Storage temperature: 25°c
- Warranty: 2 years
- CE certification : Yes
- NF certification : No
- ROHS : Compliant
Order number Debflex 707557
3 Items
Data sheet
- Weight (kg) :
- 0,1
- Voltage (V) :
- 230
- Amperage (A) :
- 16
- Warranty:
- 2 years
Specific References
- EAN13
- 3142187075574
- EAN-13
- 3142187075574
- Location
- B2-G-092
- Reference to display
- DEBTE707557
- Supplier reference
- 707557
