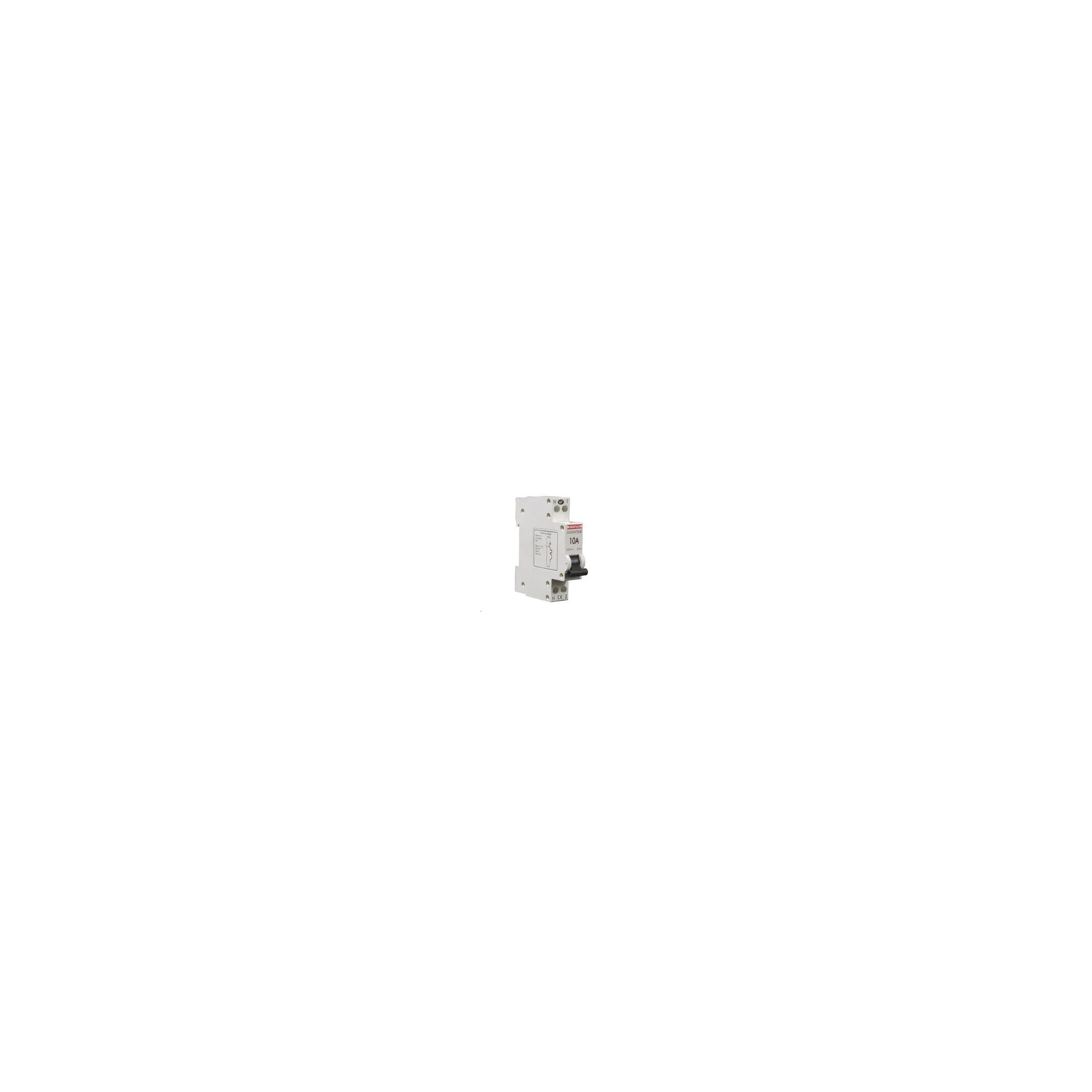

Circuit breaker 3kA PH+ N10A

General description

• Commercial range: MODULAR PROTECTION
• Function: Circuit breaker
• Full designation: Circuit breaker Ph+N 10A
• Rail System Mounting: DIN
• Color: White

Technical specifications

• Rated operating voltage Ue : (V) 230V
• Ratedcurrent In: (A) 10A
• Rated frequency : (Hz) 50Hz
• Type of current : Alternating current
• Total number of poles: 2
• Number of protected poles: 1
• Rated insulation voltage Ui : (V) 400V
• Rated impulse withstand voltage Uimp: (V) 4000V
• Instantaneous trip characteristic C
• Reference calibration temperature : (°C) 30°C
• Rated differential breaking capacity: 3000A
• Rated short circuitcurrent: 3000A
• Breaking capacity of a single pole: 3000A
• Triggering mode: Magnetothermal
• Energy limitation class (I²t): 1 Grid distance (short circuit test): 55mm
• Type of protection against external influences: Closed
• Type of terminals: Screw
• Diameter of the terminal screws 4mm
• Material of the terminals: Zinc-plated steel
• Wiring plan : Yes

Environmental characteristics

• Operating temperature (°C) : -5°C to 50°C
• Waterproofing level: IP20
• Shock resistance: 850°C
• Fire resistance : Yes
• UV resistance: Yes
• Storage temperature 25°c

Standards, approvals and contracts

• Warranty: 2 years
• CE certification : Yes
• NF certification : Yes
• Reference standard: EN 60898
• ROHS : Compliant
