DuoHM 5x55 metal wall plug with cylindrical screw head, PZ socket, 15 pieces FISCHER item number 572918

- Product type: metal plasterboard plug with screw for hollow bodies.

- Description:

The DuoHM hollow body plug is suitable for all plate thicknesses from 9.5 to 30 mm with a single length.

Thanks to its unique combination of nylon and metal, DuoHM allows high loads and maximum flexibility in all sheet-metal building materials.

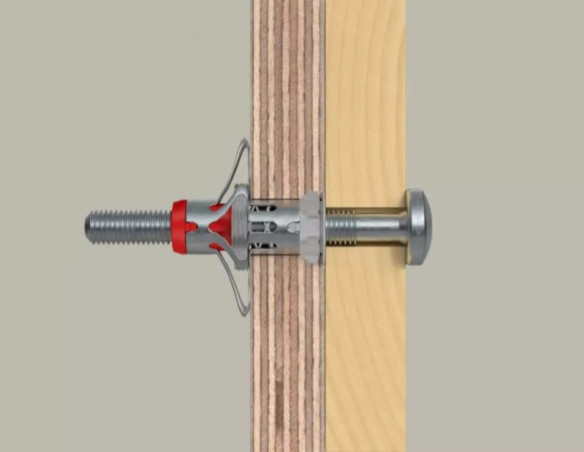

The metal ring folds behind the building material and presses against the back of the panel, while the plastic part knots into the panel.

DuoHM can be installed quickly and easily using a cordless screwdriver, without the need for additional assembly tools.

This reduces installation time by up to 50% compared with conventional plugs.

Thanks to the plug's metric thread, the fixed object can be screwed in and out several times.

In addition to the screw supplied, the DuoHM can also be used with other metric screws.

The nylon anti-rotation wings protect the surface of the building material from damage, thus preventing damage to the plate.

The fischer DuoHM hollow-body fastener is suitable for fastening lighting, pictures and light shelving indoors.

Advantages :

DuoHM can be installed quickly and easily using a screwdriver and without pliers. Installation time is reduced by 50% compared with standard panel anchors.

Two-material technology guarantees high loads. The metal part expands at the back of the plate, while the nylon forms a knot in the drill hole.

A single length of plug is suitable for all plate thicknesses from 9.5 to 30 mm for simplicity.

Thanks to the internal metric thread, the screw can be unscrewed and re-screwed several times if the object to be fastened needs to be modified.

Anti-rotation wings ensure correct installation of the plug and prevent damage to the plate.

The reduced collar allows discreet fixing behind the object to be fastened.

Applications :

- Frames.

- TV stands.

- Lamps.

- Shelves.

- Curtain poles.

- Mirrors.

Materials :

- Plasterboard.

- OSB panels.

- Chipboard.

- Plywood panels.

- Parpaing.

- Concrete slabs.

Technical data:

- Nominal drill diameter: 10 mm.

- Minimum drilling depth: 55 mm.

- Plug length: 55 mm.

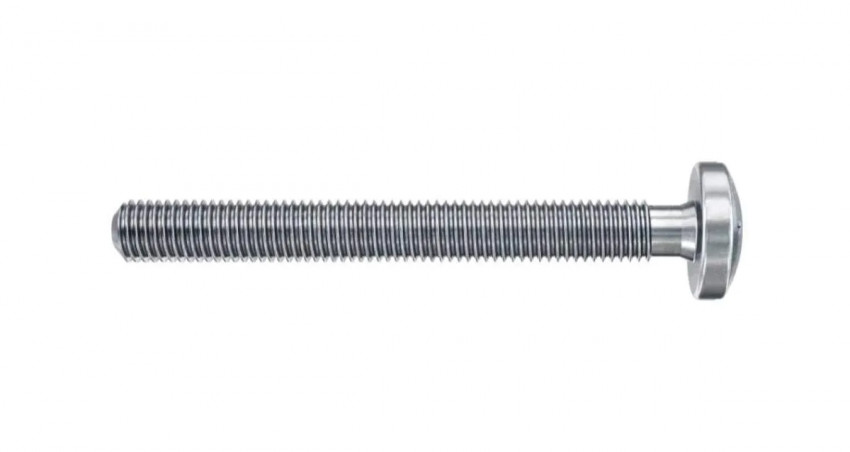

- Screw dimensions: 5,0 x 55 mm.

- Epaisseur de plaque : 9.5 - 30 mm.

- Footprint: PZ2.

- Max. workpiece thickness: 10 mm.

- Min. cavity dimension: 45 mm.

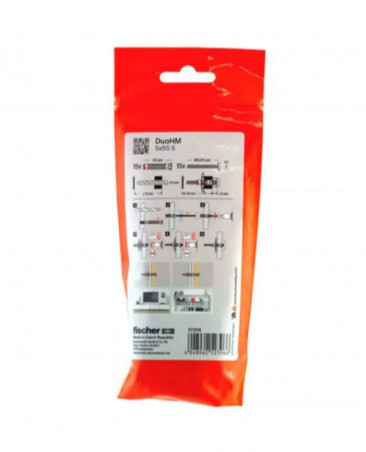

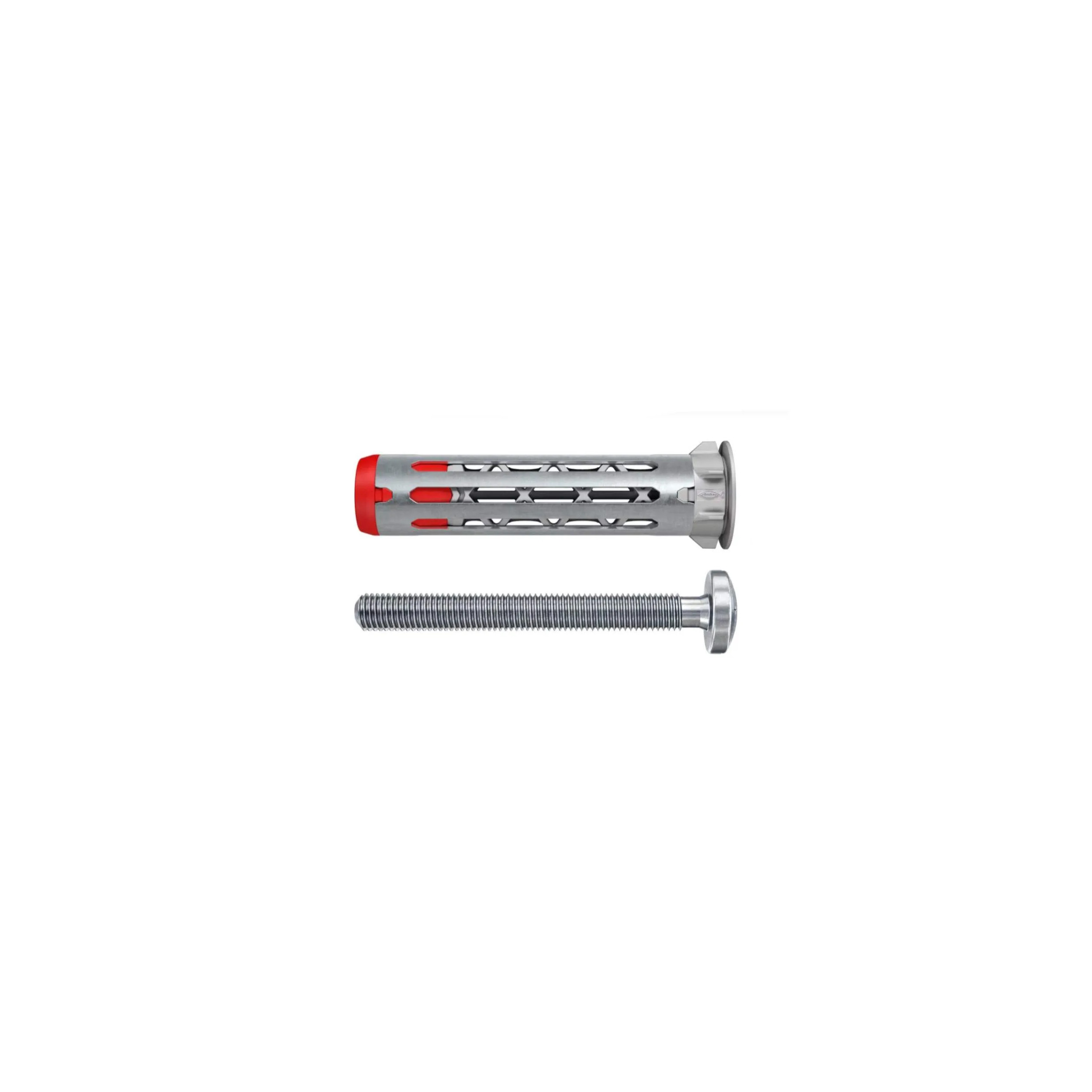

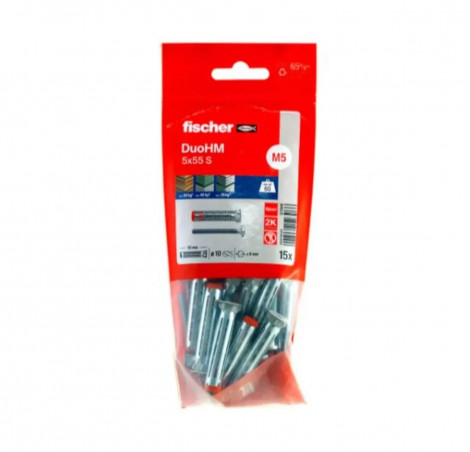

- Contents: 15 DuoHM 5x55 plugs + 15 M5x55 screws.

- Quantity: 15 pcs.

- Supplier: FISCHER.

- Reference : 572918.
